XXT-TSTR-1018-DS.8

Name: XXT-TSTR-1018-DS.8
Brand: Q-Mark Manufacturing Inc.
Price: 310.0 USD
Availability: InStock

$310.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

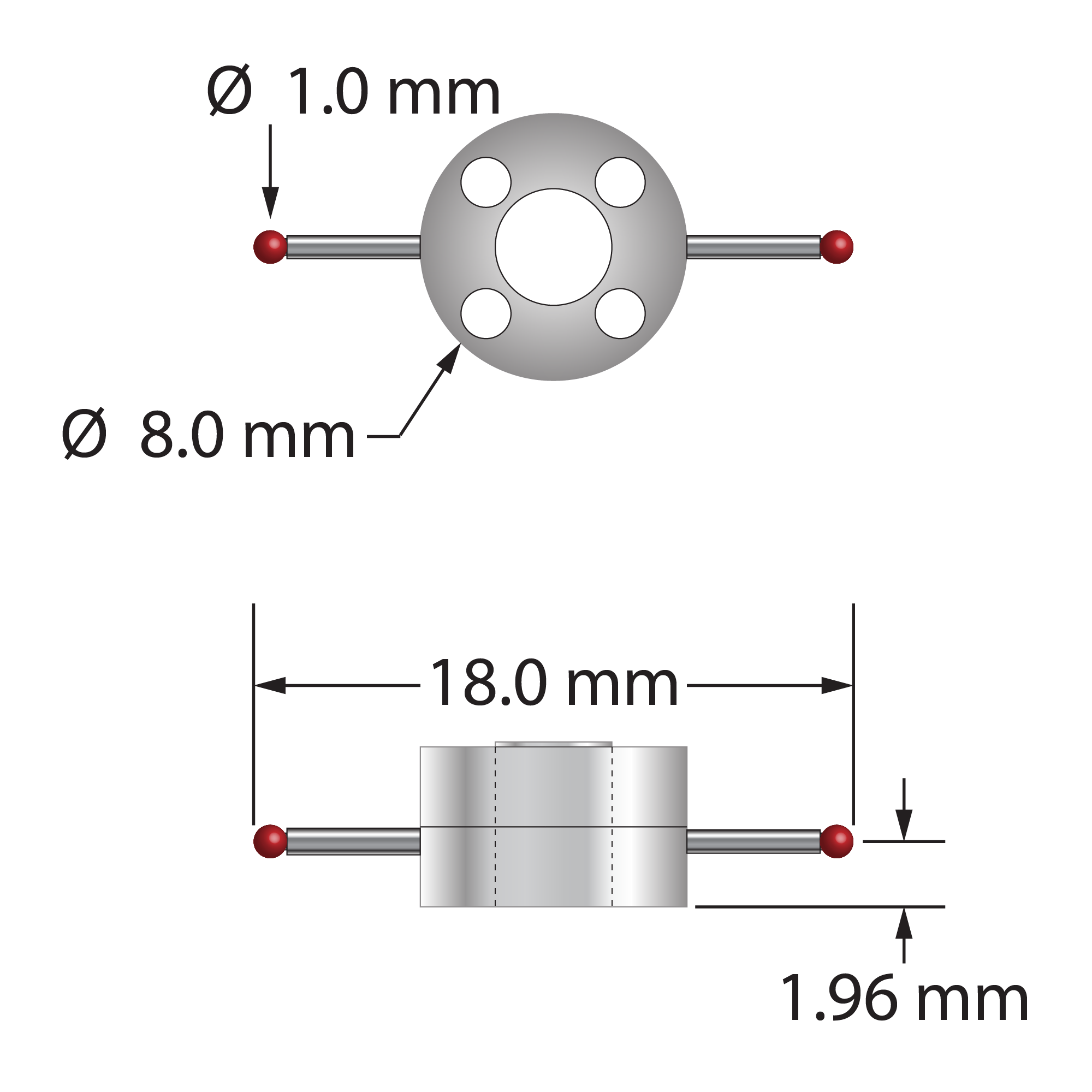

Two-way star stylus with 1.0 mm diameter ruby balls, carbide stems, and two-piece clamping titanium hub. Individual styli can be replaced or adjusted by unscrewing the two-piece hub. Star stylus weight is 0.94 gram. Compare to Zeiss 626103-0100-218.

Dimensions

ball diameter: 1.0

length: 18.0

length 2: 5.0

stem diameter: 0.8

Materials

ball material: Ruby

body material: Titanium

stem material: Carbide
