XXT-TSTR-0618

Name: XXT-TSTR-0618
Brand: Q-Mark Manufacturing Inc
Price: 345.0 USD
Availability: InStock

$345.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

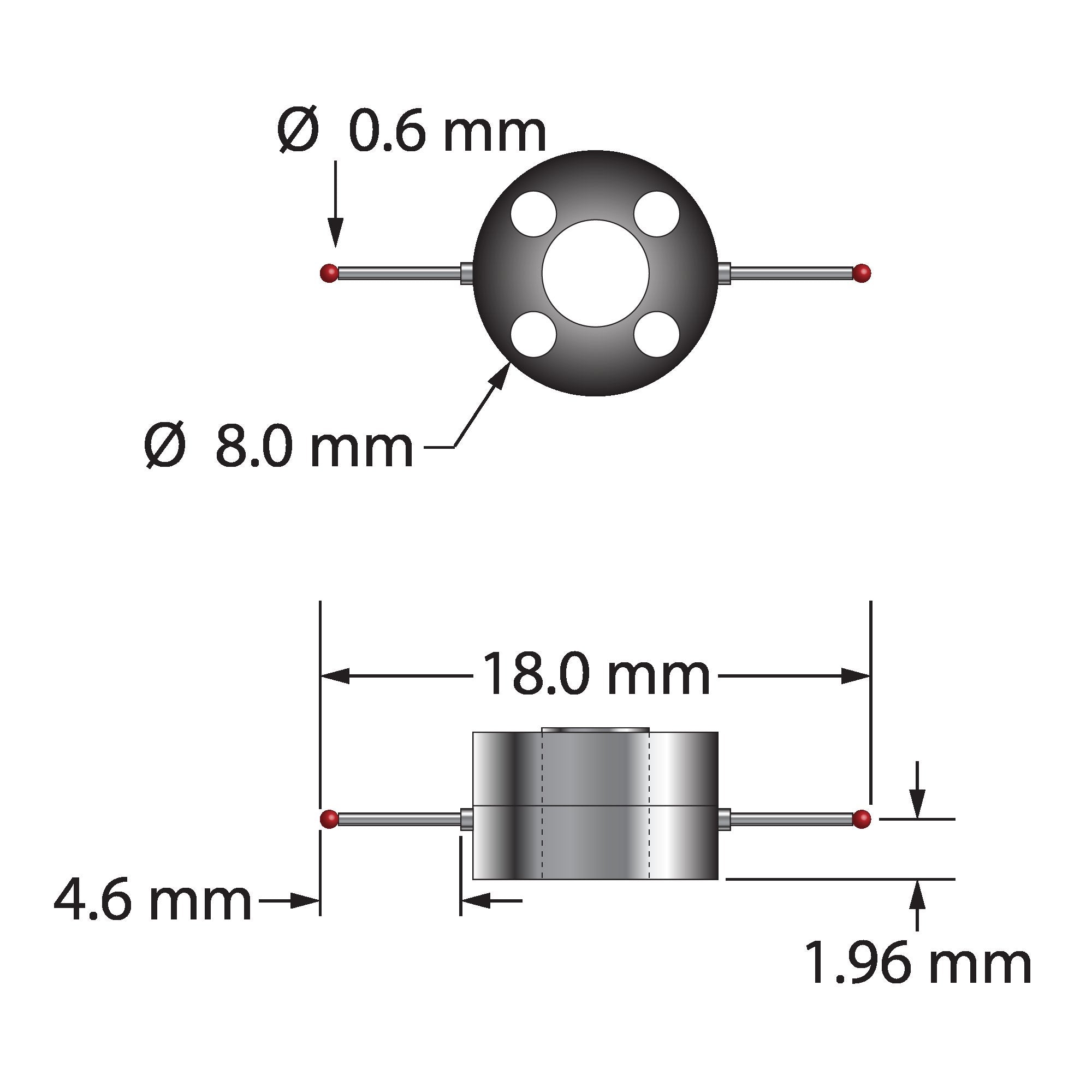

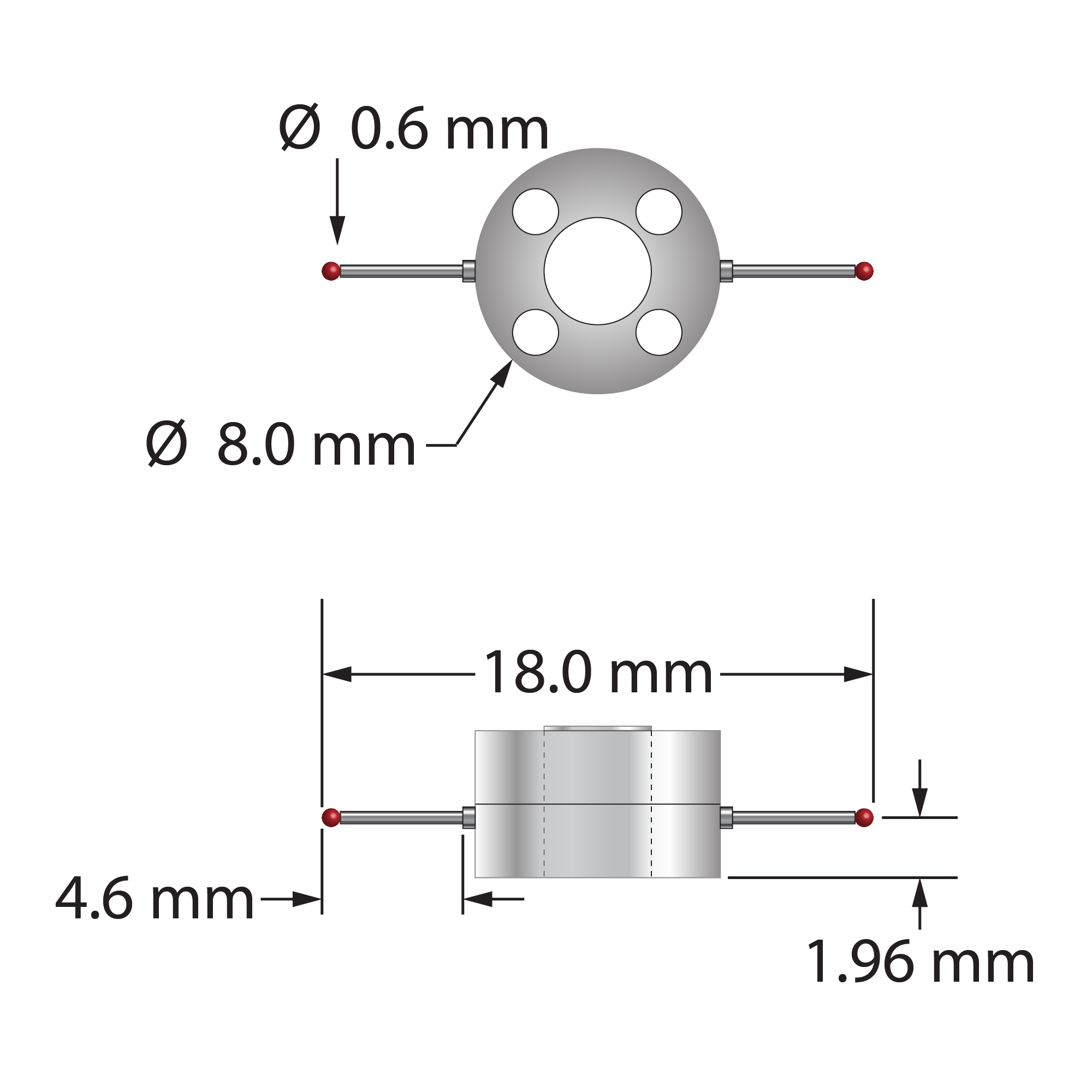

Two-way star stylus with 0.6 mm diameter ruby balls, stepped carbide stems, and two-piece clamping titanium hub. Minor stem diameter is 0.4 mm, major diameter is 1.0 mm. Individual styli can be replaced or adjusted by unscrewing the two-piece hub. Star stylus weight is 0.94 gram. Compare to Zeiss 626103-0060-218.

Dimensions

ball diameter: 0.6

length: 18.0

length 2: 5.0

length 3: 4.6

stem diameter: 1.0

stem step diameter: 0.4

Materials

ball material: Ruby

body material: Titanium

stem material: Carbide
