XXT-STR-30108

Name: XXT-STR-30108
Brand: Q-Mark Manufacturing Inc
SKU: XXT-STR-30108
Price: 550.0 USD
Availability: InStock

$550.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

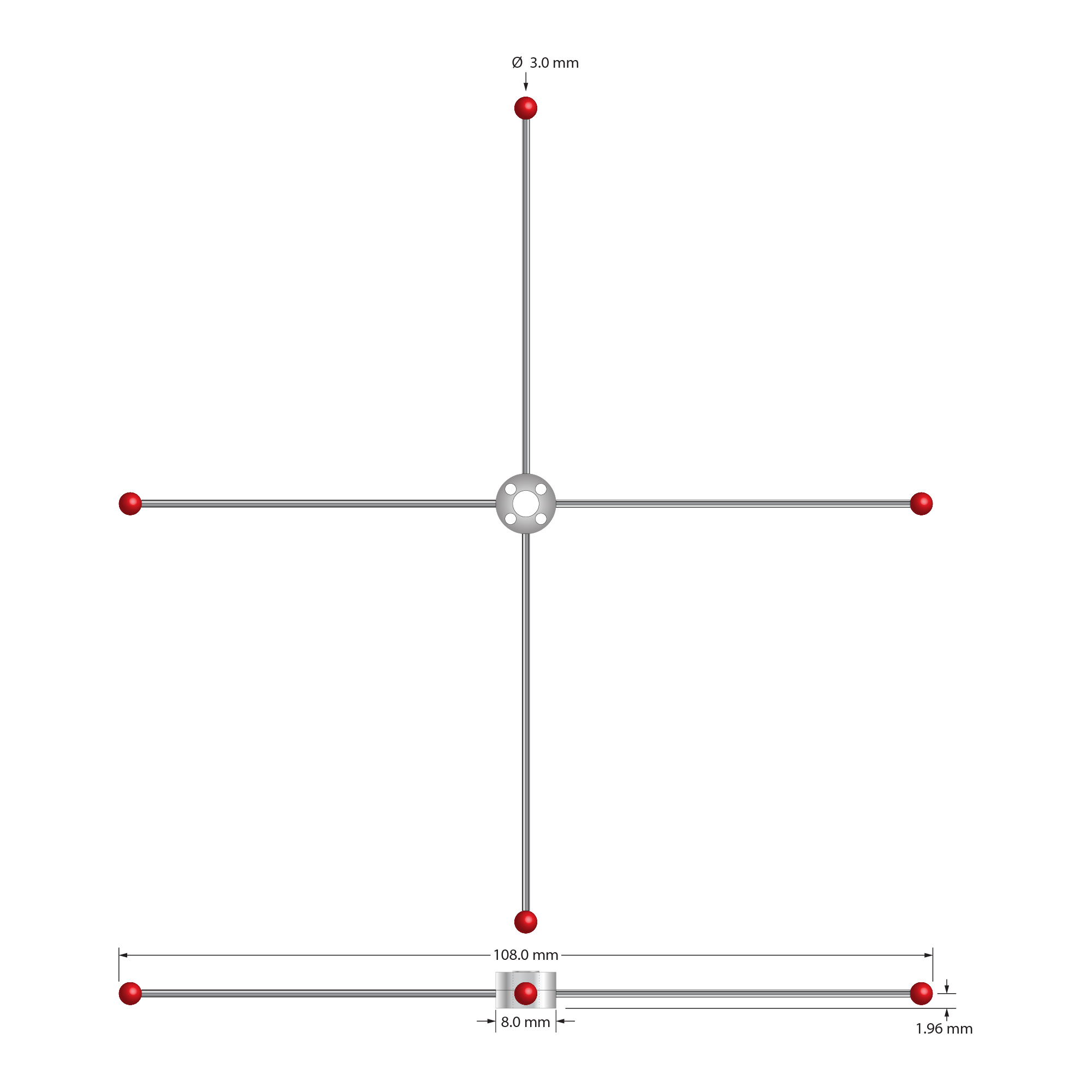

Four-way star stylus with 3.0 mm diameter ruby balls, 1.0 mm diameter carbide stems, and two-piece clamping titanium hub. Star stylus weight is 4.37 grams. Compare to Zeiss 626103-0300-108.

Q-Mark can repair damaged styli for a lot less than the cost of a new star stylus. Please email sales@cmms.com for more information.

Dimensions

ball diameter: 3.0

body diameter: 8.0

length 1: 108.0

stem diameter: 1.0

Materials

ball material: Ruby

body material: Titanium

stem material: Carbide
