XXT-STR-0625
XXT-STR-0625

XXT-STR-0625

$450.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
 {% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

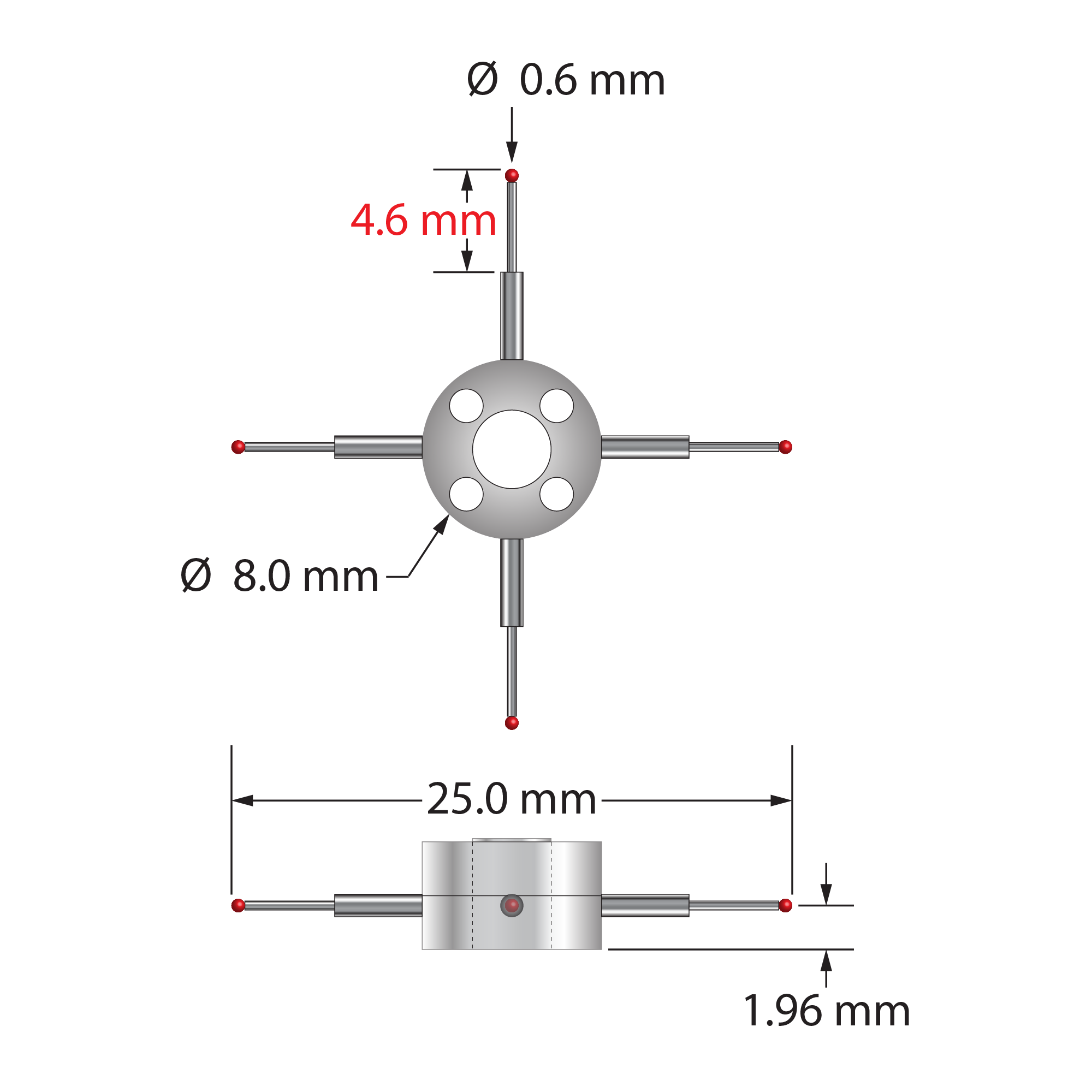

Four-way star stylus with 0.6 mm diameter ruby balls, stepped carbide stems, and two-piece clamping titanium hub.  Major stem diameter is 1.0 mm, minor diameter is 0.43 mm.  Star stylus weight is 1.22 grams.  Compare to Zeiss 626103-0060-125.

Q-Mark will repair damaged styli for far less than the cost of a new star stylus.  Please email sales@cmms.com for more information.

Dimensions

ball diameter: 0.6
length 1: 25.0
length 2: 8.5
length 3: 4.0
stem diameter: 1.0
stem step diameter: 0.4

Materials

ball material: Ruby
body material: Titanium
stem material: Carbide
