XXT-STR-0516

$460.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
{% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

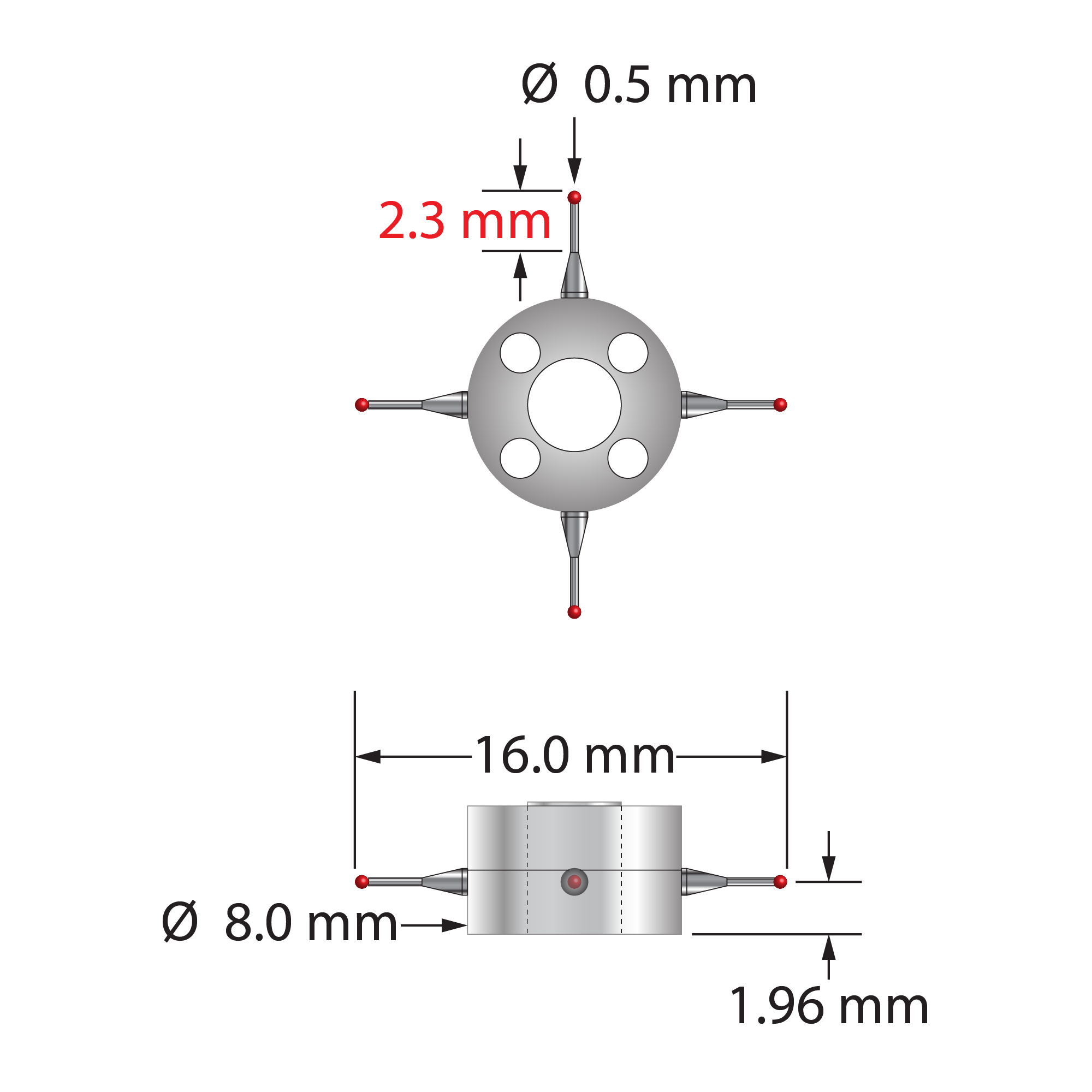

Four-way star stylus with 0.5 mm diameter ruby balls, carbide stems, and two-piece clamping titanium hub. Star stylus weight is 0.89 gram. Compare to Zeiss 626103-0050-106. Q-Mark will repair damaged styli for far less than the cost of a new star stylus. Please email sales@cmms.com for more information.

Dimensions

ball diameter: 0.5
length 1: 16.0
length 2: 4.0
length 3: 2.3
stem diameter: 1.0
stem step diameter: 0.3

Materials

ball material: Ruby
body material: Titanium
stem material: Carbide
