Single-side star stylus with 0.8 mm diameter ruby ball, stepped carbide stem, and two-piece clamping titanium hub. Minor stem diameter is 0.6 mm, major diameter is 1.0 mm. Assembled stylus weight is 0.89 gram. Compare to Zeiss 626103-0080-418.
Single-side star stylus with 0.8 mm diameter ruby ball, stepped carbide stem, and two-piece clamping titanium hub. Minor stem diameter is 0.6 mm, major diameter is 1.0 mm. Assembled stylus weight is 0.89 gram. Compare to Zeiss 626103-0080-418.

XXT-LSTR-0809

$245.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
 {% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}
Single-side star stylus with 0.8 mm diameter ruby ball, stepped carbide stem, and two-piece clamping titanium hub. Minor stem diameter is 0.6 mm, major diameter is 1.0 mm. Assembled stylus weight is 0.89 gram. Compare to Zeiss 626103-0080-418. Q-Mark can repair damaged styli for a lot less than the cost of a new star stylus. Please email sales@cmms.com for more information.

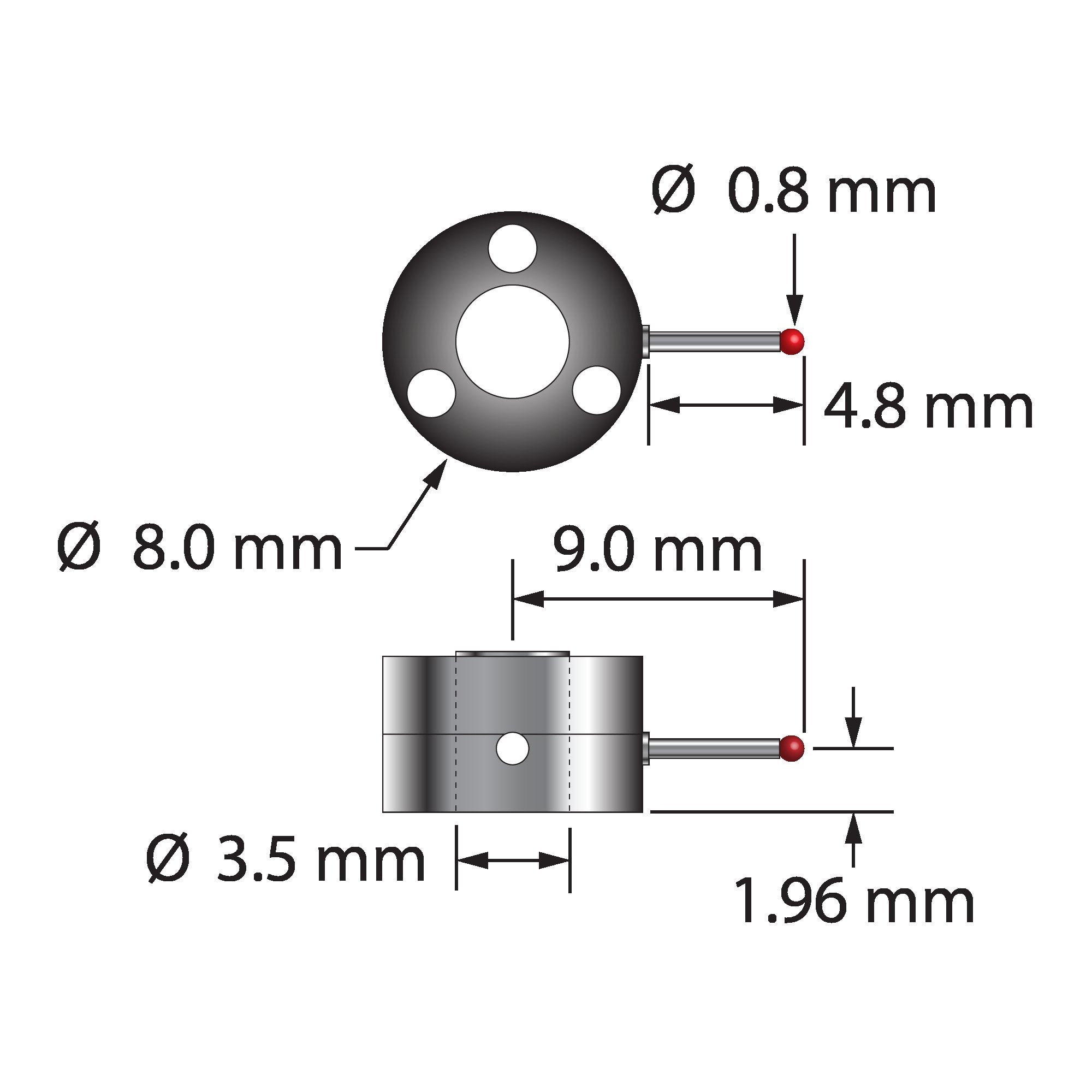

Dimensions

ball diameter: 0.8
body diameter: 8.0
length 1: 5.0
length 2: 4.8
stem diameter: 1.0
stem step diameter: 0.6

Materials

ball material: Ruby
body material: Titanium
