Single-side star stylus with 0.6 mm diameter ruby ball, stepped carbide stem, and two-piece clamping titanium hub. Minor stem diameter is 0.4 mm, major diameter is 1.0 mm. Assembled stylus weight is 0.92 gram. Compare to Zeiss 626103-0060-425.

XXT-LSTR-0612.5

Name: XXT-LSTR-0612.5
Brand: Q-Mark Manufacturing Inc.
Price: 245.0 USD
Availability: InStock

$245.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

Single-side star stylus with 0.6 mm diameter ruby ball, stepped carbide stem, and two-piece clamping titanium hub. Minor stem diameter is 0.4 mm, major diameter is 1.0 mm. Assembled stylus weight is 0.92 gram. Compare to Zeiss 626103-0060-425. Q-Mark can repair damaged styli for a lot less than the cost of a new star stylus. Please email sales@cmms.com for more information.

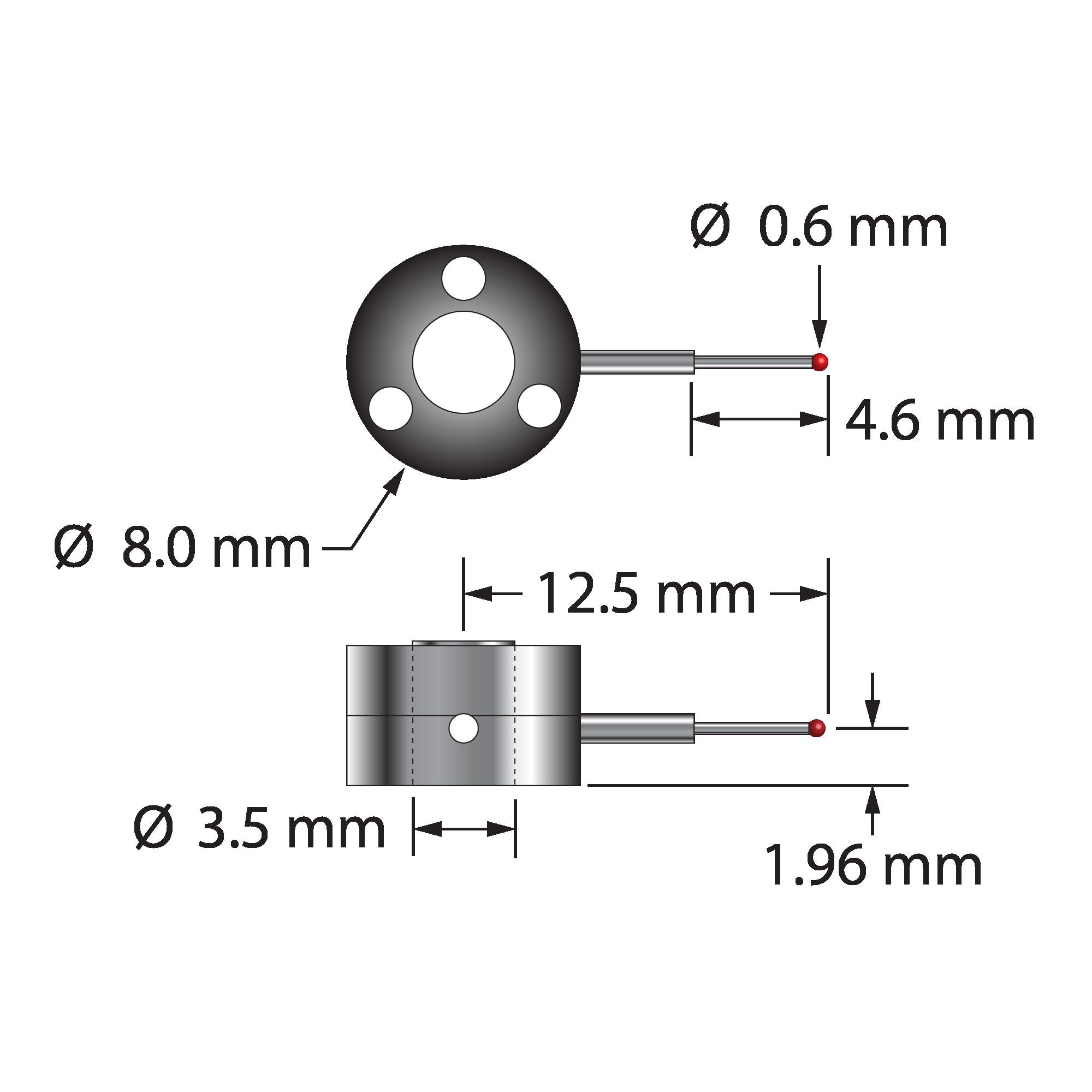

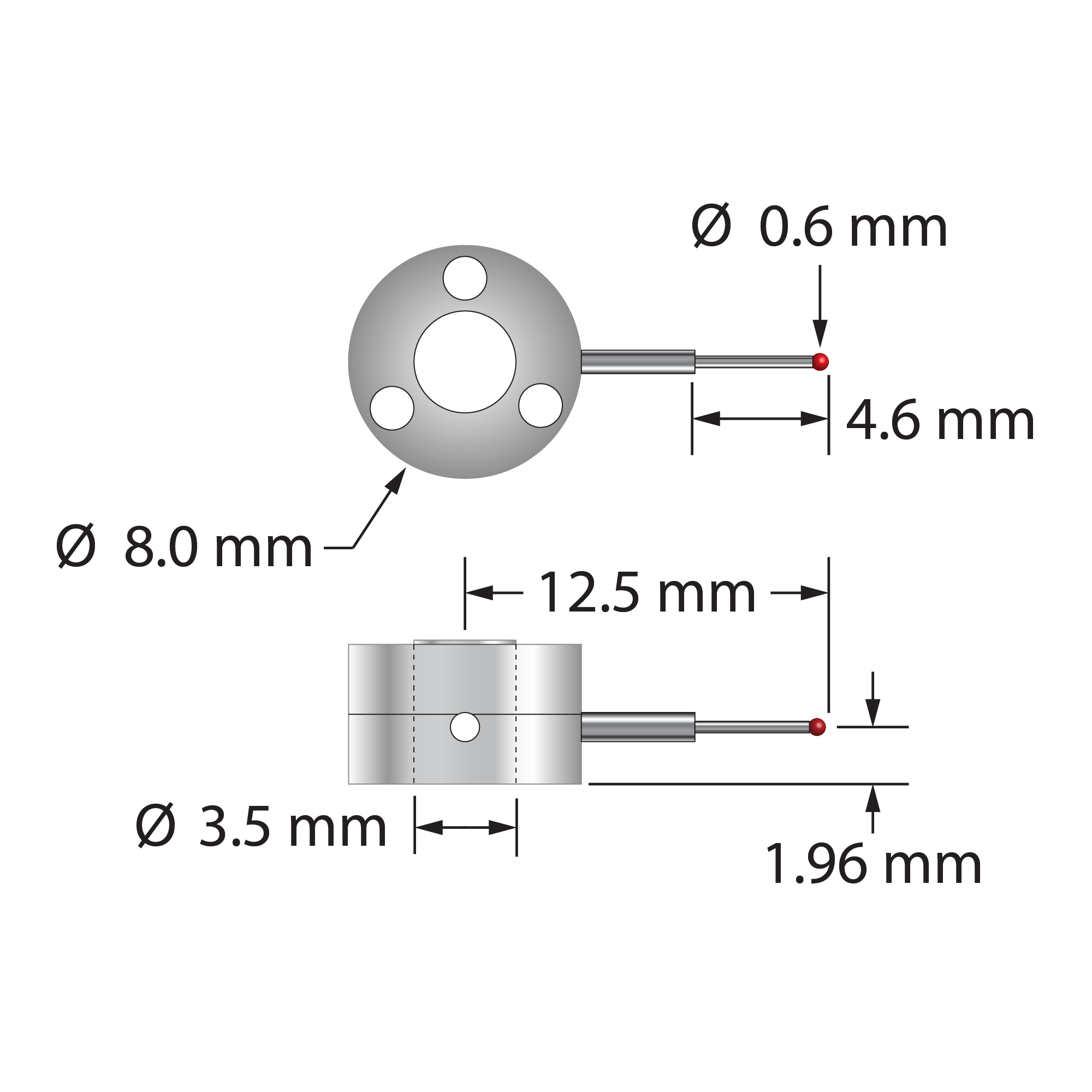

Dimensions

ball diameter: 0.6

body diameter: 8.0

length 1: 8.5

length 2: 4.6

stem diameter: 1.0

stem step diameter: 0.4

Materials

ball material: Ruby

body material: Titanium
