XXT-3040-L-SN

$170.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
{% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}
M3 XXT stylus for 1/4 star probe or L-shaped probe. 3.0 mm diameter silicon nitride ball with titanium base and 2.0 mm diameter Therm-X carbon fiber stem. A clamping screw or clamping stylus is placed through the 3.5 mm hole in the titanium base. Length is 40.0 mm. Weight is 0.82 grams. Compare to Zeiss 626103-0312-040.

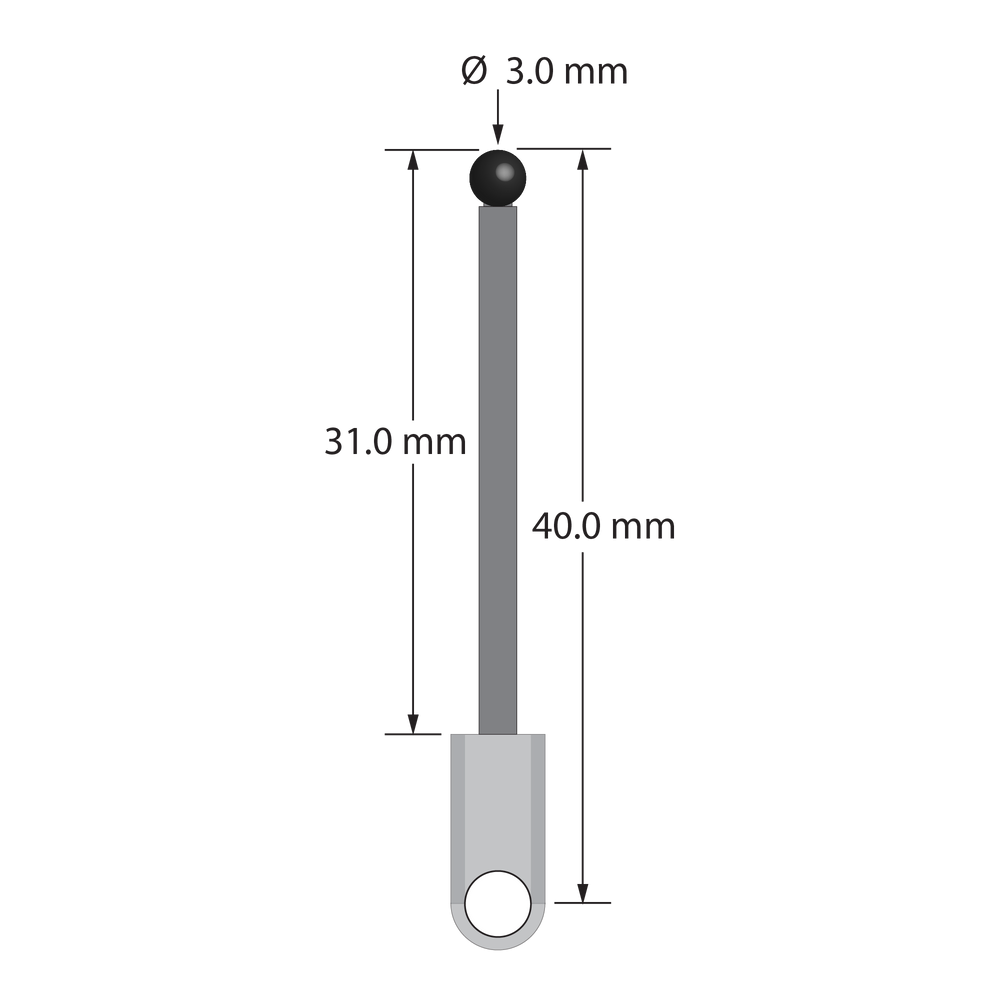

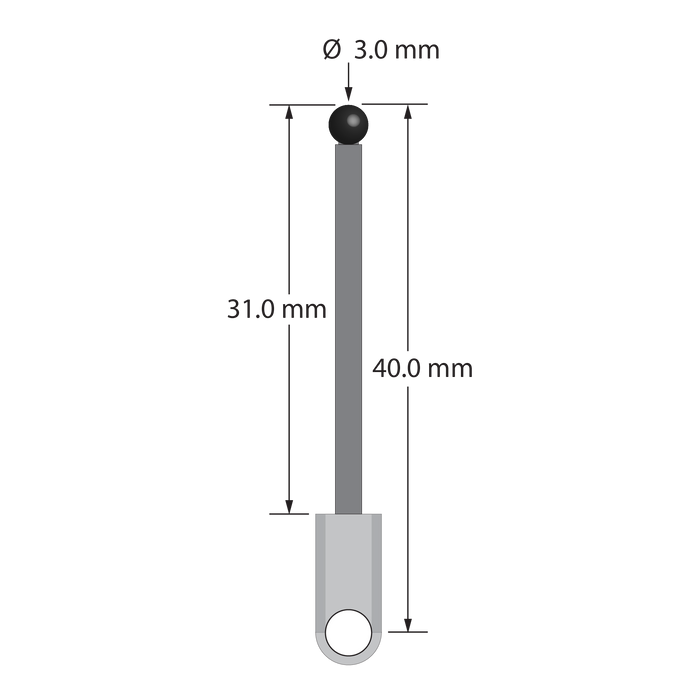

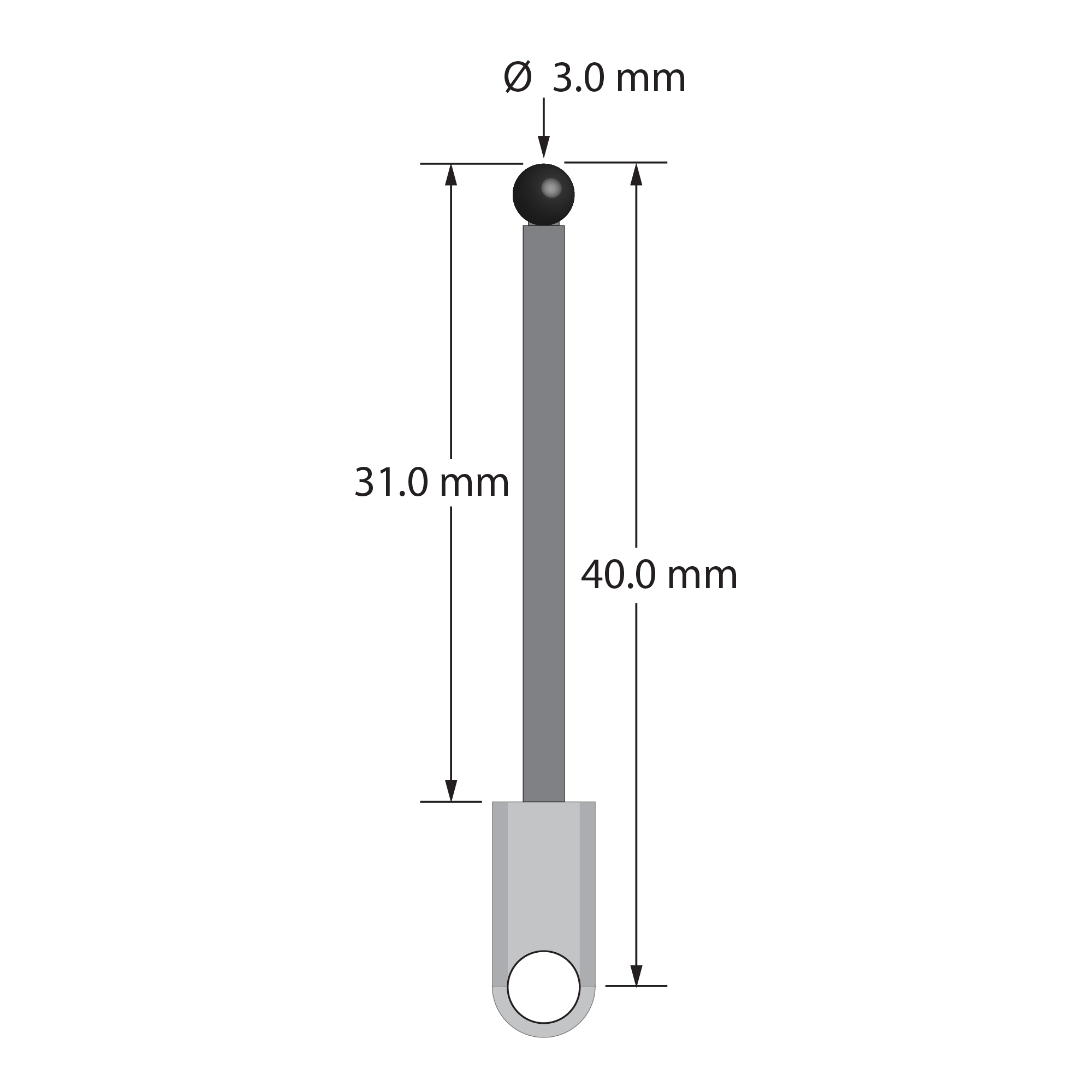

Dimensions

ball diameter: 3.0
length 1: 40.0
length 2: 31.0
stem diameter: 2.0

Materials

ball material: Silicon Nitride
body material: Titanium
stem material: Carbon Fiber
