XXT-3030-180-SN

Name: XXT-3030-180-SN
Brand: Q-Mark Manufacturing Inc.
Price: 315.0 USD
Availability: InStock

$315.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

XXT stylus, 180 degrees. Titanium center fitting with 3.5 mm through hole. Two 2.0 mm diameter Therm-X carbon fiber stems with 3.0 mm diameter silicon nitride balls. Used with a clamping screw or clamping stylus to create a T-shaped probe. Stylus weight is 1.44 grams. Compare to Zeiss 626103-0314-030.

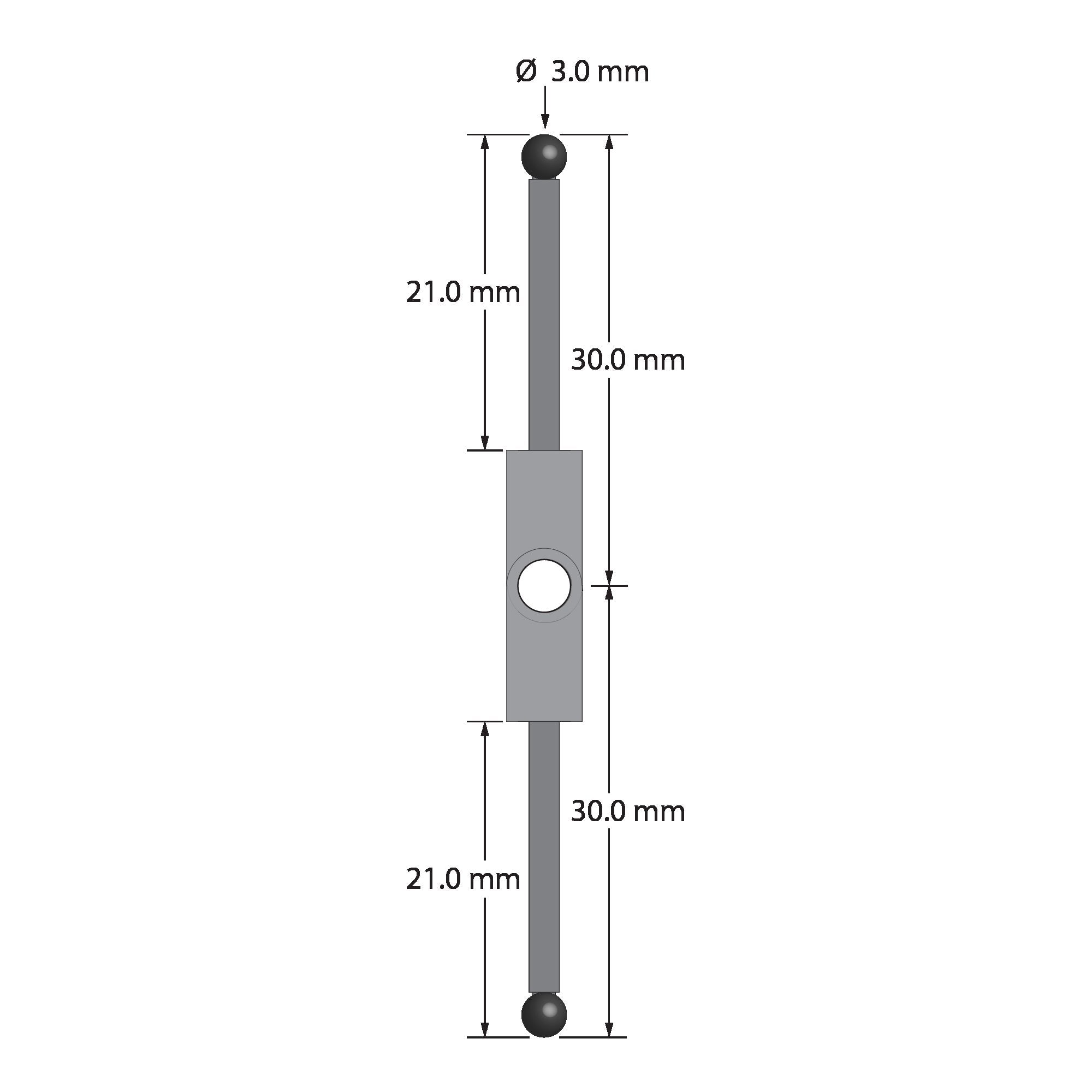

Dimensions

ball diameter: 3.0

length 1: 30.0

length 2: 21.0

stem diameter: 2.0

Materials

ball material: Silicon Nitride

body material: Titanium

stem material: Carbon Fiber
