XXT-3020-L-SN

Name: XXT-3020-L-SN
Brand: Q-Mark Manufacturing Inc.
Price: 185.0 USD
Availability: InStock

$185.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

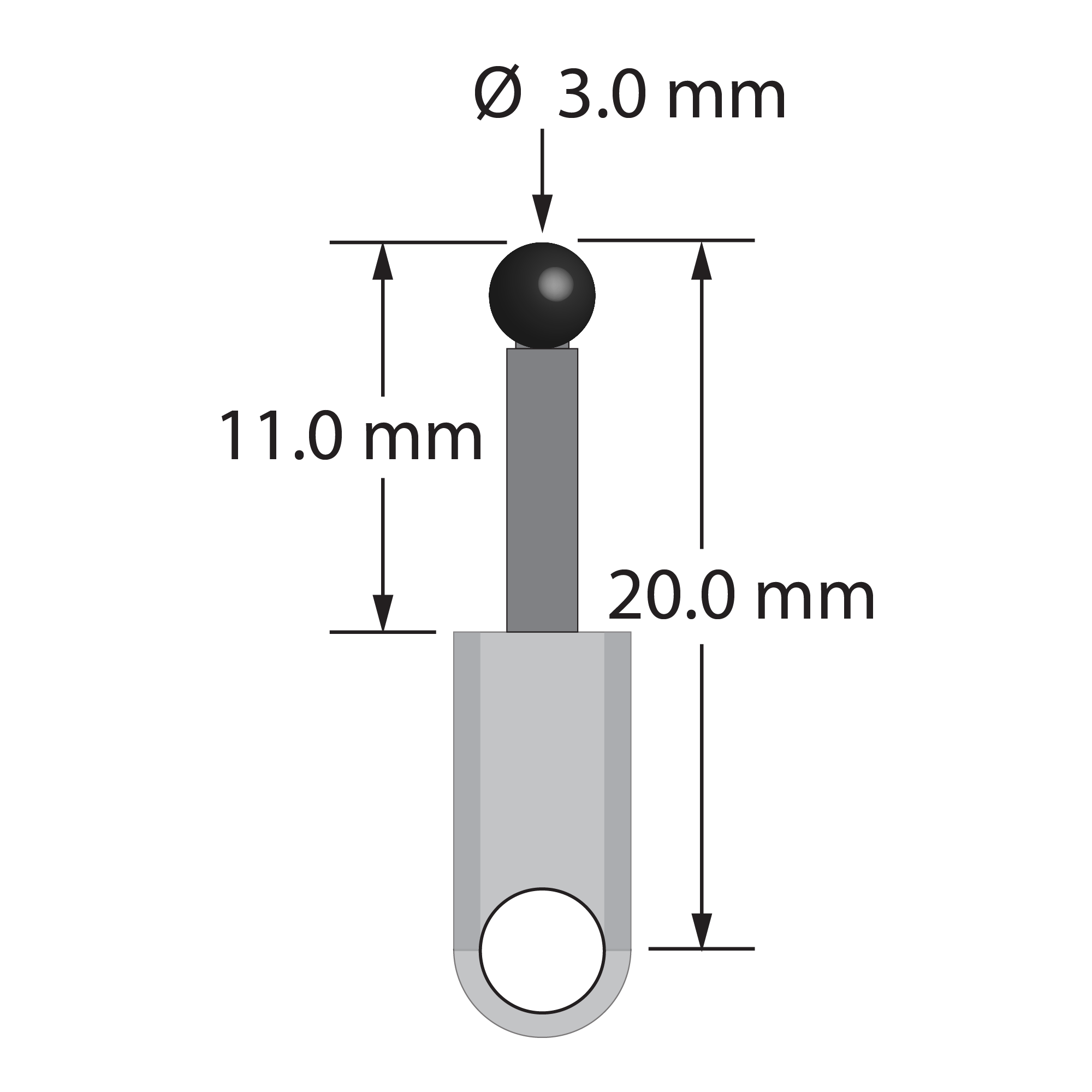

M3 XXT stylus for 1/4 star probe or L-shaped probe. 3.0 mm diameter silicon nitride ball with titanium base and 2.0 mm diameter Therm-X carbon fiber stem. A clamping screw or clamping stylus is placed through the 3.5 mm hole in the titanium base. Length is 20.0 mm. Weight is 0.72 grams. Compare to Zeiss 626103-0312-020.

Dimensions

ball diameter: 3.0

length 1: 20.0

length 2: 11.0

stem diameter: 2.0

Materials

ball material: Silicon Nitride

body material: Titanium

stem material: Carbon Fiber
