XXT-3020-L

Name: XXT-3020-L
Brand: Q-Mark Manufacturing Inc.
Price: 160.0 USD
Availability: InStock

$160.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

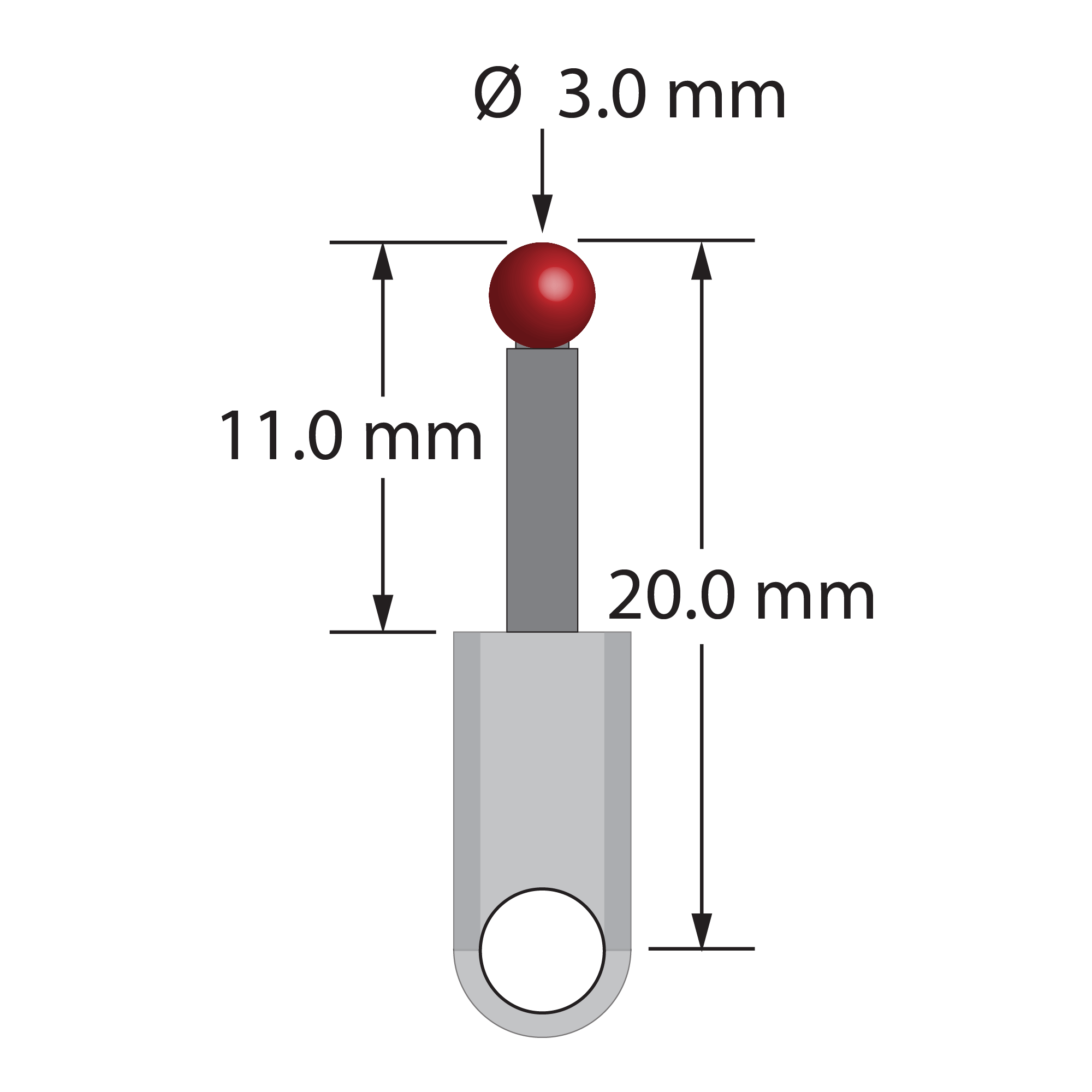

M3 XXT stylus for 1/4 star probe or L-shaped probe. 3.0 mm diameter ruby ball with titanium base and 2.0 mm diameter Therm-X carbon fiber stem. A clamping screw or clamping stylus is placed through the 3.5 mm hole in the titanium base. Length is 20.0 mm. Weight is 0.72 grams. Compare to Zeiss 626103-0302-020.

Dimensions

ball diameter: 3.0

length 1: 20.0

length 2: 11.0

stem diameter: 2.0

Materials

ball material: Ruby

body material: Titanium

stem material: Carbon Fiber
