XXT-3020-180-SN

$295.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
{% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

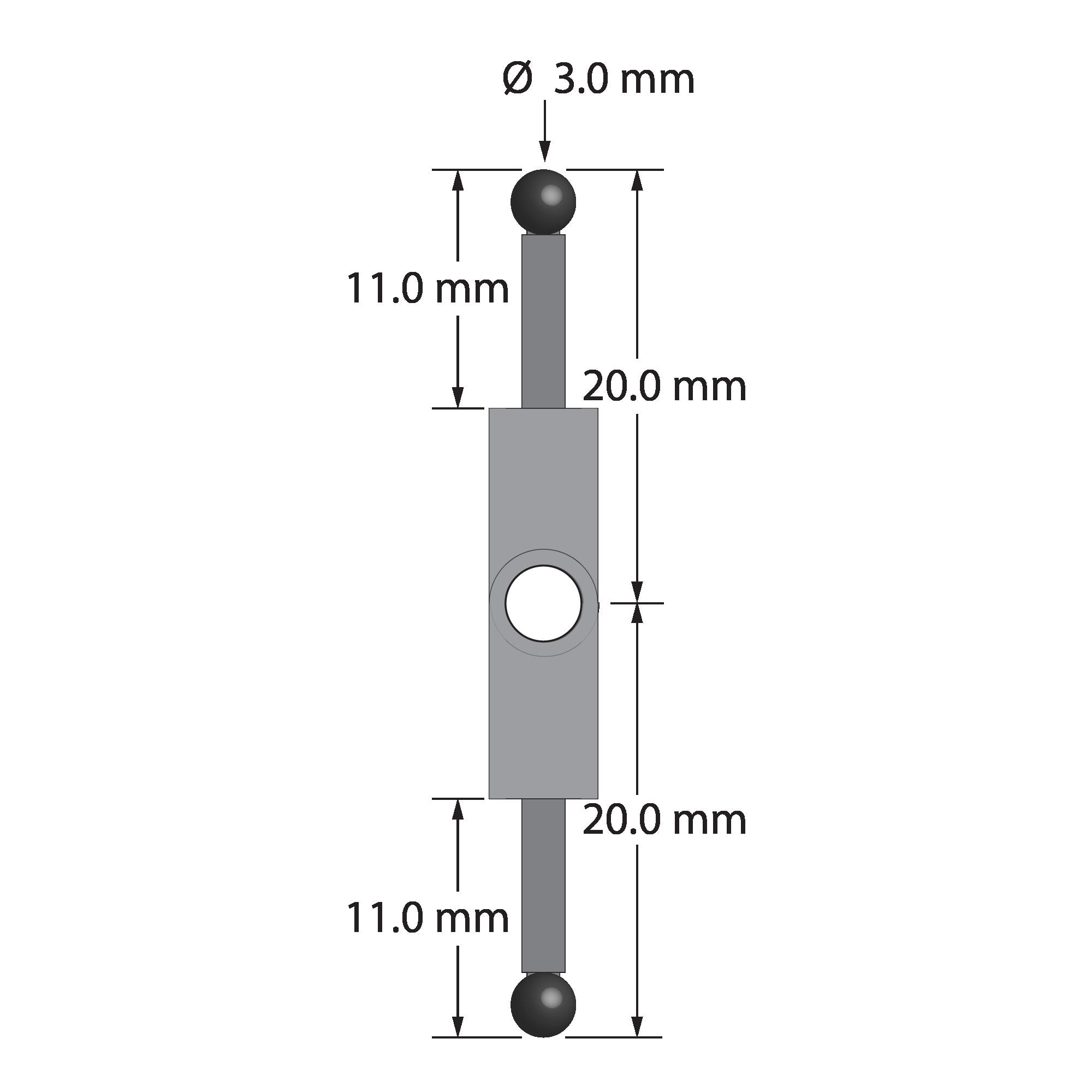

XXT stylus, 180 degrees. Titanium center fitting with 3.5 mm through hole. Two 2.0 mm diameter Therm-X carbon fiber stems with 3.0 mm diameter silicon nitride balls. Used with a clamping screw or clamping stylus to create a T-shaped probe. Stylus weight is 1.34 grams. Compare to Zeiss 626103-0314-020.

Dimensions

ball diameter: 3.0
length 1: 20.0
length 2: 11.0
stem diameter: 2.0

Materials

ball material: Silicon Nitride
body material: Titanium
stem material: Carbon Fiber
