WMS-3545
WMS-3545

WMS-3545

$195.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
 {% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

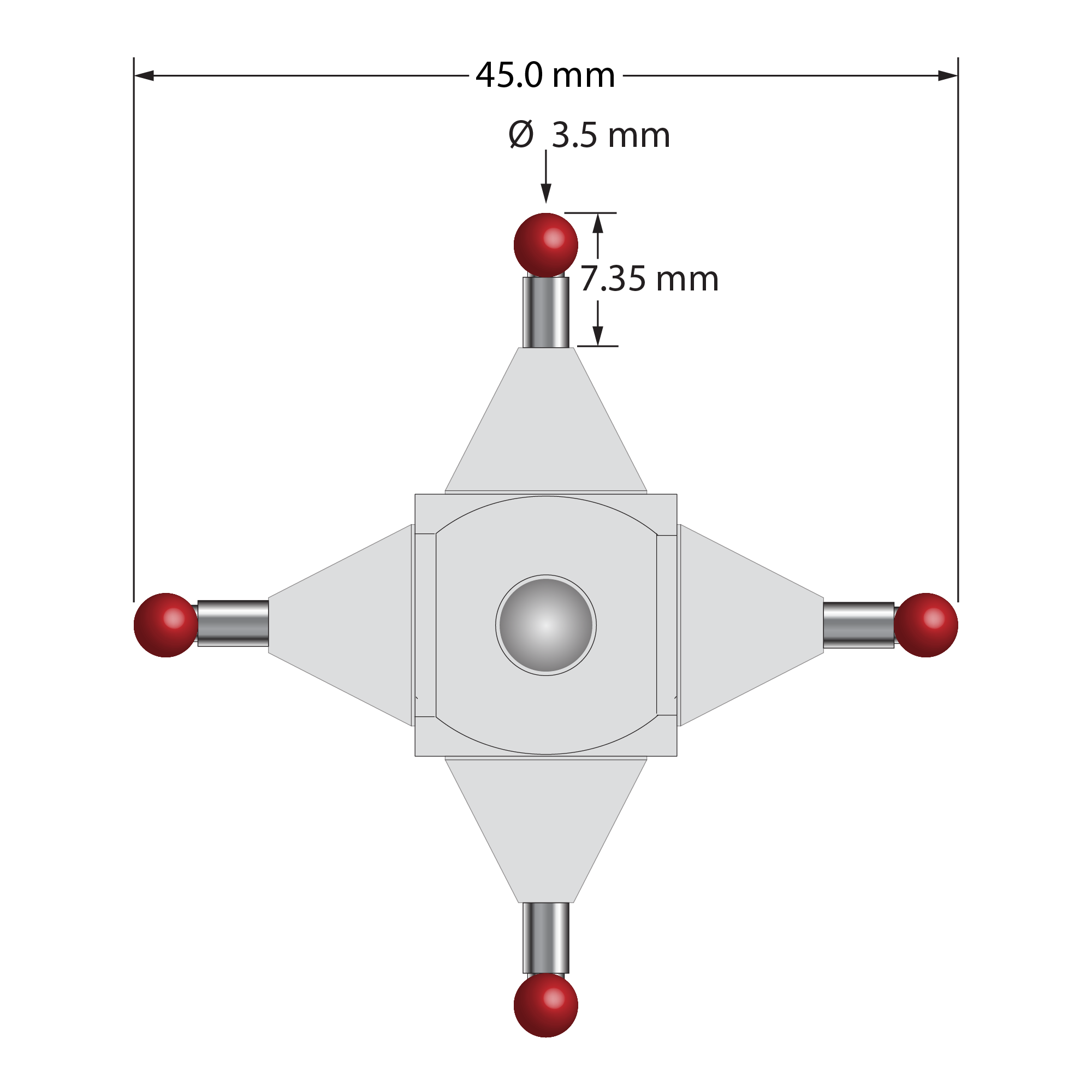

M5 cube star with four 3.5 mm diameter ruby balls, 2.5 mm diameter carbide stems, 11.0 mm diameter aluminum bases, 14.3 mm square aluminum cube body, and stainless steel mounting screw.  Length between stylus tips is 45.0 mm.  Weight is 10.50 grams.

Dimensions

ball diameter: 3.5
length 1: 45.0
length 2: 7.35
stem diameter: 2.5

Materials

ball material: Ruby
base material: Aluminum
stem material: Carbide
