WMS-2045-SN

Name: WMS-2045-SN
Brand: Q-Mark Manufacturing Inc
Price: 260.0 USD
Availability: InStock

$260.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

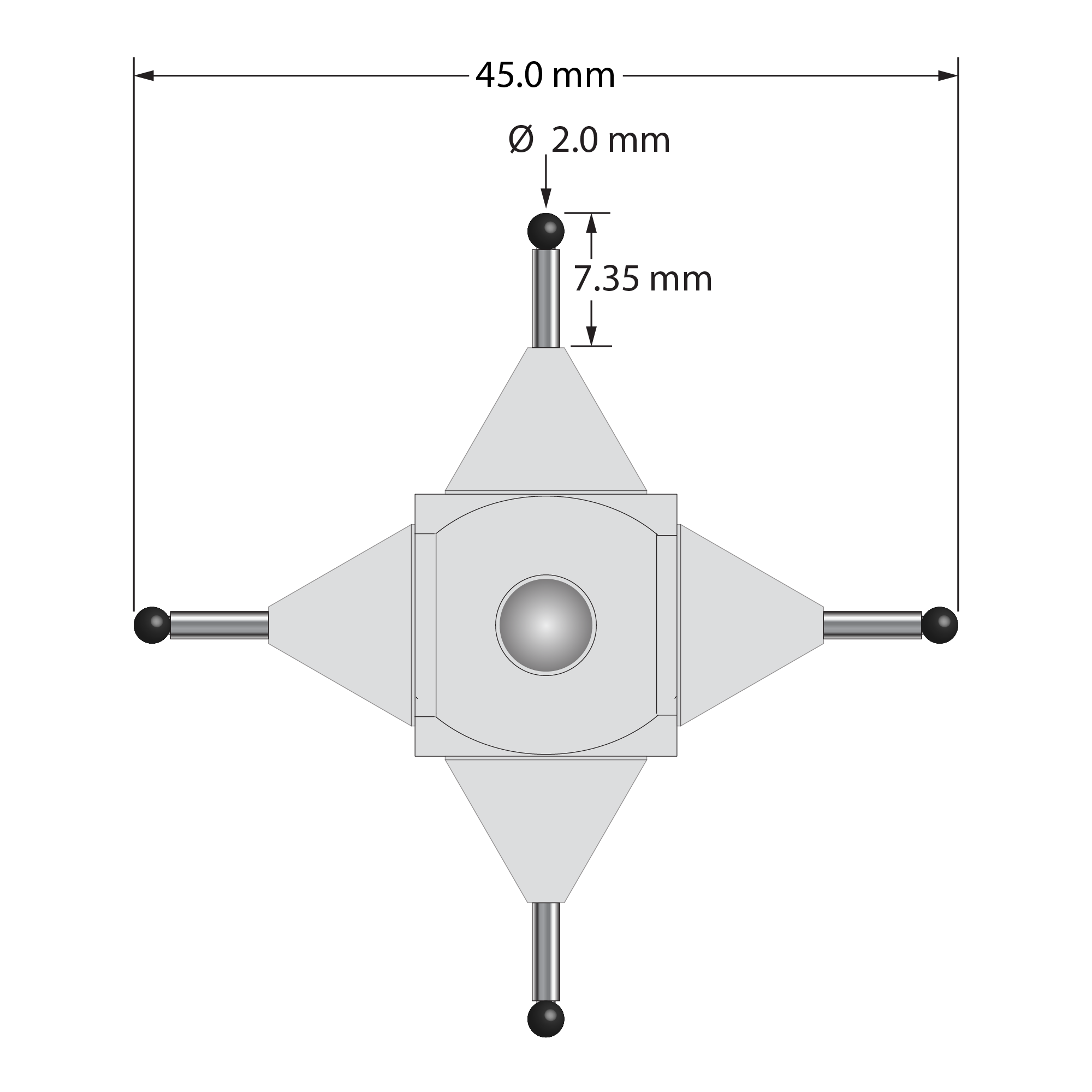

M5 cube star with four 2.0 mm diameter silicon nitride balls, 1.5 mm diameter carbide stems, 11.0 mm diameter aluminum bases, 14.3 mm square aluminum cube body, and stainless steel mounting screw. Length between stylus tips is 45.0 mm. Weight is 9.50 grams.

Dimensions

ball diameter: 2.0

length 1: 45.0

length 2: 7.35

stem diameter: 1.5

Materials

ball material: Silicon Nitride

base material: Aluminum

stem material: Carbide
