WMS-1045

Name: WMS-1045
Brand: Q-Mark Manufacturing Inc.
Price: 195.0 USD
Availability: InStock

$195.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

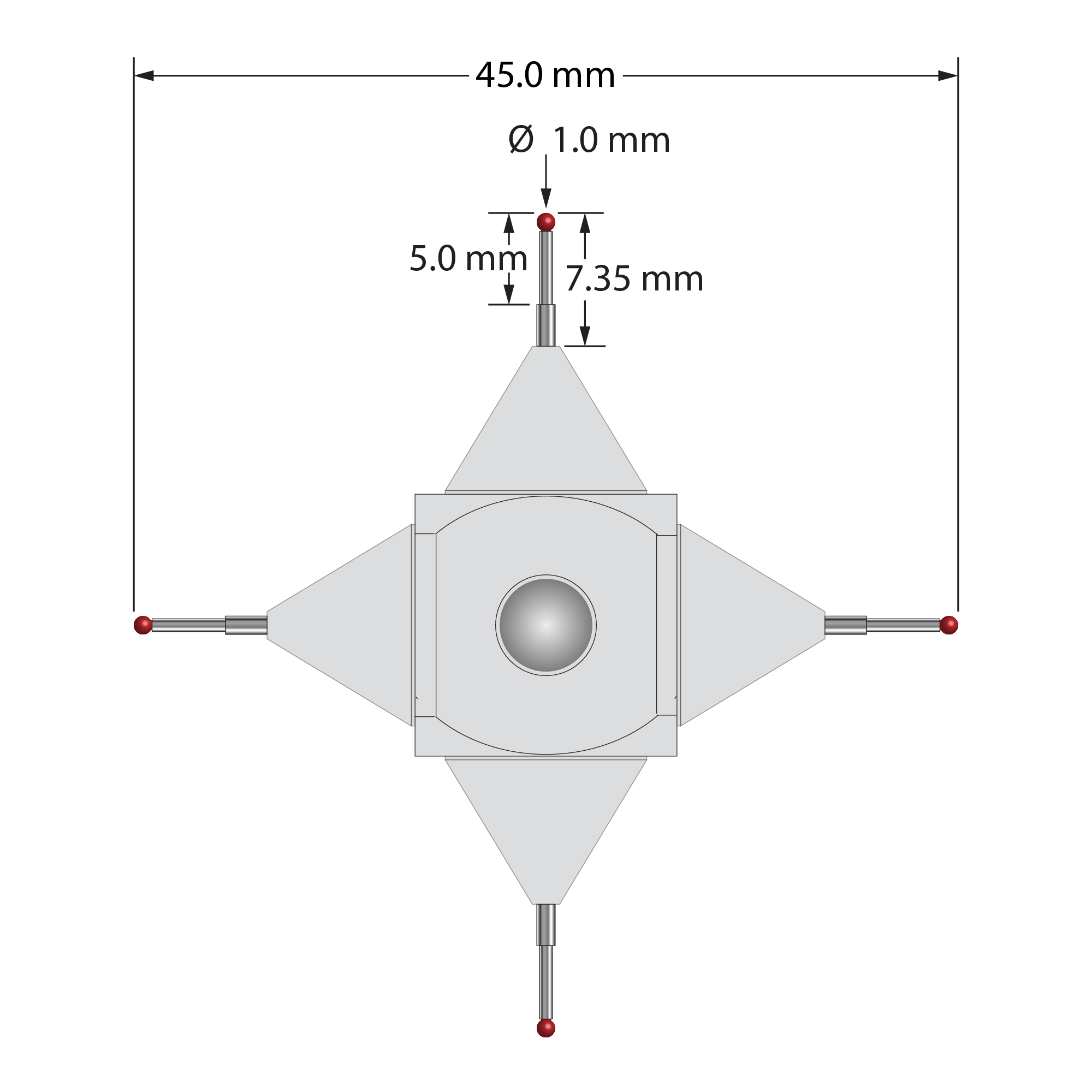

M5 cube star with (4) 1.0 mm diameter ruby balls, stepped carbide stems, 11.0 mm diameter aluminum bases, 14.3 mm square aluminum cube body, and stainless steel mounting screw. Minor carbide stem diameter is 0.7 mm, major diameter is 1.0 mm. Length between stylus tips is 45.0 mm. Weight is 8.50 grams.

Dimensions

ball diameter: 1.0

base diameter: 11.0

length 1: 45.0

length 2: 7.35

stem diameter: 1.0

stem step diameter: 0.7

Materials

ball material: Ruby

base material: Aluminum

stem material: Carbide
