VM5-18.90-TT
VM5-18.90-TT

VM5-18.90-TT

$95.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
 {% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

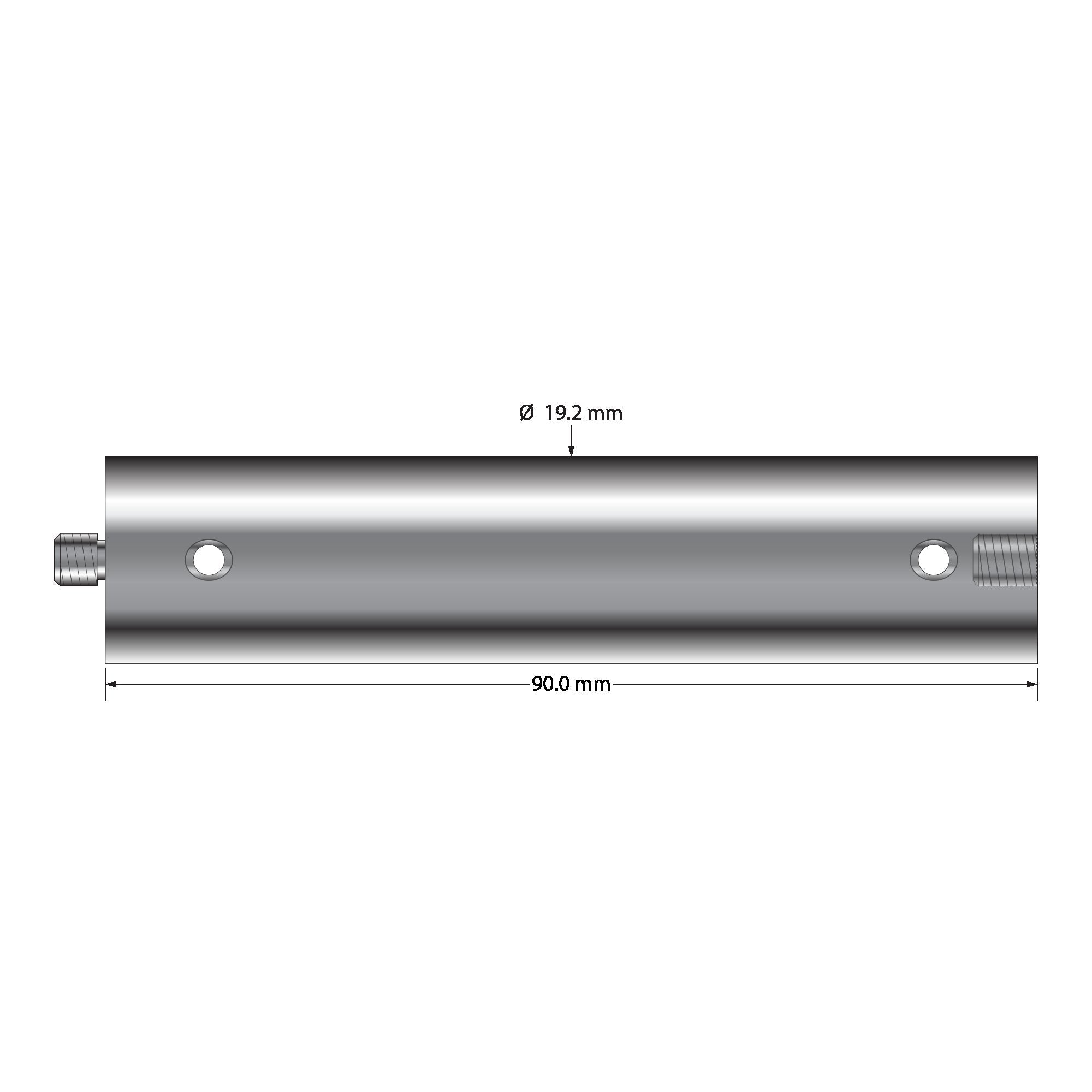

M5 extension, 19.2 mm diameter seamless titanium tubing with welded titanium end caps. Two wrench holes. Length is 90.0 mm. Weight is 41.88 grams. Compare to Zeiss 602030-9060-000.

Dimensions

body diameter: 20
extension diameter: 19.2
length 1: 90.0

Materials

body material: Titanium
