VM5-12.400-TX
VM5-12.400-TX

VM5-12.400-TX

$325.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
 {% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

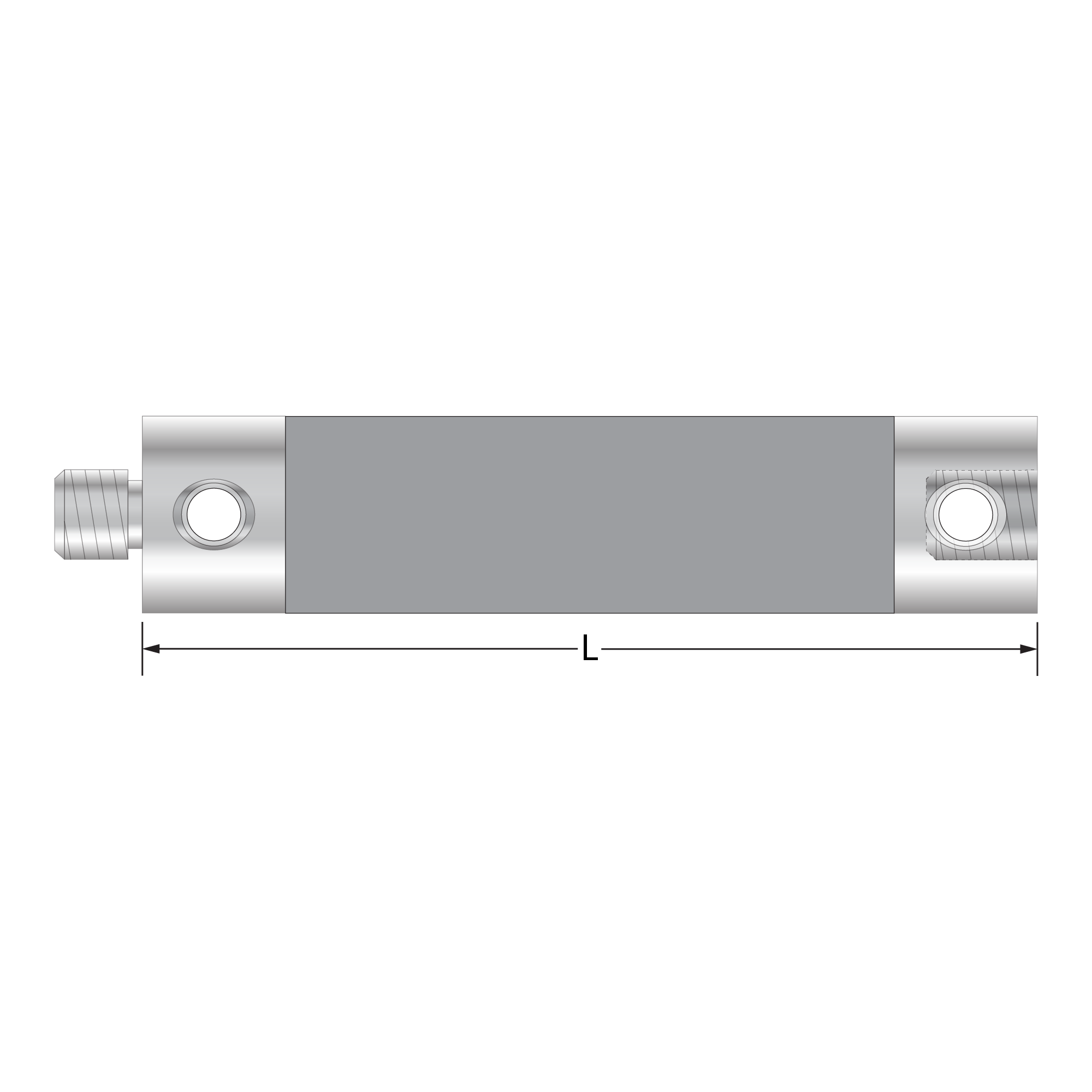

Therm-X low expansion M5 extension, 11.2 mm diameter silver woven carbon fiber tubing with 11.13 mm diameter titanium end fittings.  Overall length (L) is 400.0 mm.  Weight is 35.85 grams.  Compare to Zeiss 626107-1400-100.

Dimensions

base diameter: 11.13
body diameter: 11.2
length 1: 400.0

Materials

base material: Titanium
body material: carbon fiber
