TST-1025-SN

$59.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
{% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

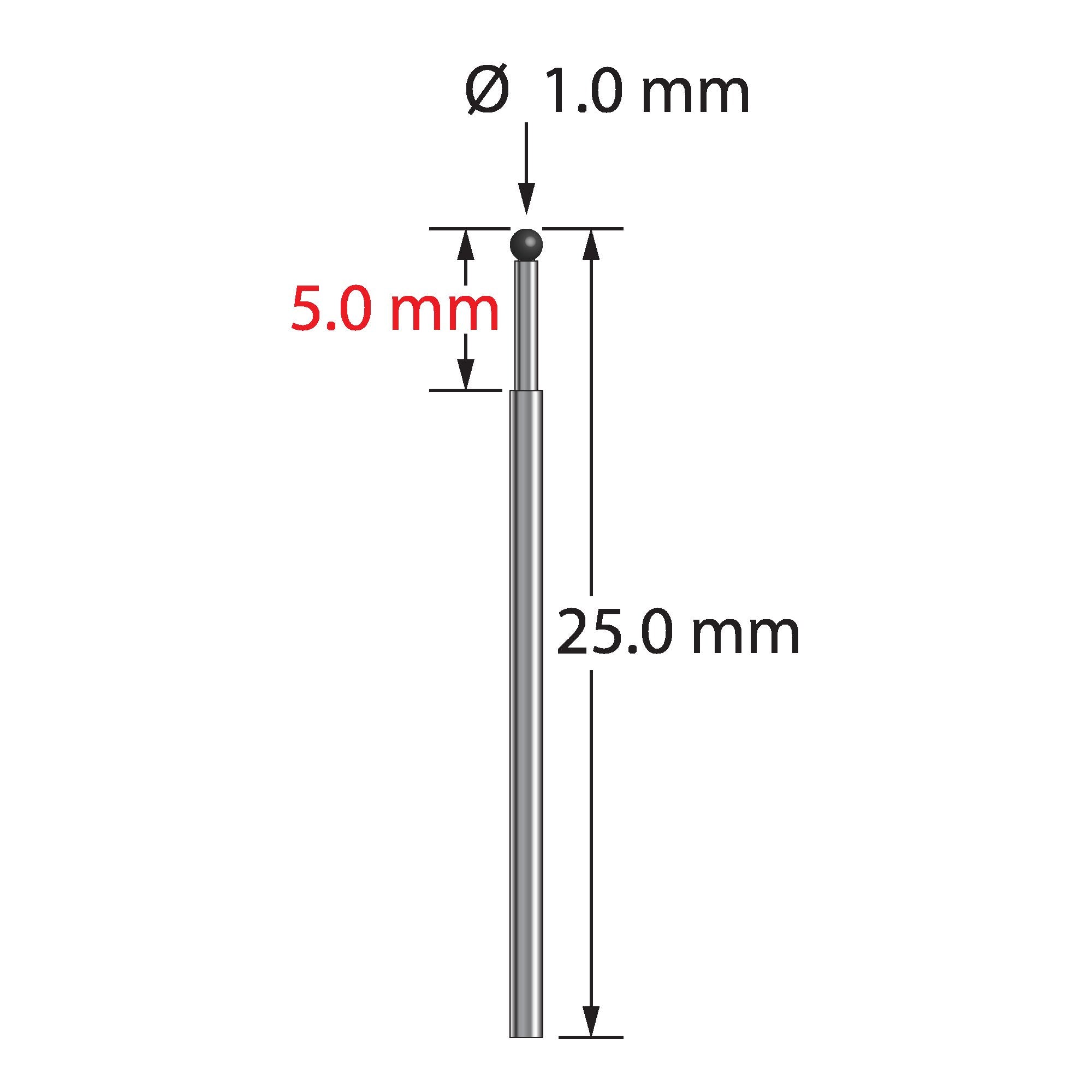

Unthreaded stylus with 1.0 mm diameter silicon nitride ball and stepped carbide stem. Minor stem diameter is 0.7 mm, major diameter is 1.0 mm. Overall stylus length is 25.0 mm. Stylus weight is 0.26 gram.

Dimensions

ball diameter: 1.0
length 1: 25.0
length 2: 5.0
stem diameter: 1.0
stem step diameter: 0.7

Materials

stem material: Carbide
