TST-0815.8-TX-SN
TST-0815.8-TX-SN

TST-0815.8-TX-SN

$59.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
 {% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

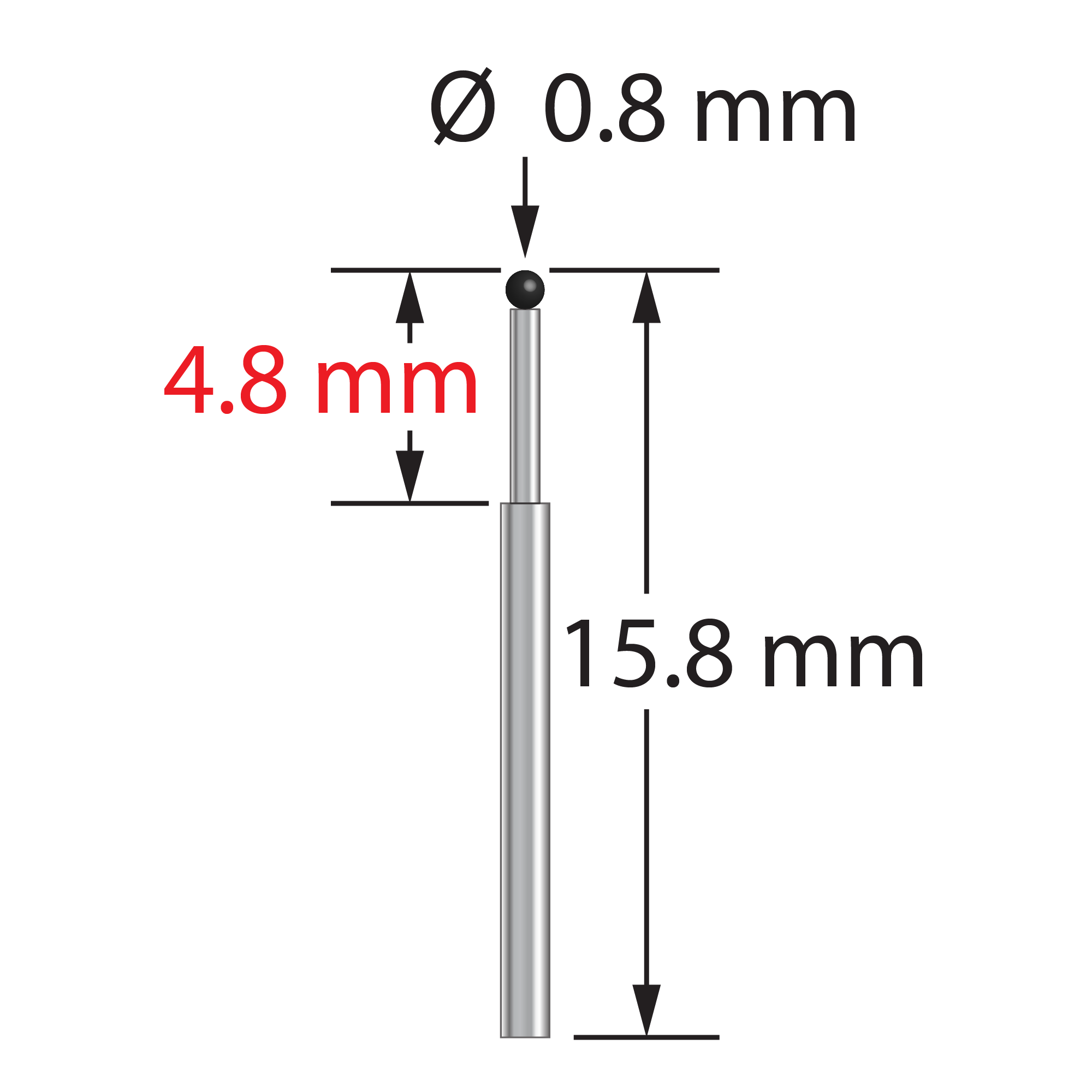

Unthreaded stylus with 0.8 mm diameter silicon nitride ball and stepped carbide stem. Minor stem diameter is 0.6 mm; major stem diameter is 1.0 mm. Overall stylus length is 15.8 mm. Stylus weight is 0.15 gram. Compare to Zeiss 626111-0082-016.

Dimensions

ball diameter: 0.8
length 1: 15.8
length 2: 4.8
stem diameter: 1.0
stem step diameter: 0.6

Materials

ball material: Silicon Nitride
stem material: Carbide
