TST-0615.5
TST-0615.5

TST-0615.5

$41.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
 {% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

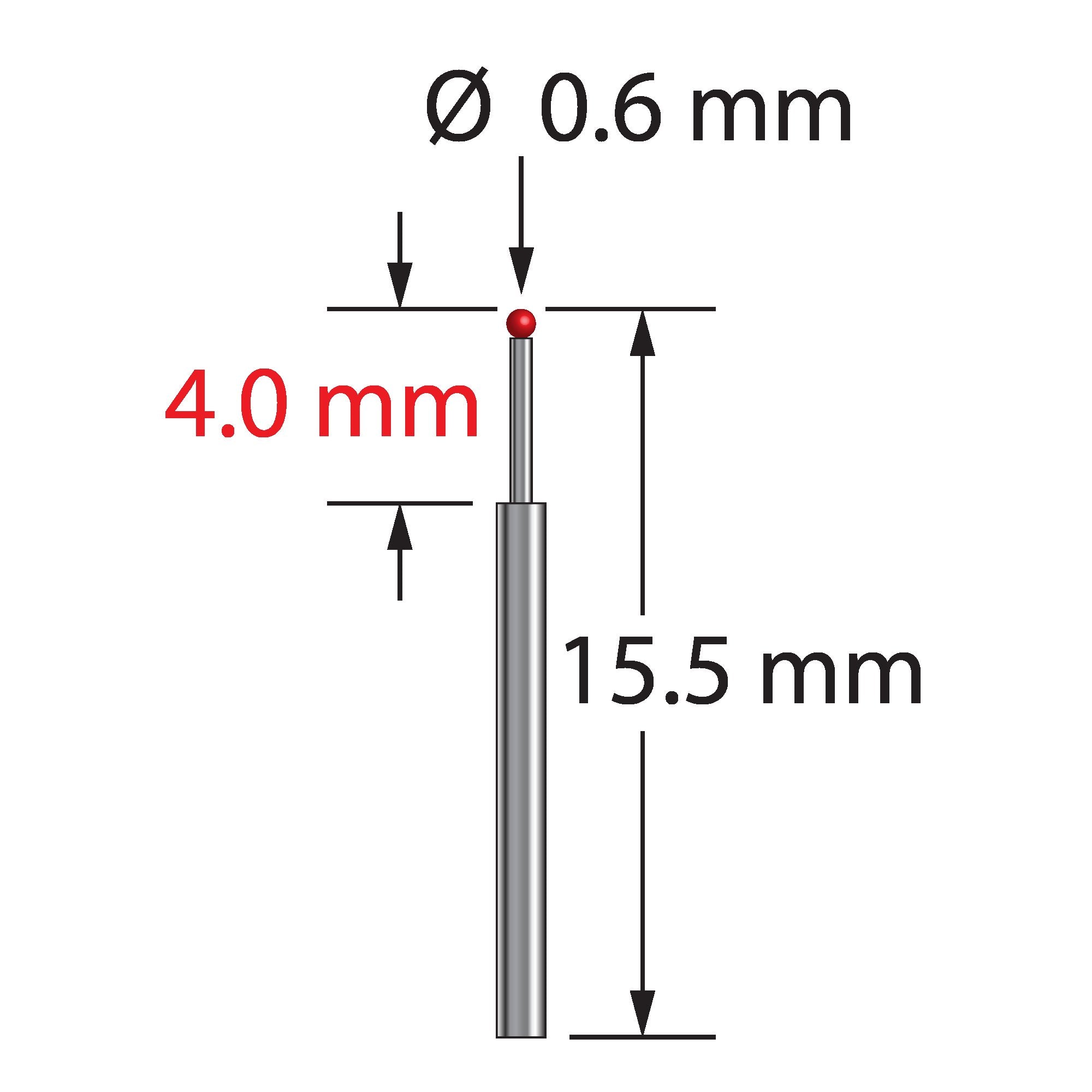

Unthreaded stylus with 0.6 mm diameter ruby ball and stepped carbide stem. Minor stem diameter is 0.4 mm, major diameter is 1.0 mm. Overall stylus length is 15.5 mm. Stylus weight is 0.14 gram. Compare to Renishaw A-5555-0110 and Zeiss 600341-8452-000.

Dimensions

ball diameter: 0.6
length 1: 15.5
length 2: 4.0
stem diameter: 1.0
stem step diameter: 0.4

Materials

ball material: Ruby
stem material: Carbide
