TST-0215-C
TST-0215-C

TST-0215-C

$125.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
 {% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

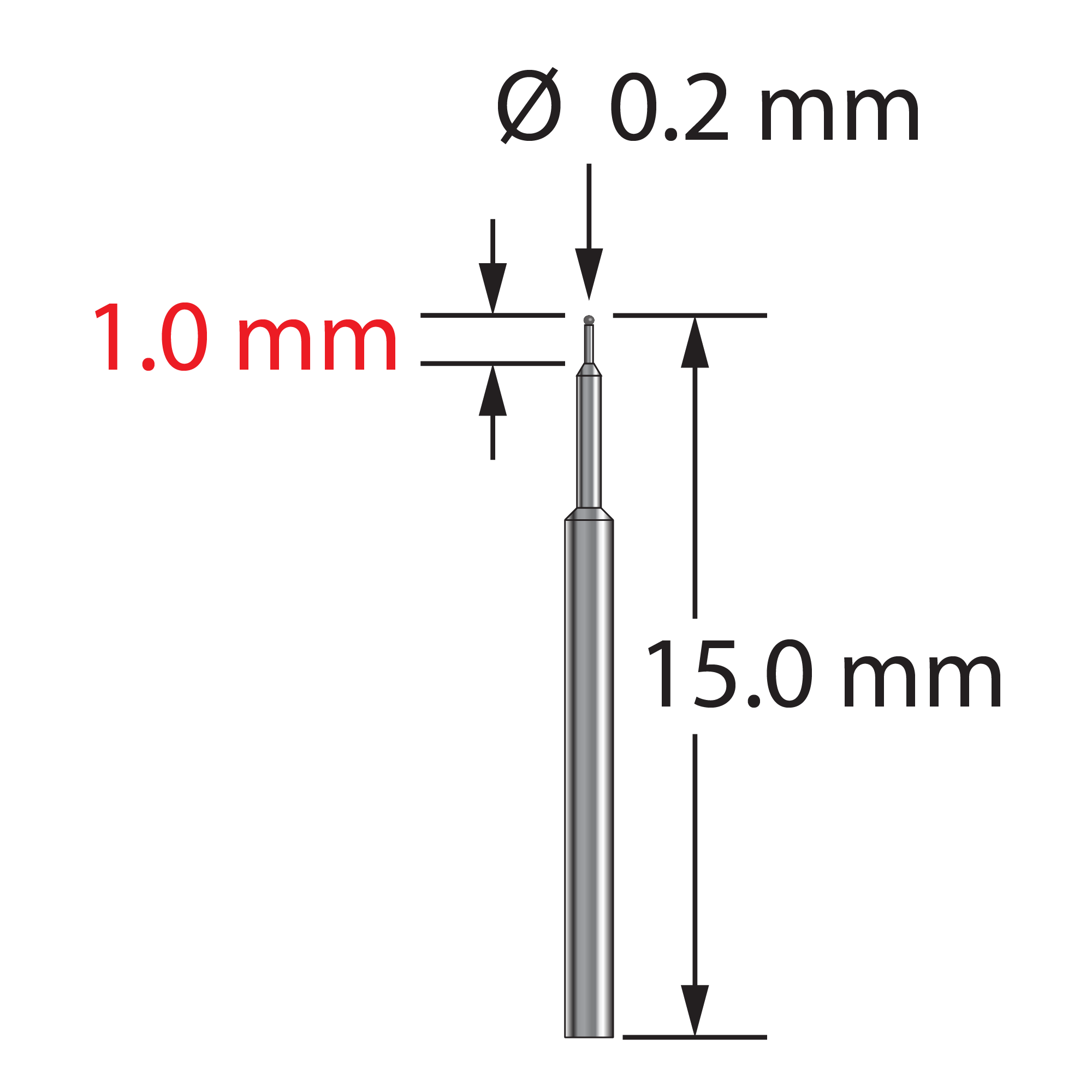

Unthreaded stylus with 0.2 mm diameter carbide ball and stepped carbide stem.  Minor stem diameter is 0.17 mm, intermediate diameter is 0.5 mm, major diameter is 1.0 mm.  Overall stylus length is 15.0 mm.  Stylus weight is 0.16 gram.

Dimensions

ball diameter: 0.2
length 1: 15.0
length 2: 4.0
length 3: 1.0
stem diameter: 1.0
stem first step diameter: 0.17
stem step diameter: 0.5

Materials

ball material: Carbide
stem material: Carbide
