TM5-2060-B

Name: TM5-2060-B
Brand: Q-Mark Manufacturing Inc.
Price: 385.0 USD
Availability: InStock

$385.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

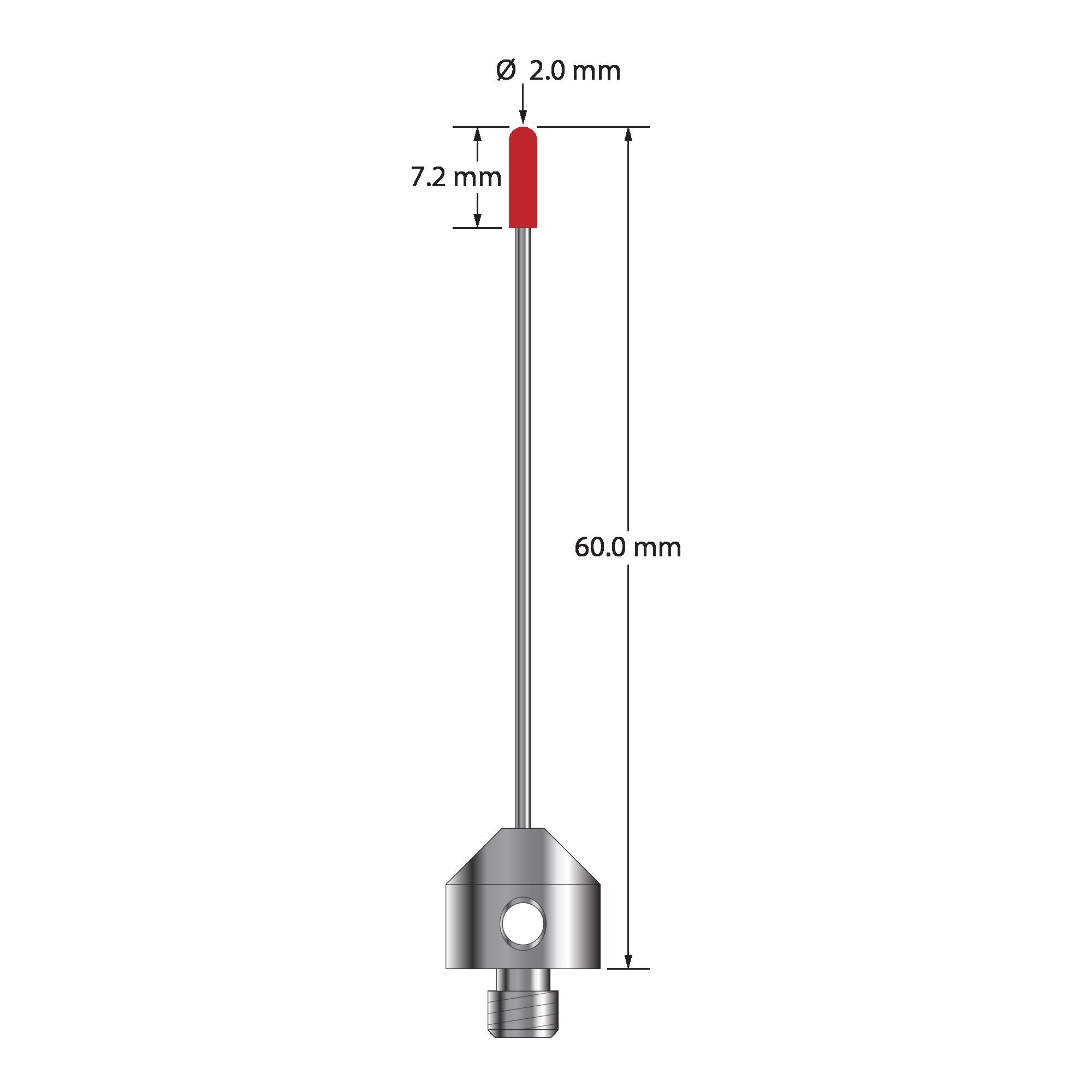

M5 stylus with 2.0 mm diameter ruby cylinder, 1.0 mm diameter carbide stem, and 11.0 mm diameter x 10.0 mm long titanium base. Overall stylus length is 60.0 mm. Stylus weight is 3.79 grams. Compare to Zeiss 626115-0205-060. Cylinder styli are used for edge probing, for example, the edges of stampings, or sheet metal parts. They are not suitable for high accuracy work because the spherical form of a cylinder is not as precise as a sphere. Please contact us with any questions about calibrating or using cylinder styli.

Dimensions

ball diameter: 2.0

base diameter: 11.0

length 1: 60.0

length 2: 50.0

length 3: 7.2

stem diameter: 1.0

Materials

ball material: Ruby

base material: Titanium

stem material: Carbide
