TM4-80304-G

$350.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
{% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

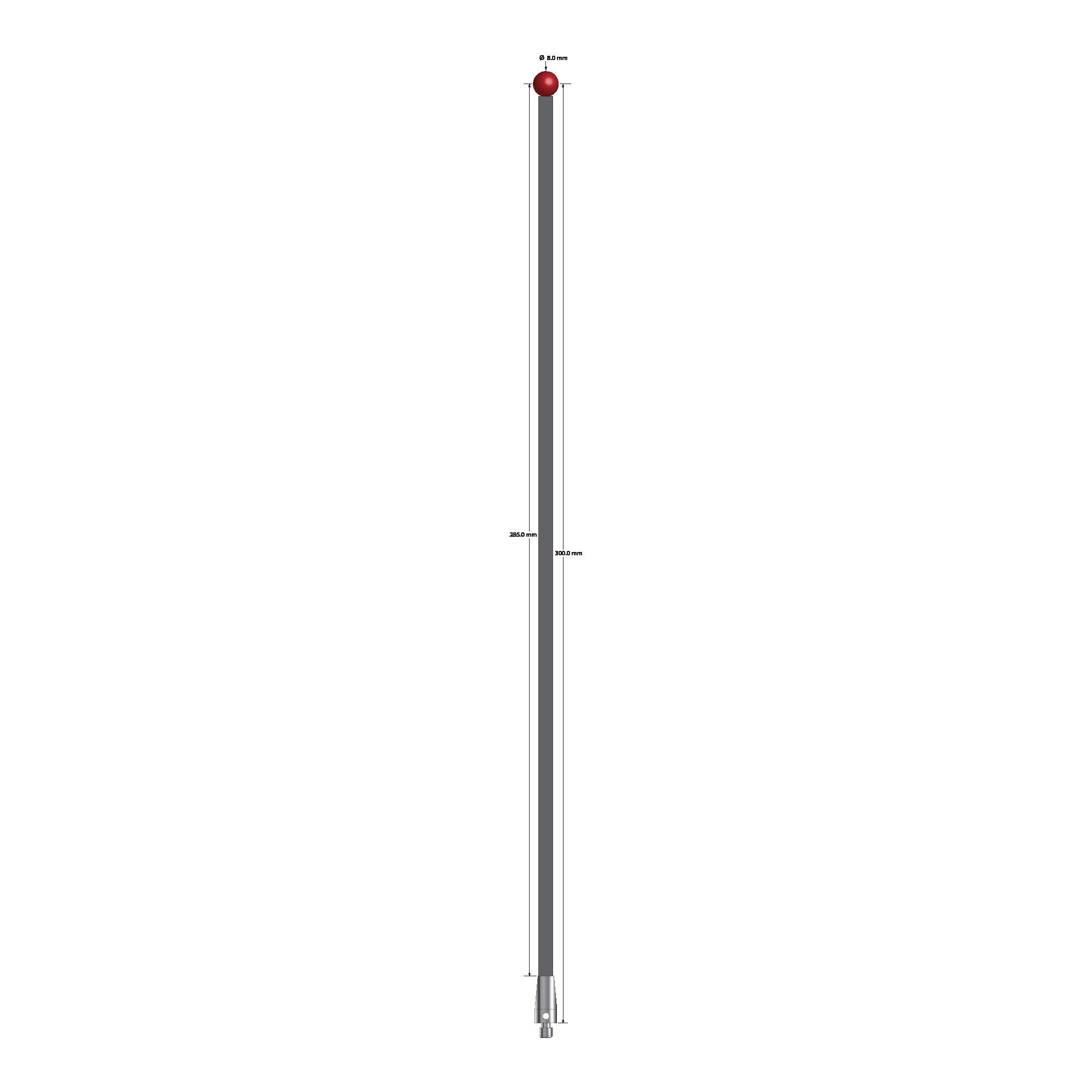

M4 stylus with 8.0 mm diameter ruby ball, 4.5 mm diameter carbon fiber shaft, and 7.0 mm diameter x 15.0 mm long stainless steel base.  Stylus length to ball center is 300.0 mm.  Stylus weight is 10.25 grams.  Compare to Renishaw A-5003-3461.

Dimensions

ball diameter: 8.0
base diameter: 7.0
length 1: 304.0
length 2: 289.0
stem diameter: 4.5

Materials

ball material: Ruby
base material: Stainless Steel
stem material: Carbon Fiber
