TM4-8020-S

$65.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
{% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

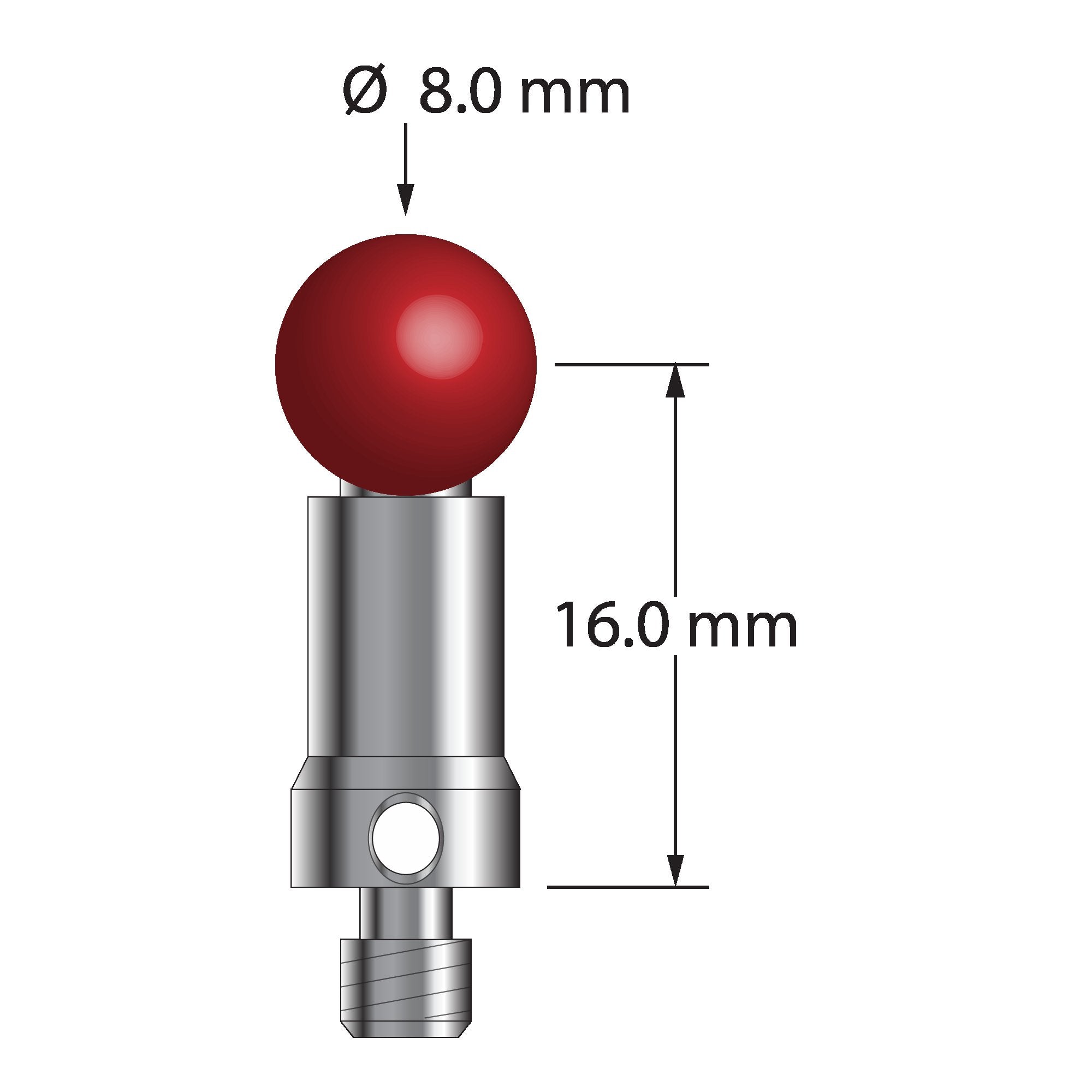

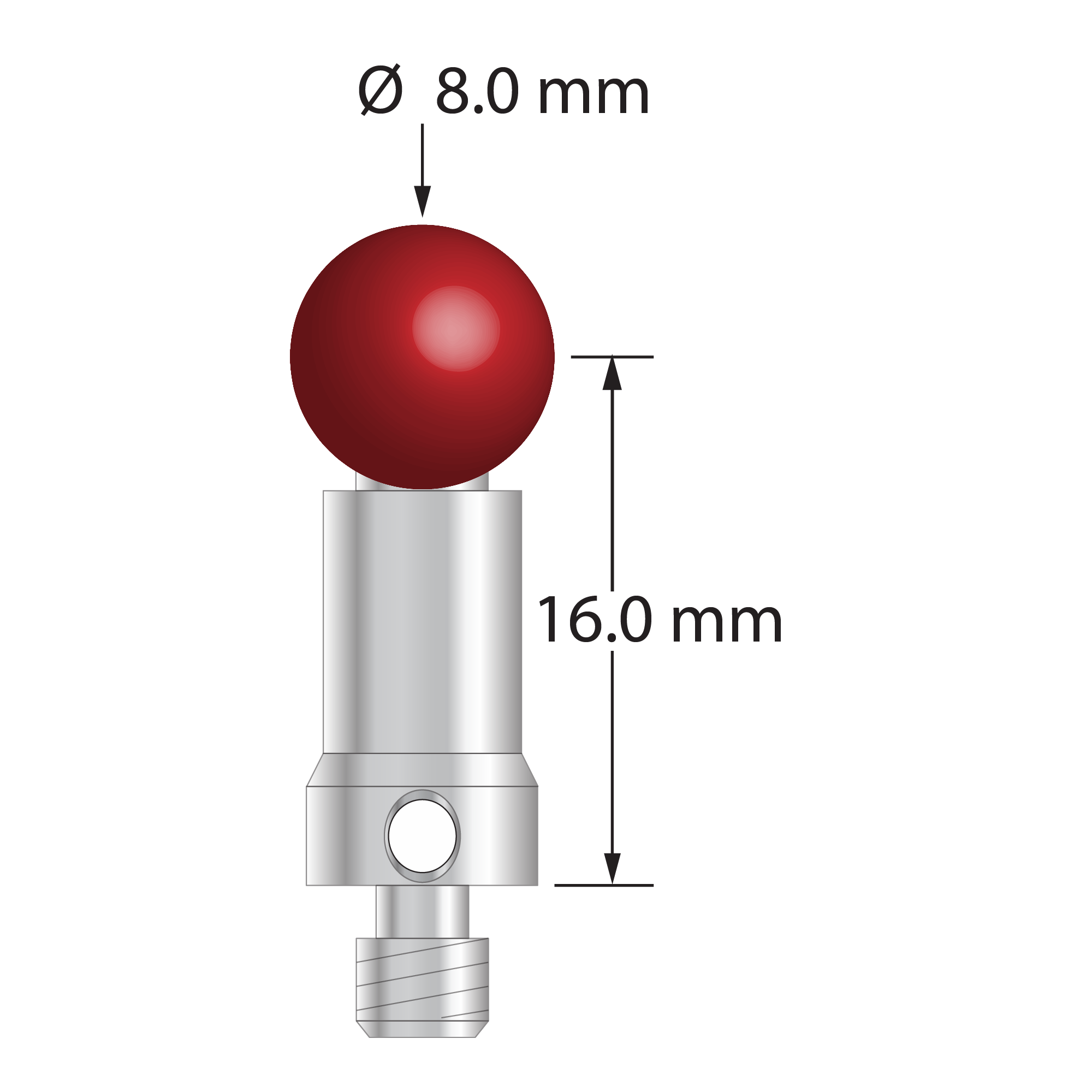

M4 stylus with 8.0 mm diameter ruby ball, 6.0 mm diameter stainless steel stem, and 7.0 mm diameter stainless steel base.  Stylus length to ball center is 16.0 mm.  Stylus weight is 4.28 grams.  Compare to Renishaw A-5000-7557 and Mitutoyo K651191.

Dimensions

ball diameter: 8.0
base diameter: 7.0
length 1: 20.0
stem diameter: 6.0

Materials

ball material: Ruby
base material: Stainless Steel
stem material: Stainless Steel
