TM4-5056.5-EC
TM4-5056.5-EC

TM4-5056.5-EC

$158.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
 {% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

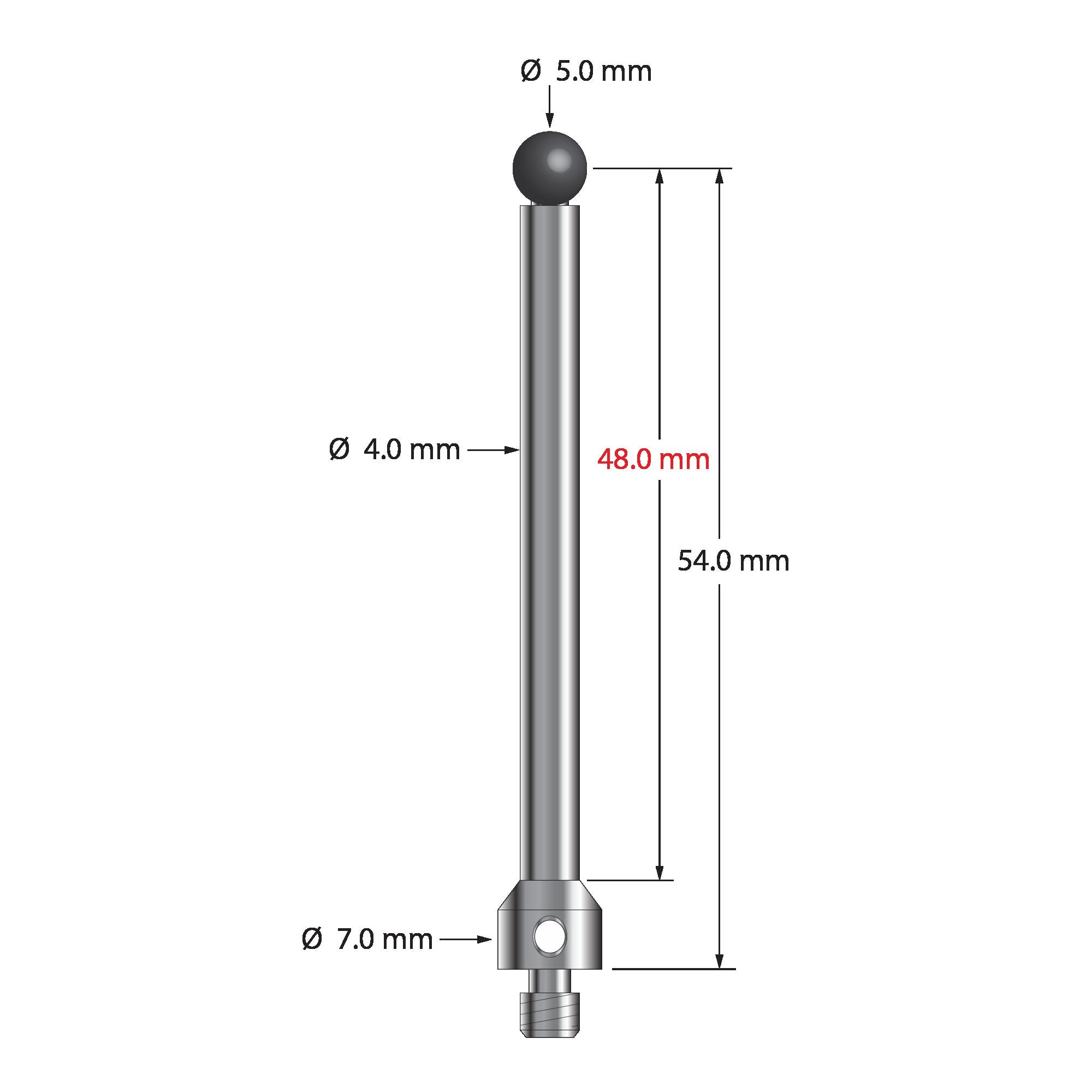

M4 stylus with 5.0 mm diameter carbide ball, stainless steel base and stem.  Stylus is electrically conductive.  Stylus length to ball center is 54.0 mm.  Weight is 6.09 grams.  Compare to Renishaw A-5000-9685.

Dimensions

ball diameter: 5.0
base diameter: 7.0
length 1: 56.5
length 2: 50.5
stem diameter: 4.0

Materials

ball material: Carbide
base material: Stainless Steel
stem material: Stainless Steel
