TM4-5052.5-EC

Name: TM4-5052.5-EC
Brand: Q-Mark Manufacturing Inc.
Price: 69.0 USD
Availability: InStock

$69.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

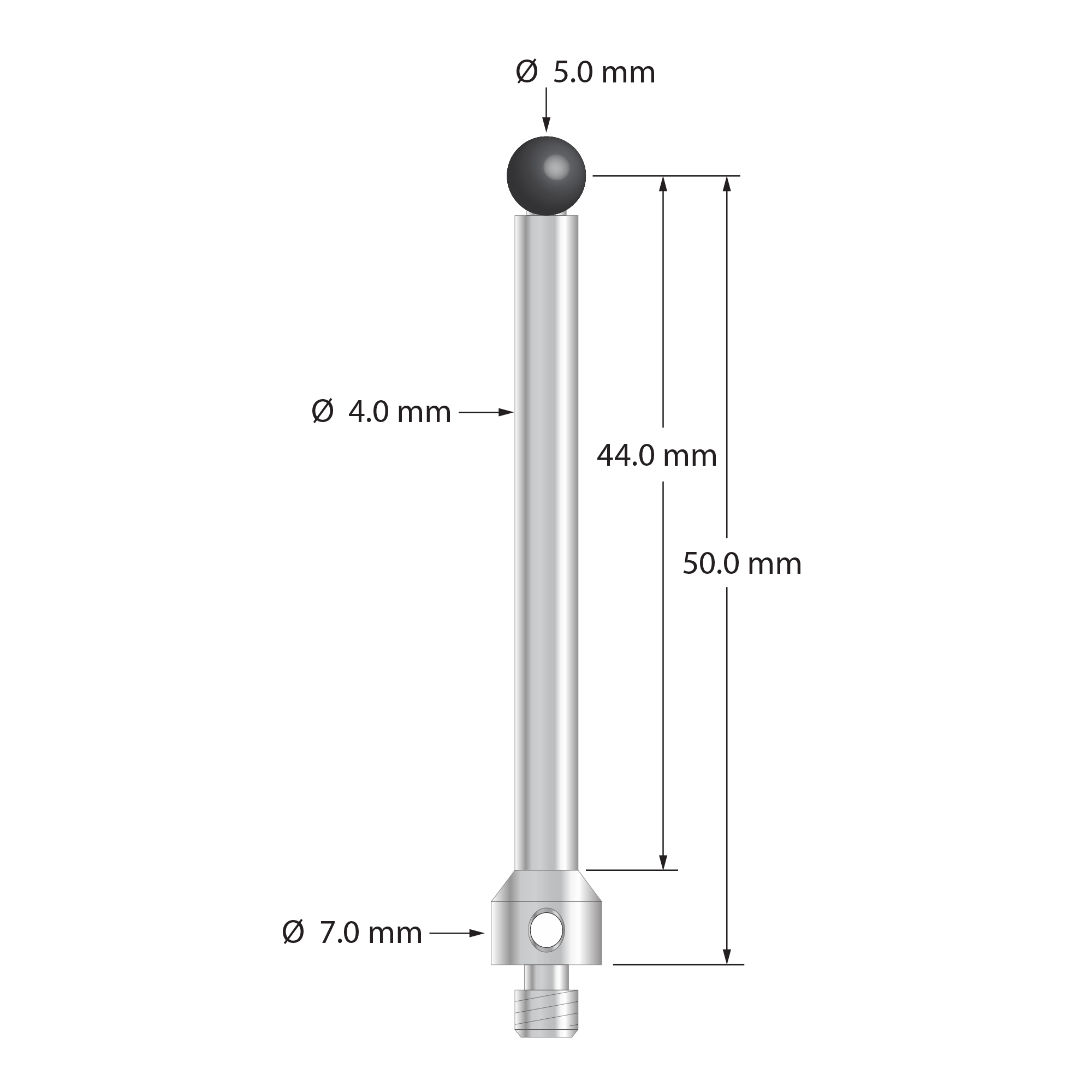

M4 stylus, electrically conductive, with 5.0 mm diameter carbide ball, 4.0 mm diameter stainless steel stem, and 7.0 mm diameter x 6.0 mm long stainless steel base. Stylus length to ball center is 50.0 mm. Weight is 5.85 grams.

Dimensions

ball diameter: 5.0

base diameter: 7.0

length 1: 52.5

length 2: 46.5

stem diameter: 4.0

Materials

ball material: Carbide

base material: Stainless Steel

stem material: Stainless Steel
