Q-Mark Probe Styli: Orders Placed by Noon PT Ship Out Same-Day* | Ultra-Fast Service | Always Guaranteed | Proudly USA Made

TM4-5052.5-C

Name: TM4-5052.5-C
Brand: Q-Mark Manufacturing Inc.
Price: 69.0 USD
Availability: InStock

$69.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

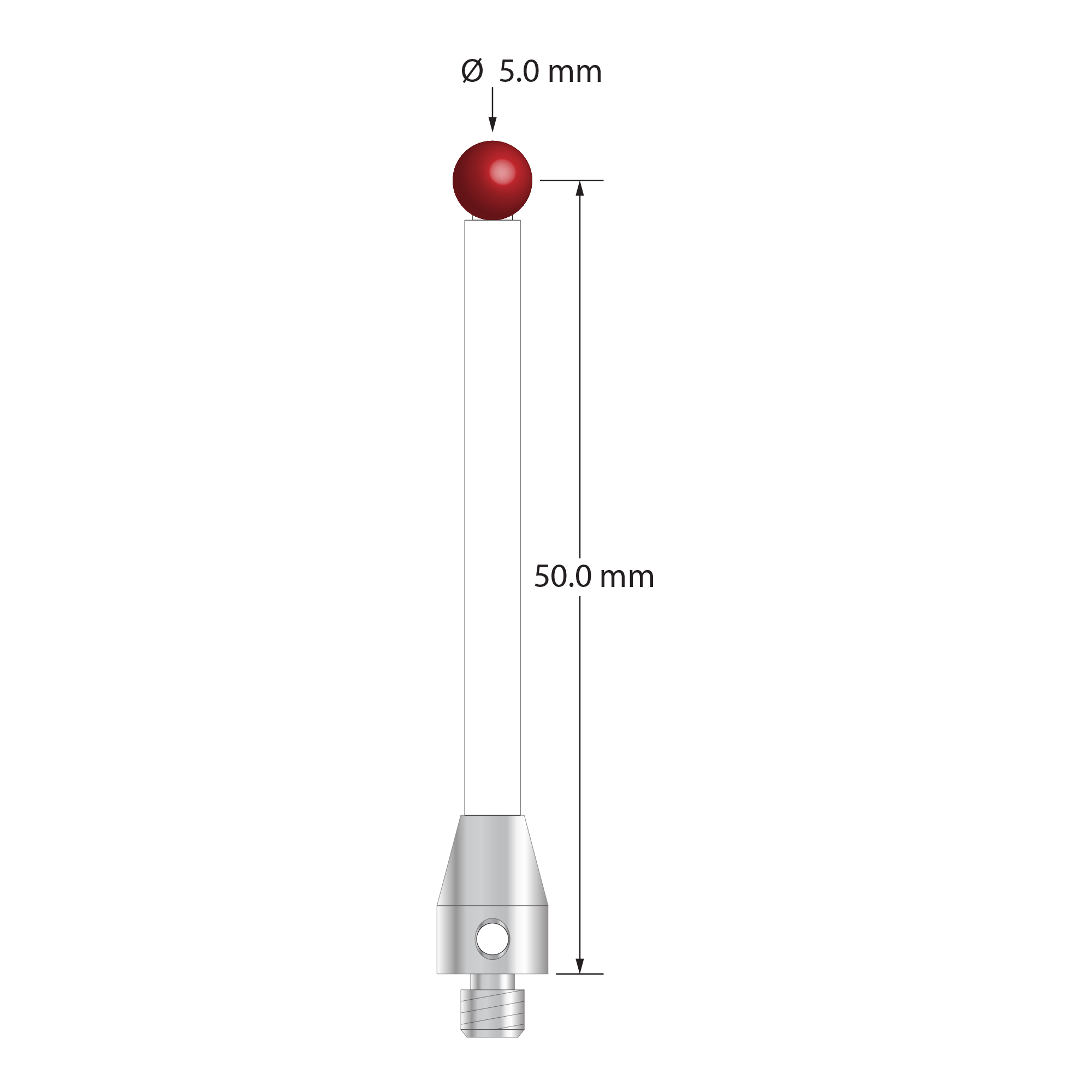

M4 stylus with 5.0 mm diameter ruby ball, 3.5 mm diameter ceramic stem, and 7.0 mm diameter x 10.0 mm long stainless steel base. Stylus length to ball center is 50.0 mm. Stylus weight is 3.71 grams. Compare to Renishaw A-5003-0235.

Dimensions

ball diameter: 5.0

base diameter: 7.0

length 1: 52.5

length 2: 42.5

stem diameter: 3.5

Materials

ball material: Ruby

base material: Stainless Steel

stem material: Ceramic
