TM4-5052.5-BL-TC50/51

Name: TM4-5052.5-BL-TC50/51
Brand: Q-Mark Manufacturing Inc.
Price: 85.0 USD
Availability: InStock

$85.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

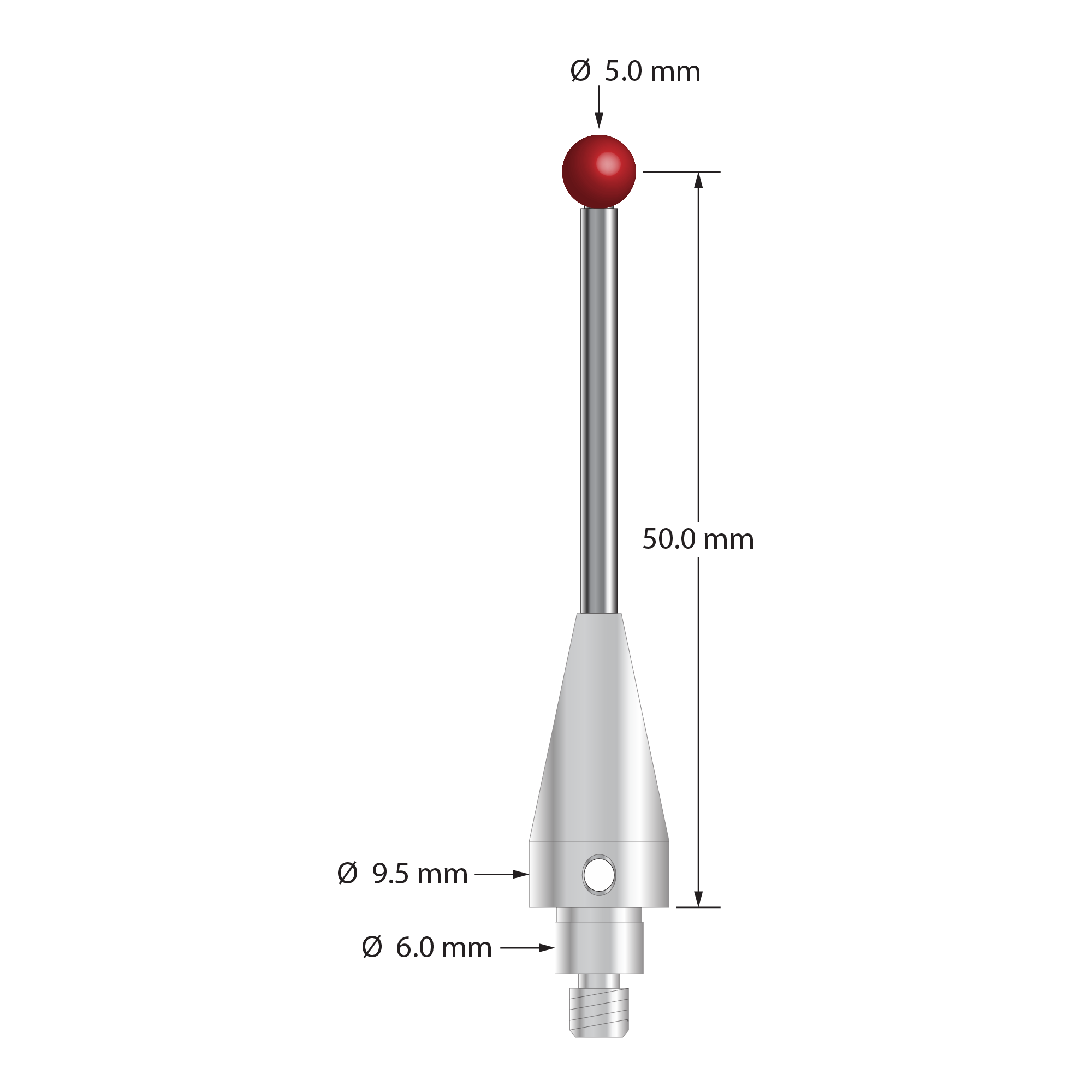

M4 stylus for Blum probe. 5.0 mm diameter ruby ball, 2.5 mm diameter carbide stem, and 9.5 mm diameter x 20.0 mm long stainless steel base. Stylus length to ball center is 50.0 mm. Compare to Blum P03.8000-012.050.05.

Dimensions

ball diameter: 5.0

base diameter: 9.5

length 1: 52.5

length 2: 32.5

stem diameter: 2.5

Materials

ball material: Ruby

base material: Stainless Steel

stem material: Carbide
