TM4-50152.5-EC

Name: TM4-50152.5-EC
Brand: Q-Mark Manufacturing Inc.
Price: 87.0 USD
Availability: InStock

$87.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

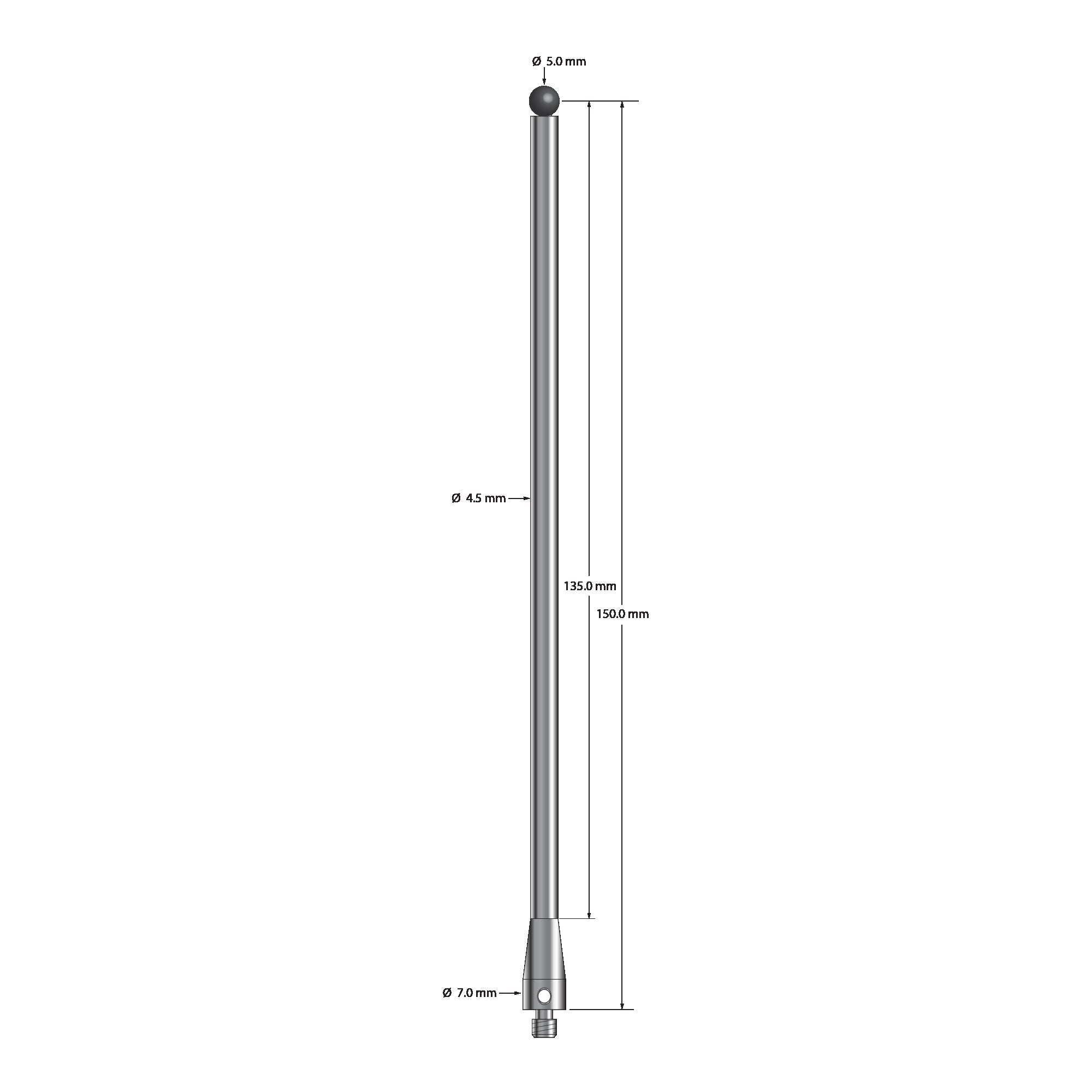

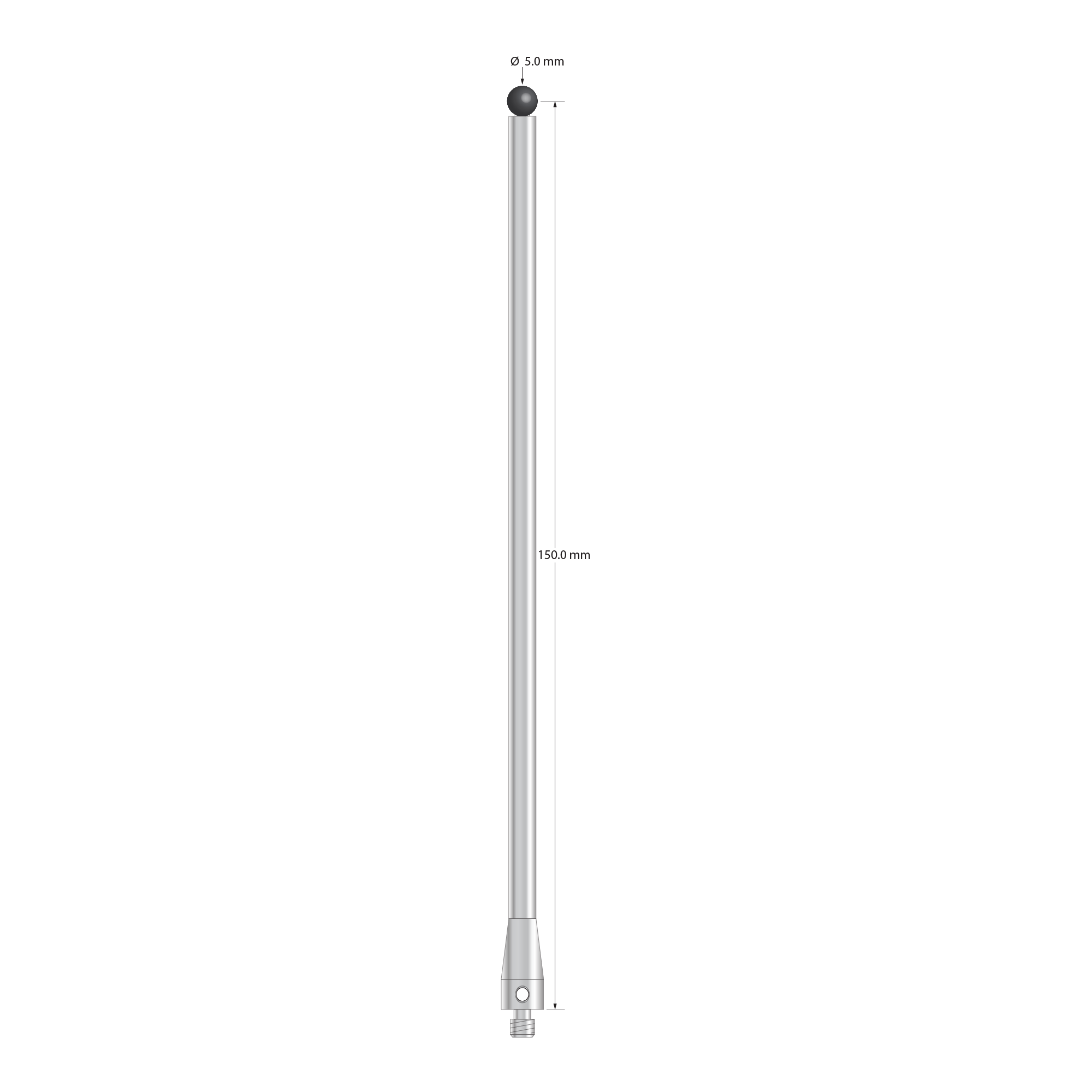

M4 stylus with 5.0 mm diameter carbide ball, stainless steel base and stem. Stylus is electrically conductive. Length to ball center is 150.0 mm. Weight is 27.94 grams. Compare to Renishaw A-5000-7672.

Dimensions

ball diameter: 5.0

base diameter: 7.0

length: 152.5

length 2: 137.5

stem diameter: 4.5

Materials

ball material: Carbide

base material: Stainless Steel

stem material: Stainless Steel
