TM4-4052-C-SN

Name: TM4-4052-C-SN
Brand: Q-Mark Manufacturing Inc.
Price: 95.0 USD
Availability: InStock

$95.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

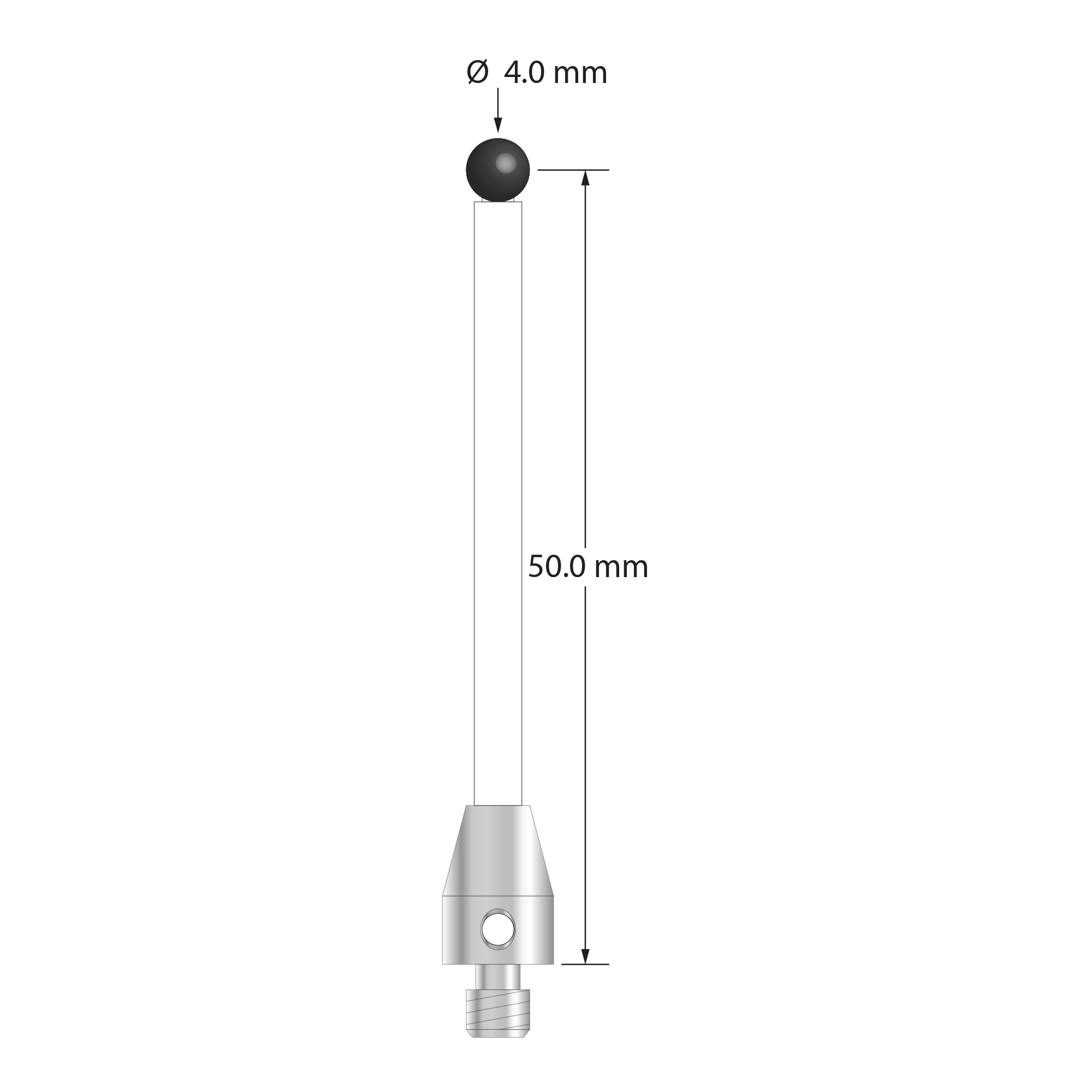

M4 stylus with 4.0 mm diameter silicon nitride ball, 3.0 mm diameter ceramic stem, and 7.0 mm diameter x 10.0 mm long stainless steel base. Stylus length to ball center is 50.0 mm. Stylus weight is 3.11 grams.

Dimensions

ball diameter: 4.0

base diameter: 7.0

length 1: 52.0

length 2: 42.0

stem diameter: 3.0

Materials

ball material: Silicon Nitride

base material: Stainless Steel

stem material: Ceramic
