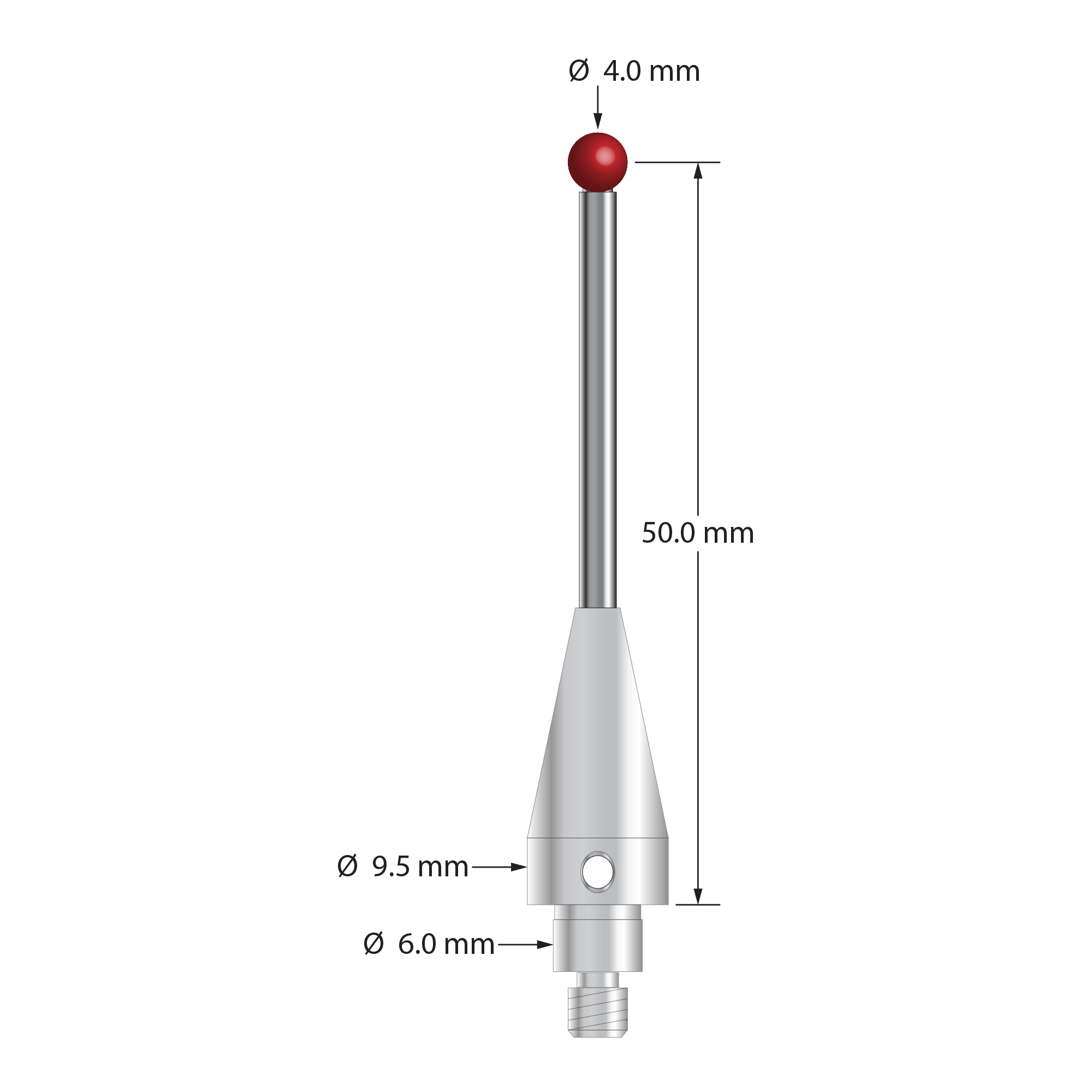

M4 stylus for Blum probe with 4.0 mm diameter ruby ball, 2.5 mm diameter carbide stem, and 9.5 mm diameter x 20.0 mm long stainless steel base. Stylus length to ball center is 50.0 mm. Compare to Blum P03.8000-012.050.04.
M4 stylus for Blum probe with 4.0 mm diameter ruby ball, 2.5 mm diameter carbide stem, and 9.5 mm diameter x 20.0 mm long stainless steel base. Stylus length to ball center is 50.0 mm. Compare to Blum P03.8000-012.050.04.

TM4-4052-BL-TC50/51

$80.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
 {% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

M4 stylus for Blum probe with 4.0 mm diameter ruby ball, 2.5 mm diameter carbide stem, and 9.5 mm diameter x 20.0 mm long stainless steel base.  Stylus length to ball center is 50.0 mm.  Compare to Blum P03.8000-012.050.04.

Dimensions

ball diameter: 4.0
base diameter: 9.5
length 1: 52.0
length 2: 32.0
stem diameter: 2.5

Materials

ball material: Ruby
base material: Stainless Steel
stem material: Carbide
