TM4-3051.5-BL
TM4-3051.5-BL

TM4-3051.5-BL

$85.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
 {% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

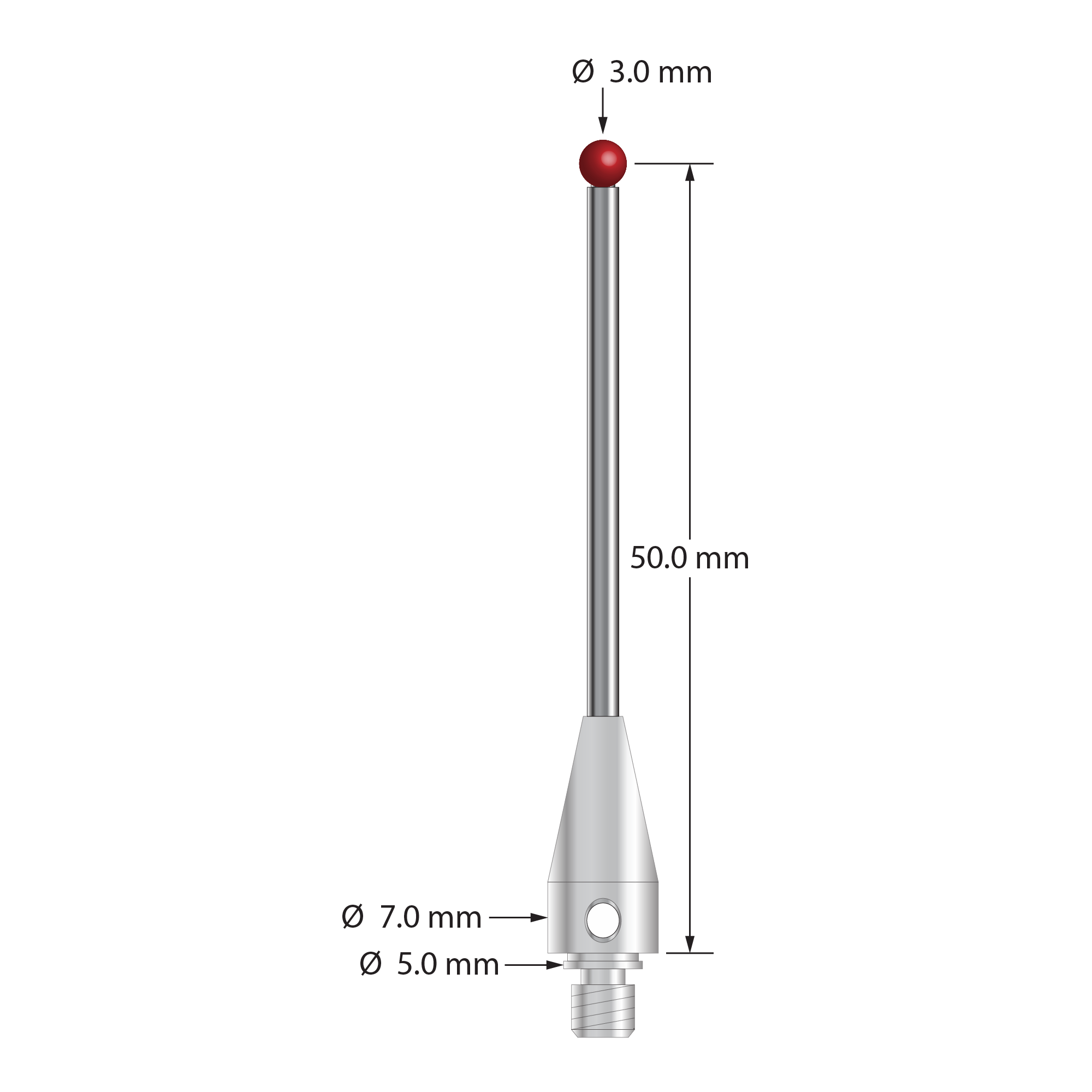

M4 stylus for Blum probe. 3.0 mm diameter ruby ball, 2.0 mm diameter carbide stem, and 7.0 mm diameter x 20.0 mm long stainless steel base.  Stylus length to ball center is 50.0 mm.  Compare to Blum P03.8000-022.050.03.

Dimensions

ball diameter: 3.0
base diameter: 9.5
length 1: 51.5
length 2: 31.5
stem diameter: 2.0

Materials

ball material: Ruby
base material: Stainless Steel
stem material: Carbide
