TM4-3020-S-SN
TM4-3020-S-SN

TM4-3020-S-SN

$70.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
 {% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

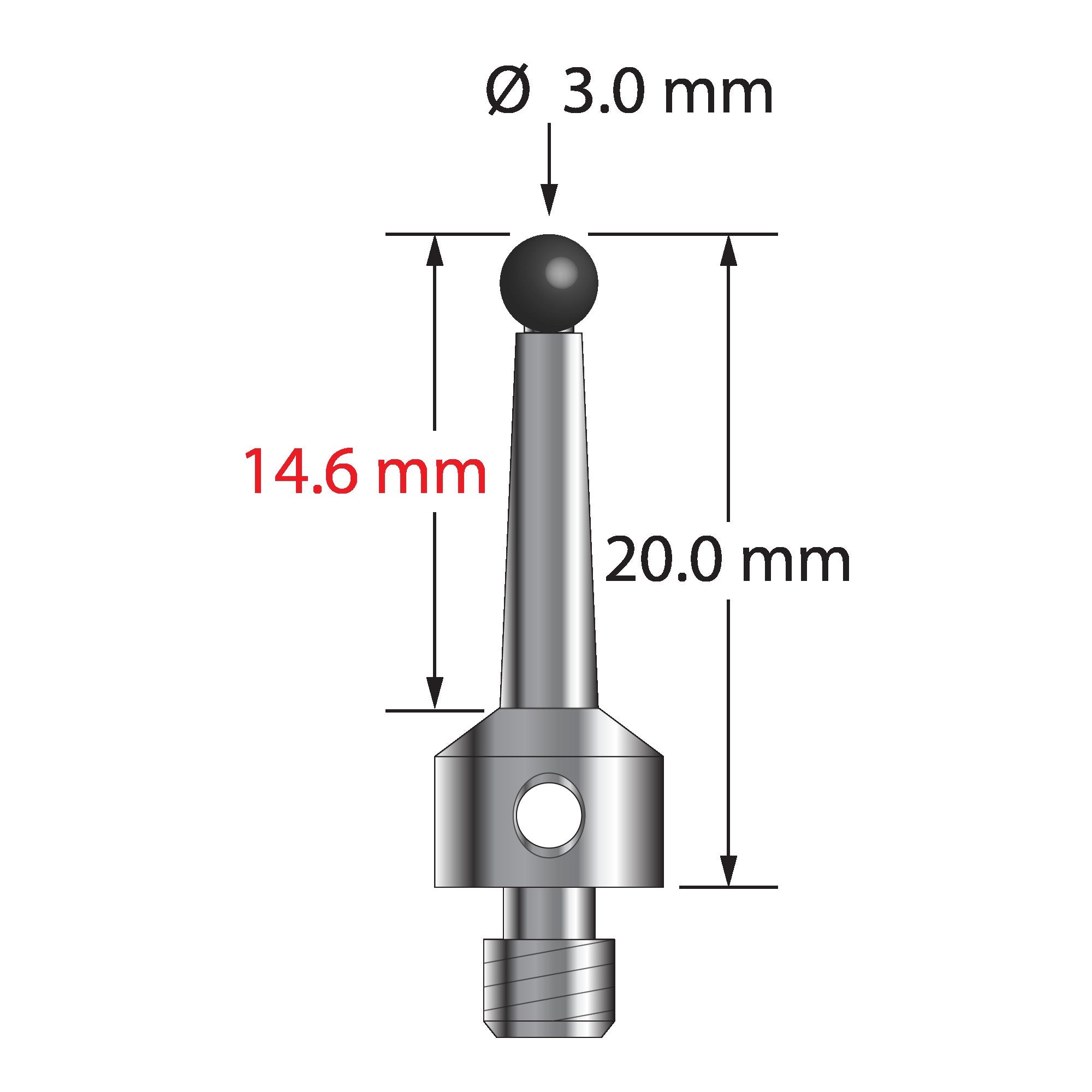

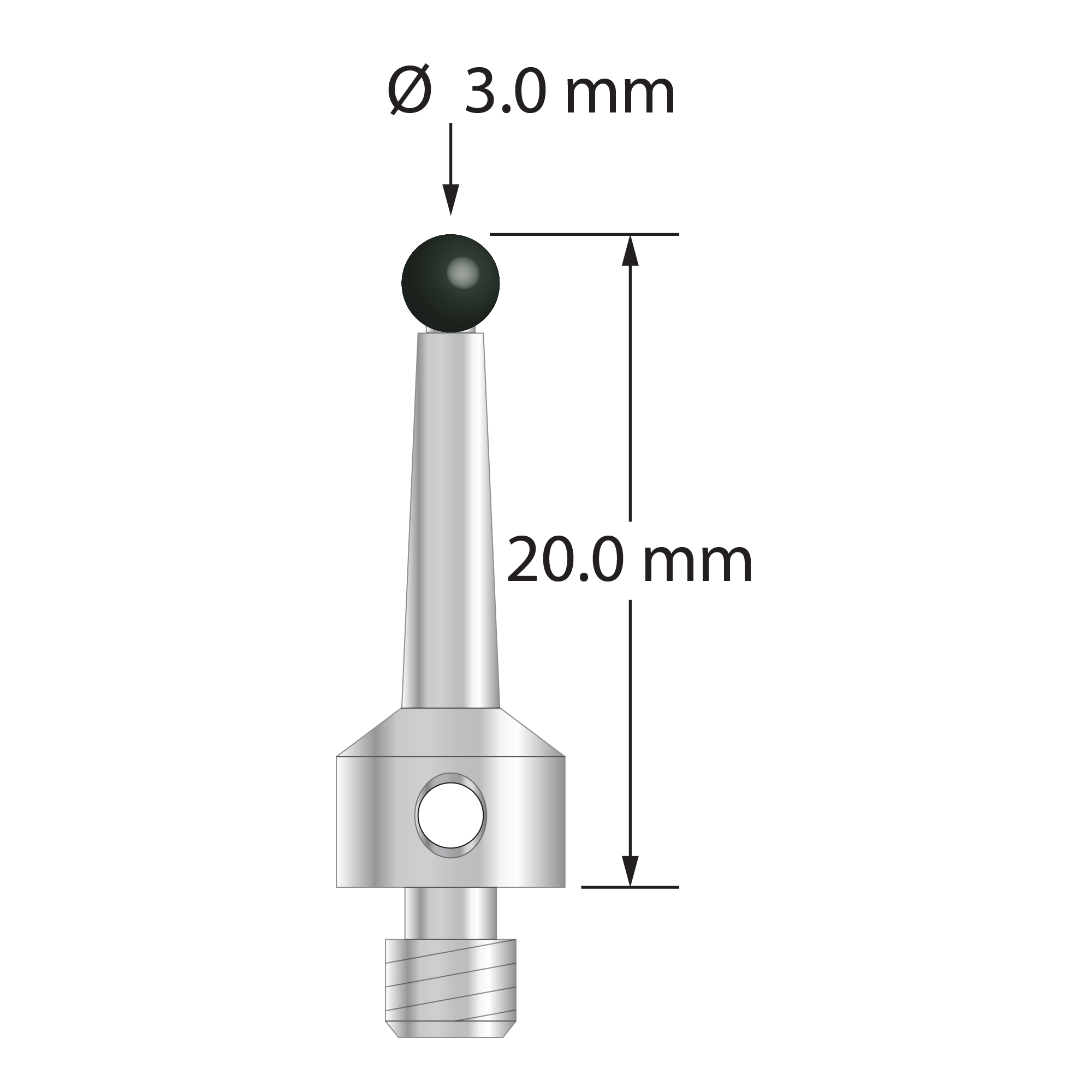

M4 stylus with 3.0 mm diameter silicon nitride ball, tapered stainless steel stem, and 7.0 mm diameter stainless steel base. Overall stylus length is 20.0 mm. Stylus weight is 2.04 grams.

Dimensions

ball diameter: 3.0
base diameter: 7.0
length 1: 20.0
length 2: 14.6

Materials

ball material: Silicon Nitride
base material: Stainless Steel
stem material: Stainless Steel
