TM4-2051-C-BL-TC50/51

Name: TM4-2051-C-BL-TC50/51
Brand: Q-Mark Manufacturing Inc.
Price: 185.0 USD
Availability: InStock

$185.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

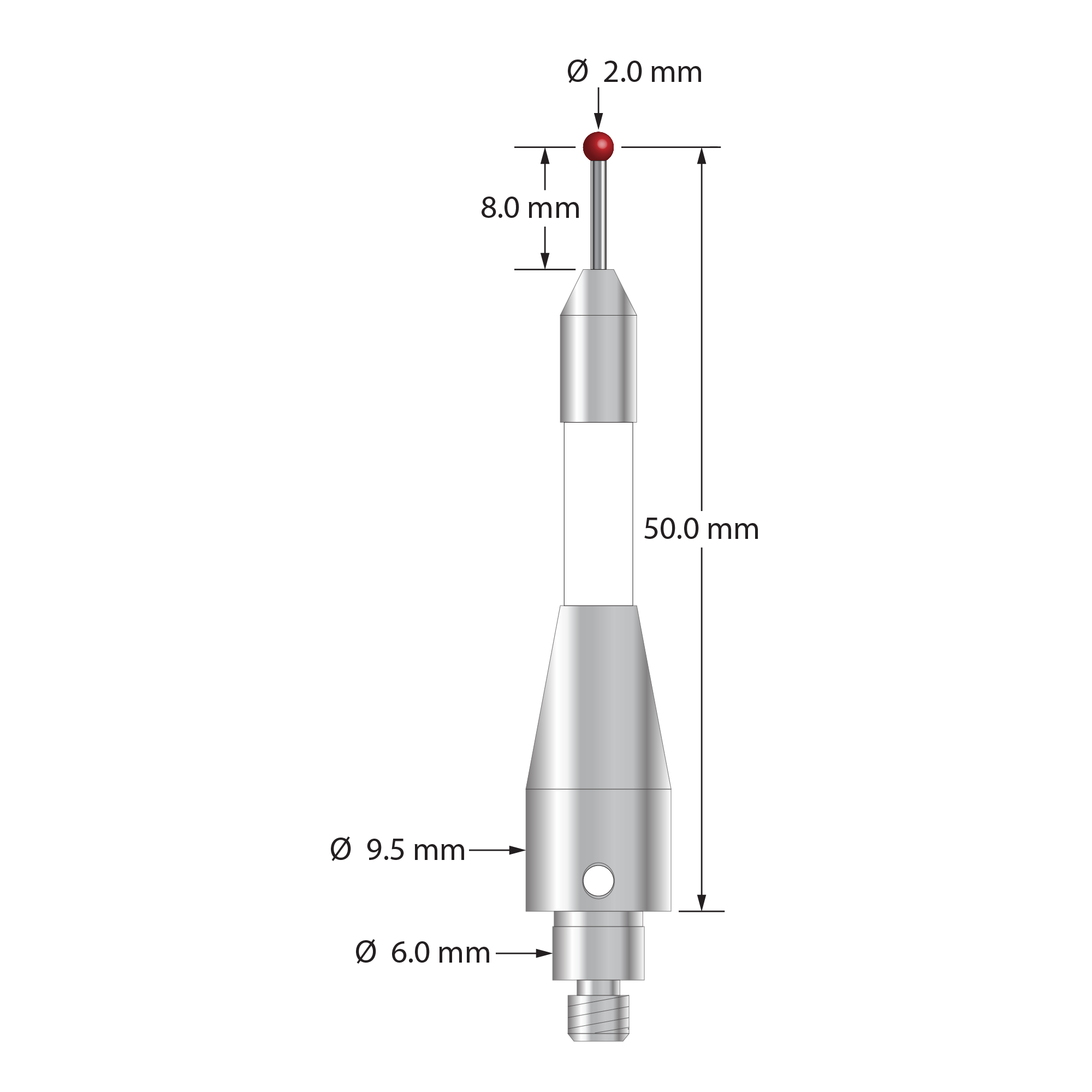

M4 stylus for Blum probe system with 2.0 mm diameter ruby ball, 9.5 mm diameter stainless steel base, ceramic body, and 1.2 mm diameter carbide stem. Stylus length to ball center is 50.0 mm. Compare to Blum part number P03.8000-010.050.02.

Dimensions

ball diameter: 2.0

base diameter: 9.5

body diameter: 4.5

length 1: 51.0

length 2: 9.0

stem diameter: 1.2

Materials

ball material: Ruby

base material: Stainless Steel

body material: ceramic

stem material: Carbide
