Q-Mark Probe Styli: Orders Placed by Noon PT Ship Out Same-Day* | Ultra-Fast Service | Always Guaranteed | Proudly USA Made

TM4-2020-DS1.5

Name: TM4-2020-DS1.5
Brand: Q-Mark Manufacturing Inc.
Price: 50.0 USD
Availability: InStock

$50.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

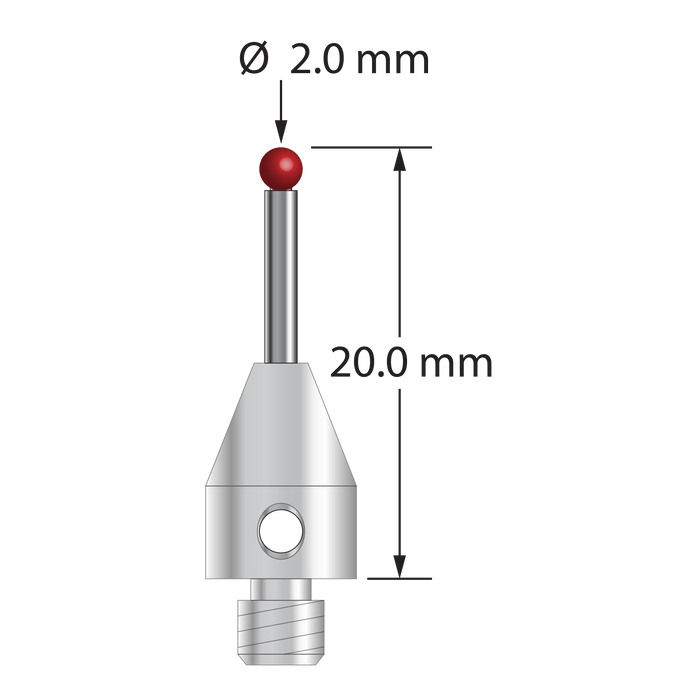

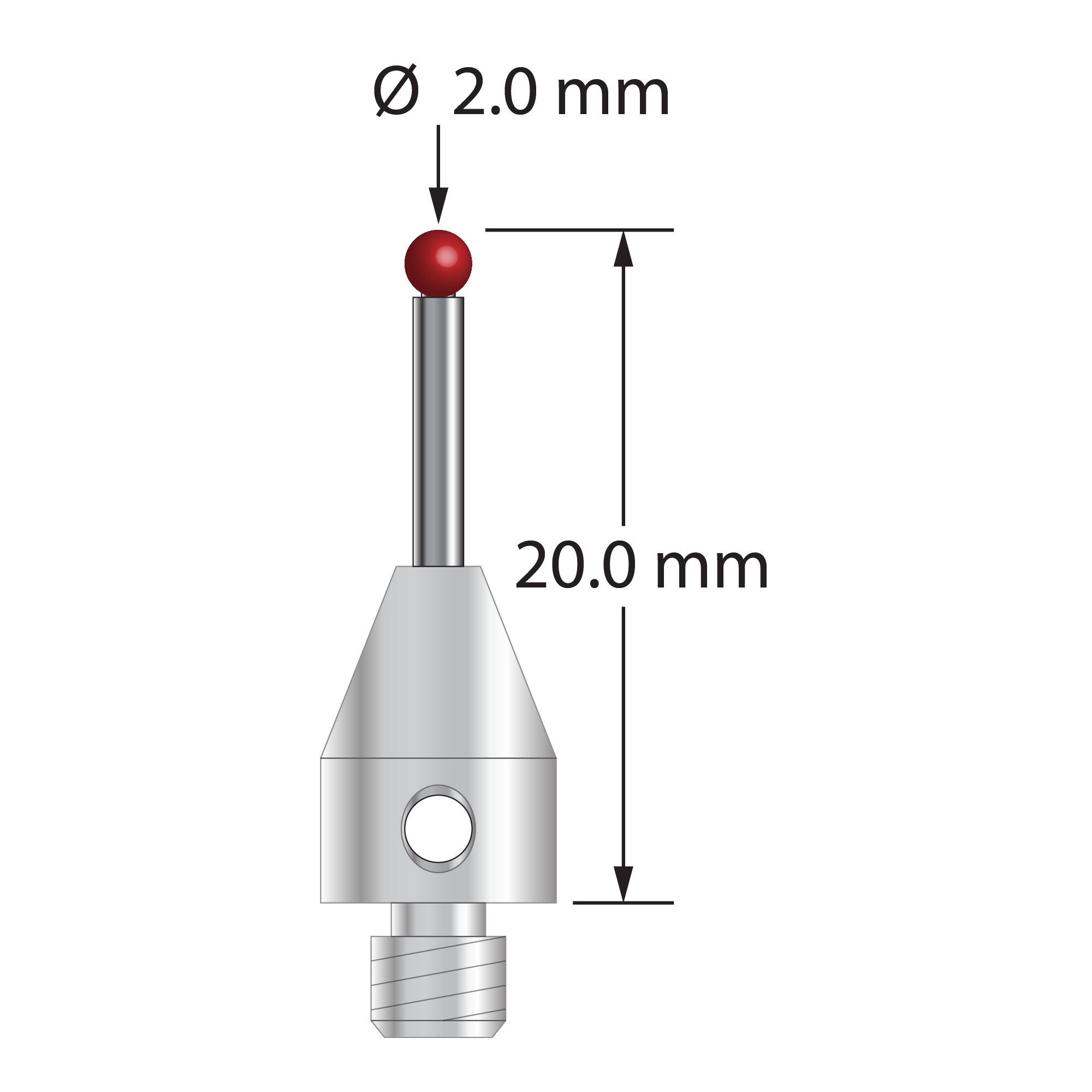

M4 stylus with 2.0 mm diameter ruby ball, 1.5 mm diameter carbide stem, and 7.0 mm diameter x 10.0 mm long stainless steel base. Overall stylus length is 20.0 mm. Stylus weight is 2.42 grams.

Dimensions

ball diameter: 2.0

base diameter: 7.0

length 1: 20.0

length 2: 10.0

stem diameter: 1.5

Materials

ball material: Ruby

base material: Stainless Steel

stem material: Carbide
