TM4-20101-C-BL-TC50/51
TM4-20101-C-BL-TC50/51

TM4-20101-C-BL-TC50/51

$195.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
 {% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

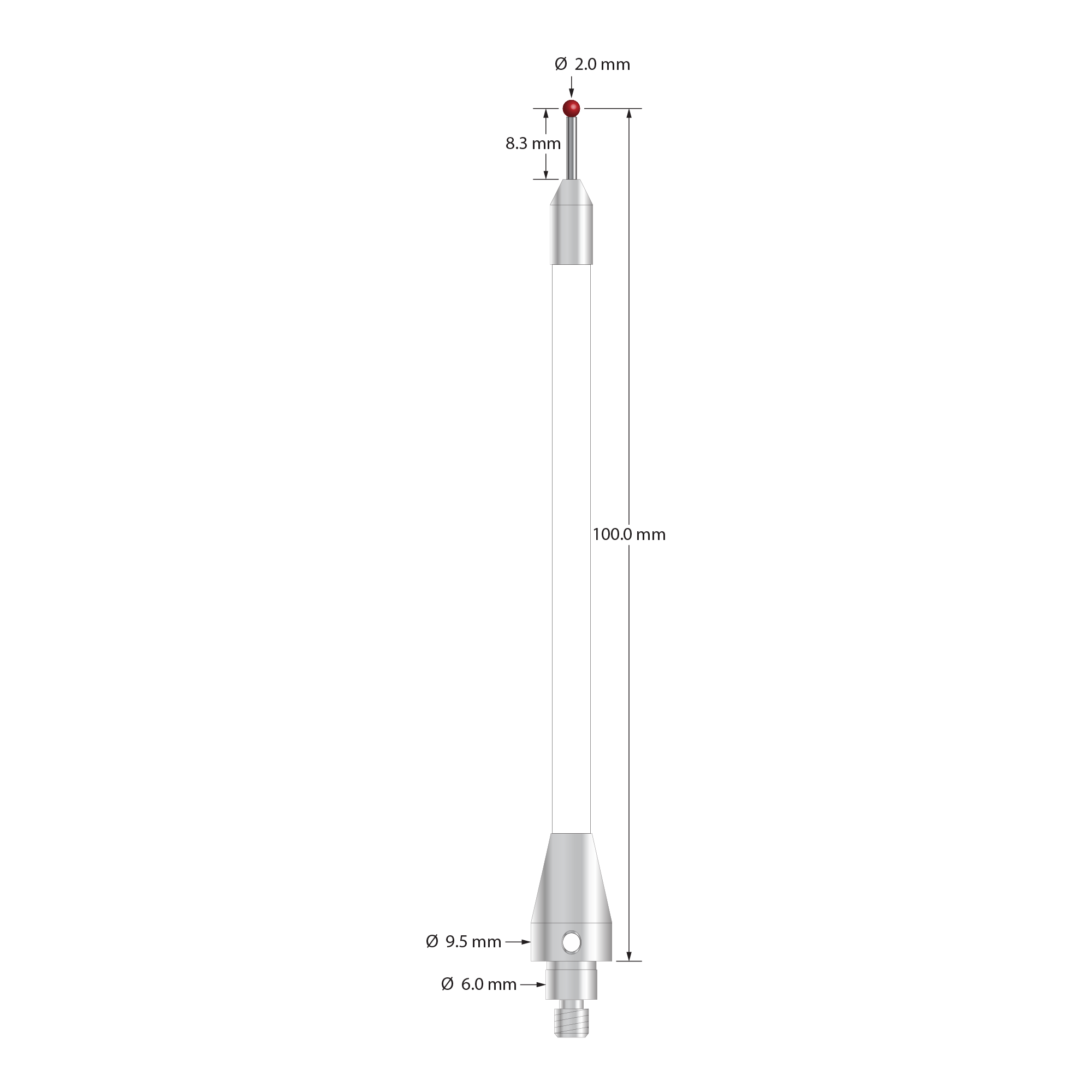

M4 stylus for Blum probe. 2.0 mm diameter ruby ball, 1.2 mm diameter carbide stem, ceramic body, and stainless steel fittings.  Stylus length to ball center is 100.0 mm.  Compare to Blum P03.8000-010.100.02.

Dimensions

ball diameter: 2.0
base diameter: 9.5
length 1: 100.5
length 2: 8.8
stem diameter: 1.2

Materials

ball material: Ruby
base material: Stainless Steel
body material: ceramic
stem material: Carbide
