TM4-1020-S

Name: TM4-1020-S
Brand: Q-Mark Manufacturing Inc.
Price: 80.0 USD
Availability: InStock

$80.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

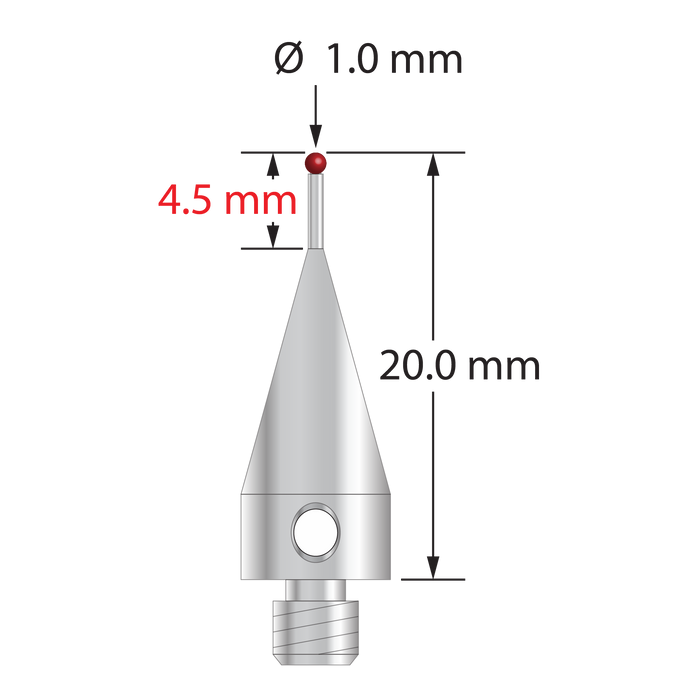

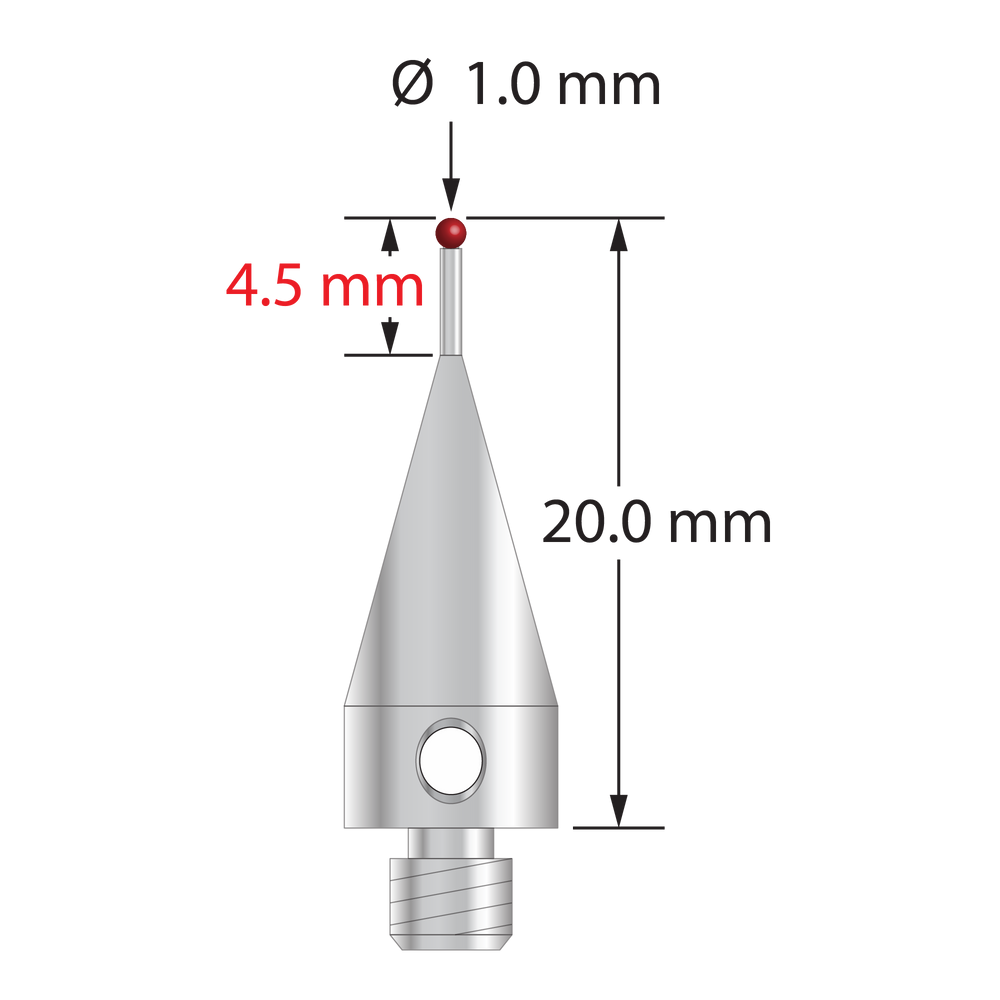

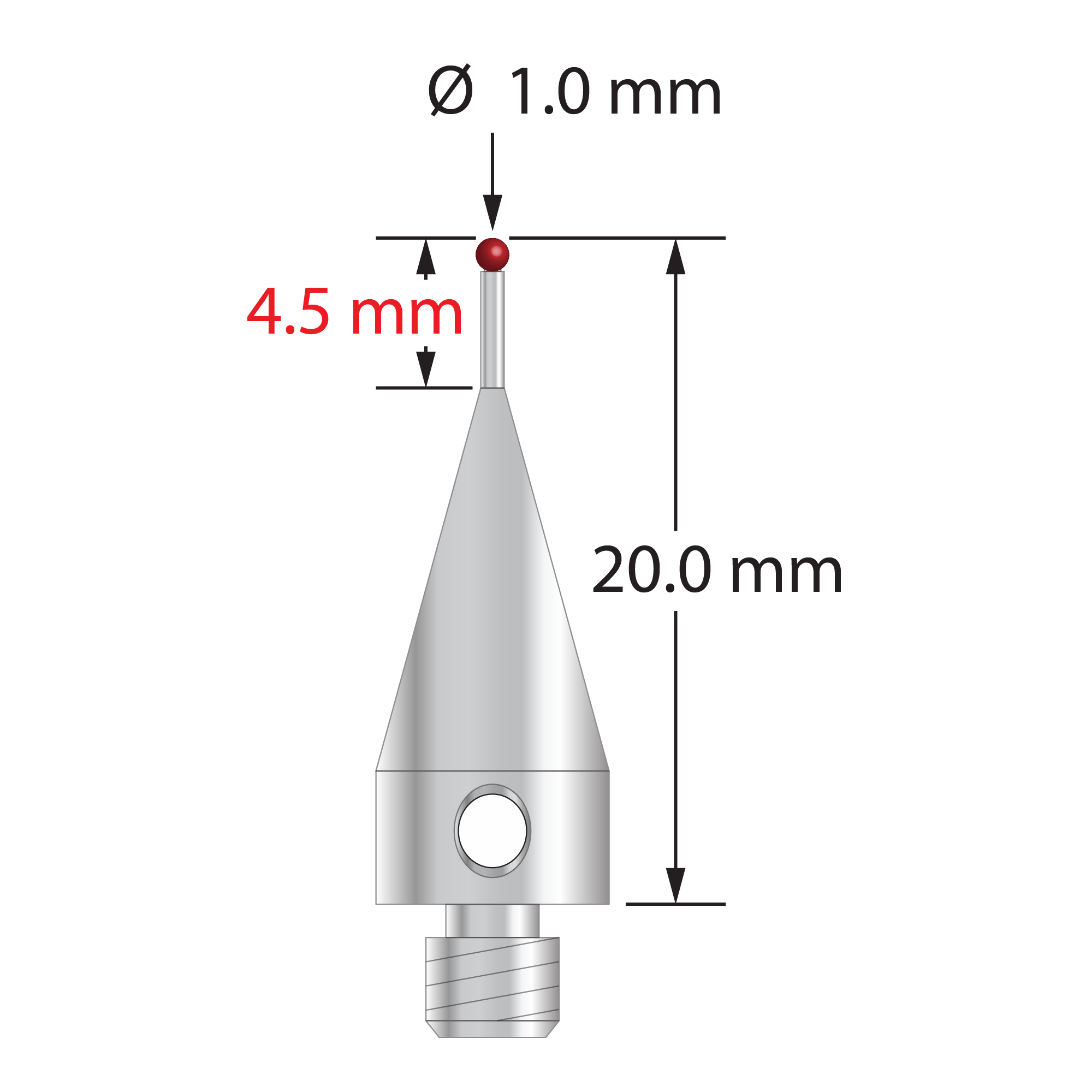

M4 stylus with 1.0 mm diameter ruby ball, 0.7 mm diameter stainless steel stem, and 7.0 mm diameter stainless steel base. Overall stylus length is 20.0 mm. Stylus weight is 2.64 grams. Compare to Renishaw A-5000-7545 and Mitutoyo K651186.

Dimensions

ball diameter: 1.0

base diameter: 7.0

length 1: 20.0

length 2: 4.5

stem diameter: 0.7

Materials

ball material: Ruby

base material: Stainless Steel

stem material: Stainless Steel
