Q-Mark Probe Styli: Orders Placed by Noon PT Ship Out Same-Day* | Ultra-Fast Service | Always Guaranteed | Proudly USA Made

TM3-8079-G

Name: TM3-8079-G
Brand: Q-Mark Manufacturing Inc.
Price: 130.0 USD
Availability: InStock

$130.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

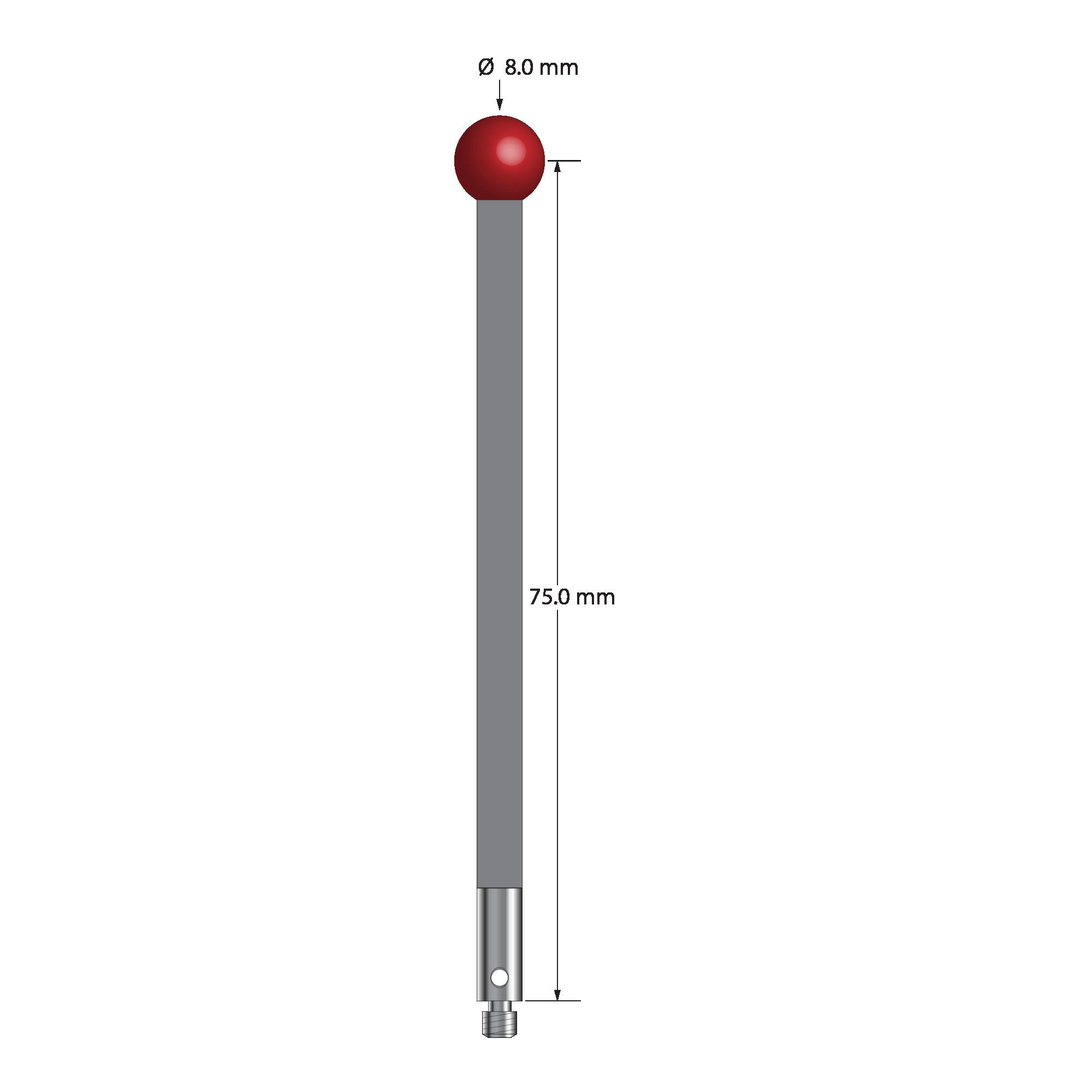

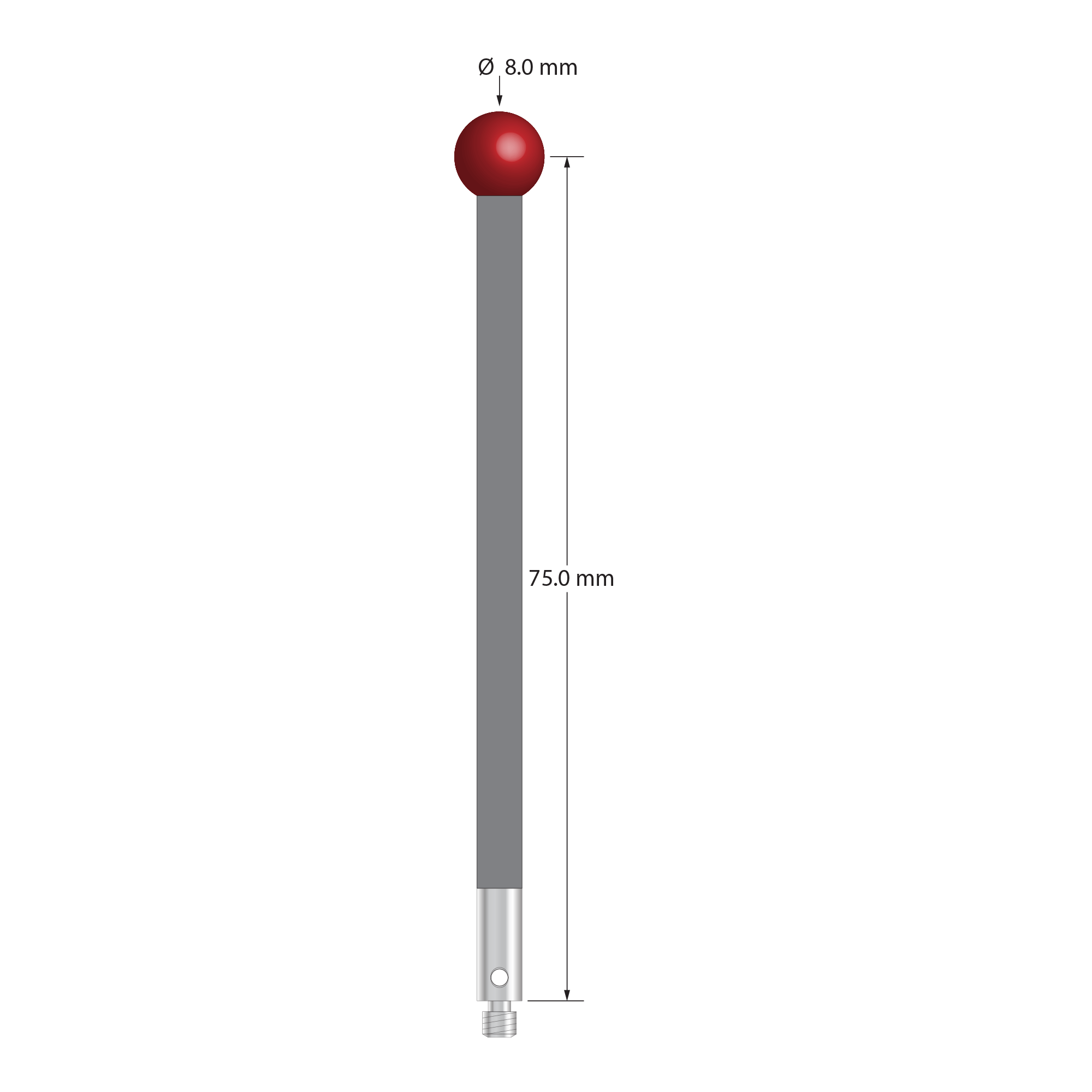

M3 stylus with 8.0 mm diameter ruby ball, 4.0 mm diameter carbon fiber stem, and 4.0 mm diameter x 10.0 mm long stainless steel base. Stylus length to ball center is 75.0 mm. Stylus weight is 2.53 grams. Compare to Renishaw A-5003-4862, Mitutoyo K651308, and Hexagon M00-694-241-000.

Dimensions

ball diameter: 8.0

base diameter: 4.0

length 1: 79.0

length 2: 69.0

stem diameter: 4.0

Materials

ball material: Ruby

base material: Stainless Steel

stem material: Carbon Fiber
