TM3-8050-TX

Name: TM3-8050-TX
Brand: Q-Mark Manufacturing Inc.
Price: 160.0 USD
Availability: InStock

$160.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

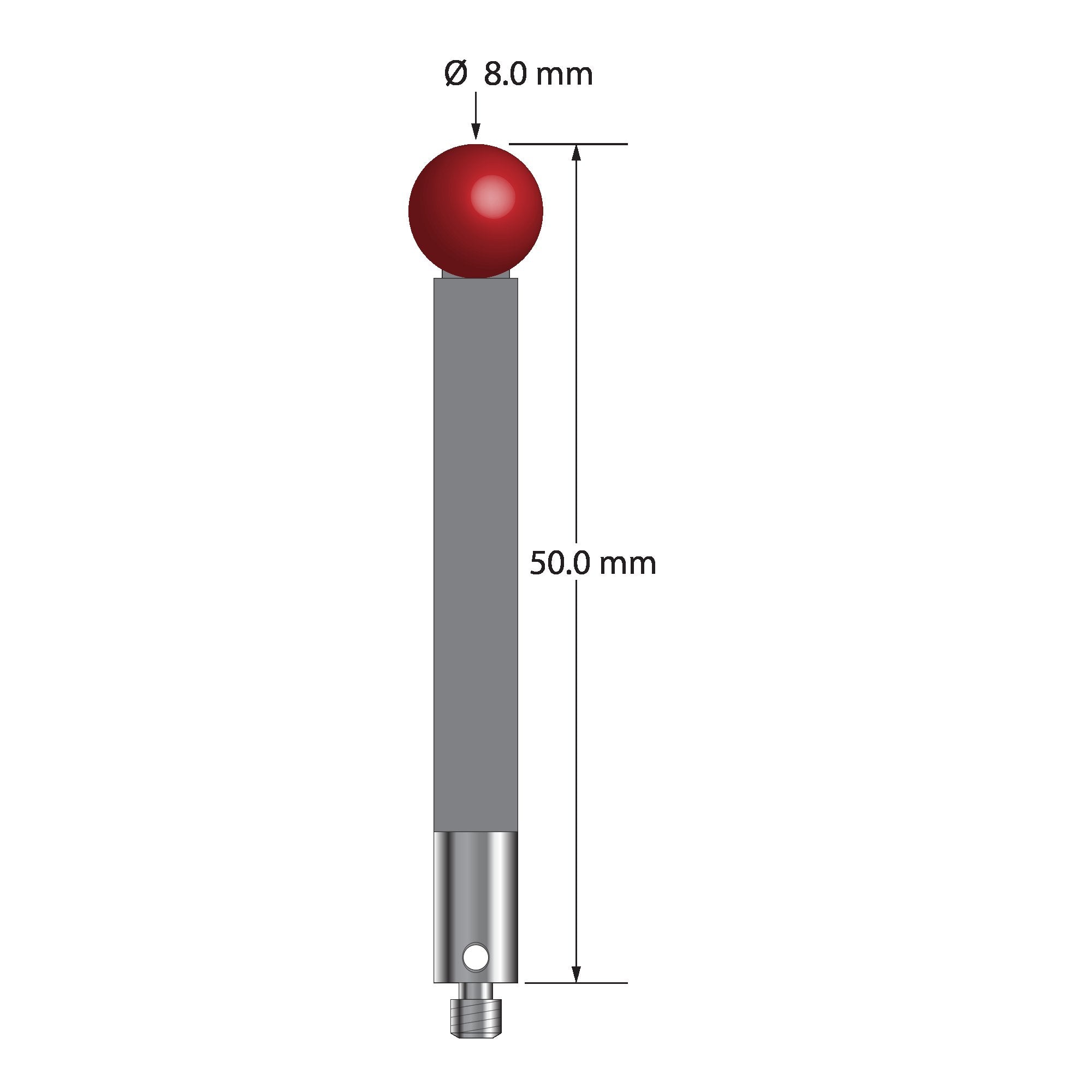

M3 stylus with 8.0 mm diameter ruby ball, 5.0 mm diameter carbon fiber stem, and 5.0 mm diameter x 9.0 mm long titanium base. Overall stylus length is 50.0 mm. Stylus weight is 2.34 grams. Compare to Zeiss 626103-0830-050 and Renishaw A-5555-3867.

Dimensions

ball diameter: 8.0

base diameter: 5.0

length 1: 50.0

length 2: 41.0

stem diameter: 5.0

Materials

ball material: Ruby

base material: Titanium

stem material: Carbon Fiber
