TM3-8015-SN

Name: TM3-8015-SN
Brand: Q-Mark Manufacturing Inc.
Price: 140.0 USD
Availability: InStock

$140.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

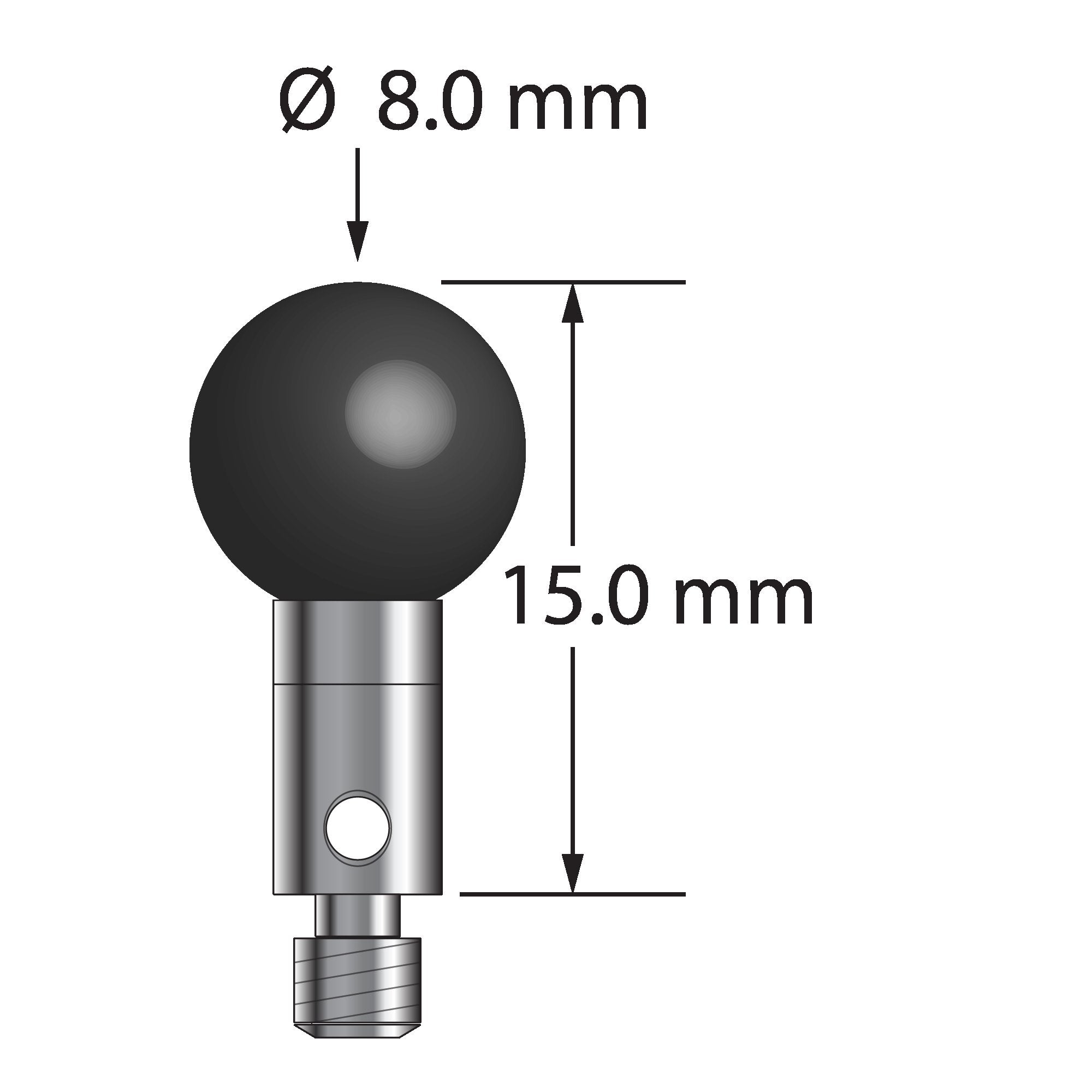

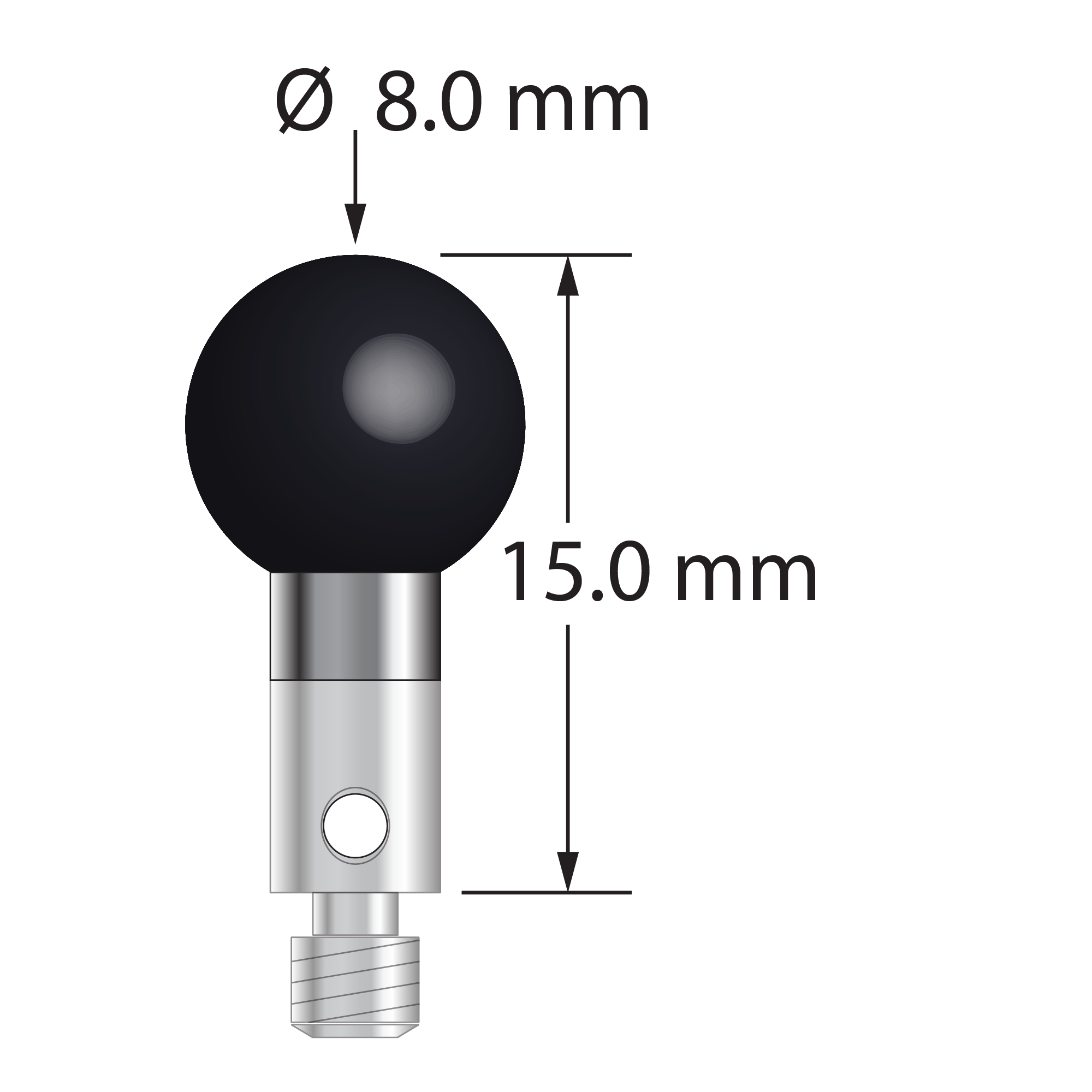

M3 stylus with 8.0 mm diameter silicon nitride ball, 4.0 mm diameter carbide stem, and 4.0 mm diameter x 5.0 mm long stainless steel base. Overall stylus length is 15.0 mm. Stylus weight is 2.65 grams.

Dimensions

ball diameter: 8.0

base diameter: 4.0

length 1: 15.0

length 2: 10.0

stem diameter: 4.0

Materials

ball material: Silicon Nitride

base material: Stainless Steel

stem material: Carbide
