TM3-80104-G-SN

$170.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
{% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

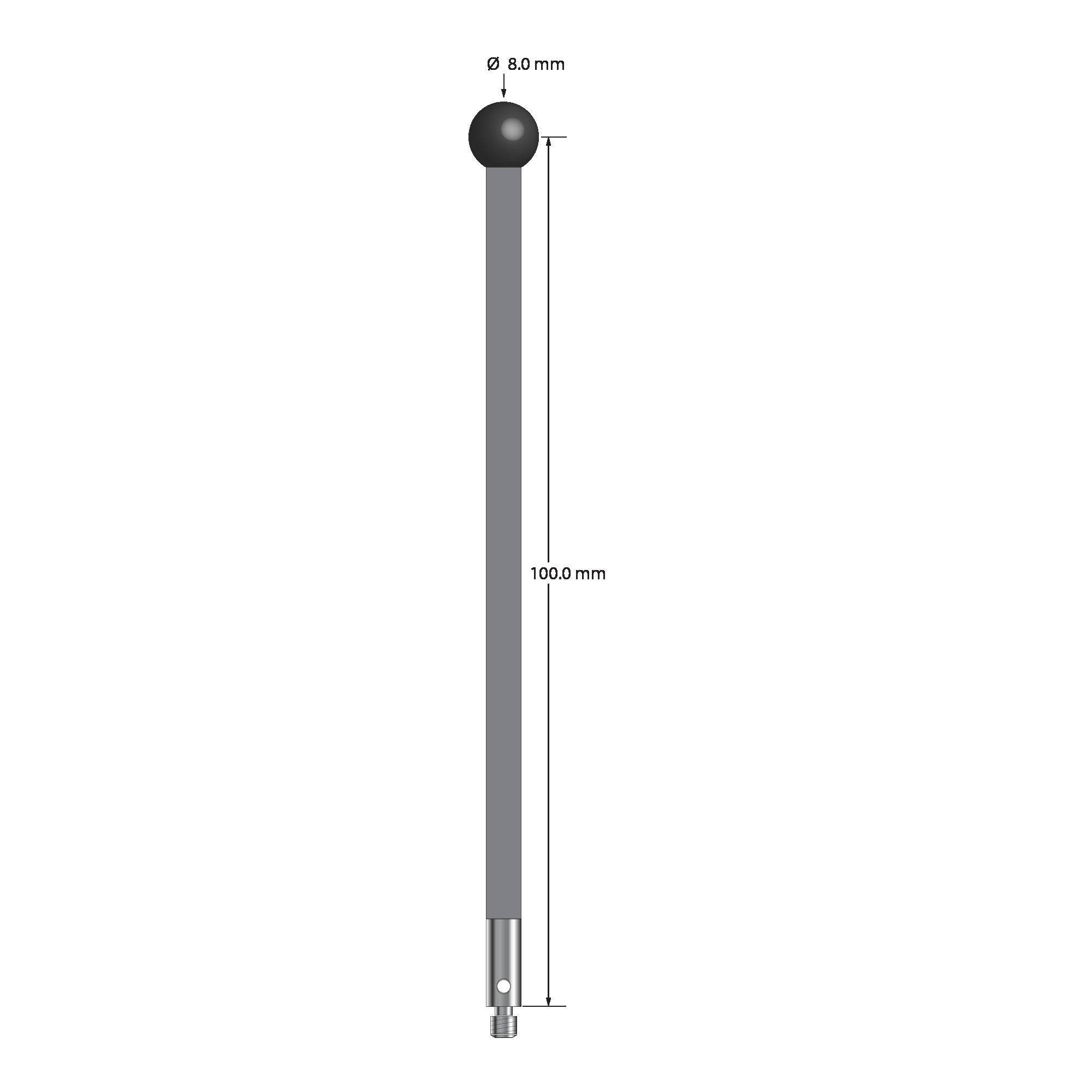

M3 stylus with 8.0 mm diameter silicon nitride ball, 4.0 mm diameter carbon fiber stem, and 4.0 mm diameter x 10.0 mm long stainless steel base. Stylus length to ball center is 100.0 mm. Stylus weight is 3.01 grams. Compare to Renishaw A-5004-5466.

Dimensions

ball diameter: 8.0
base diameter: 4.0
length 1: 104.0
length 2: 94.0
stem diameter: 4.0

Materials

ball material: Silicon Nitride
base material: Stainless Steel
stem material: Carbon Fiber
