TM3-80100-TX

$185.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
{% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

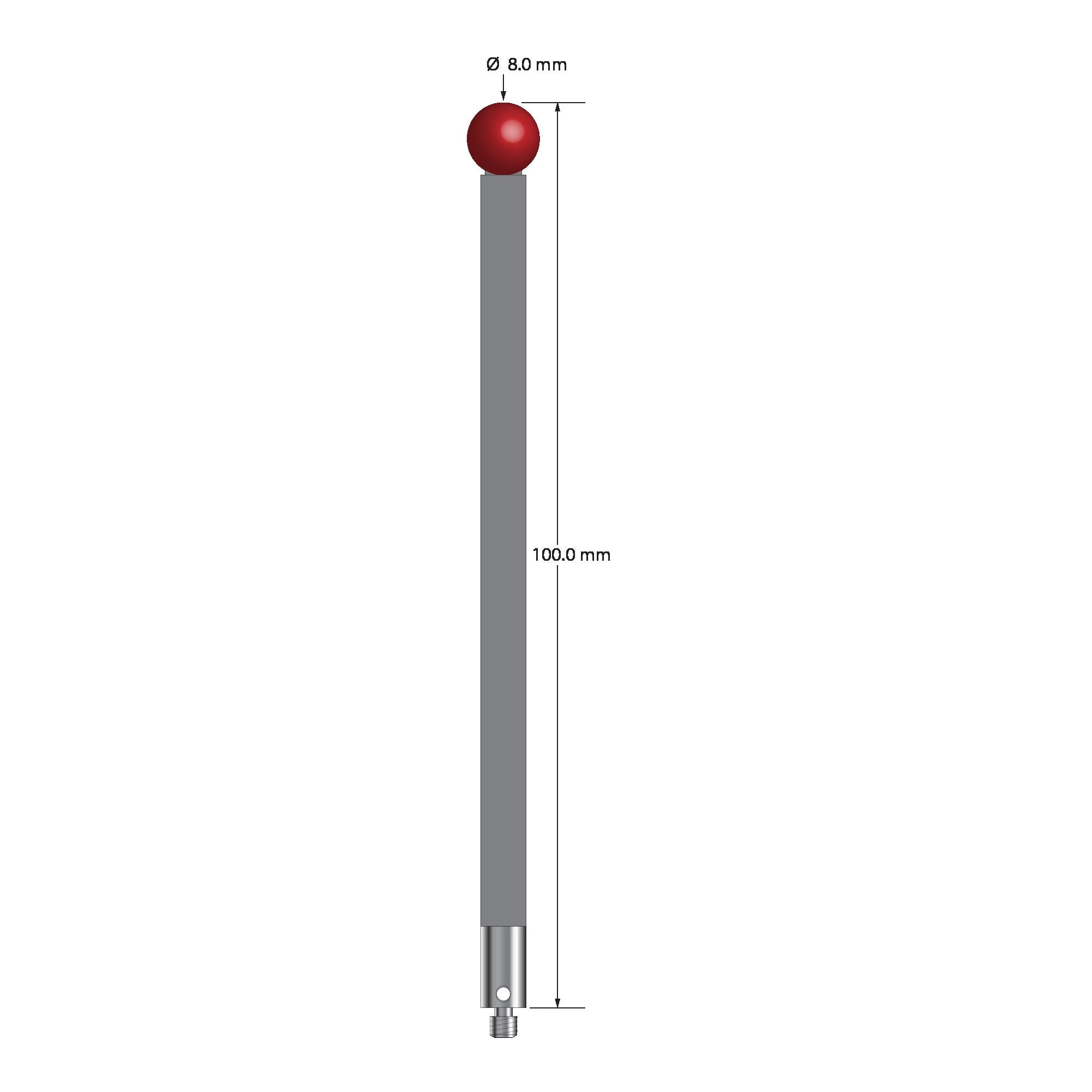

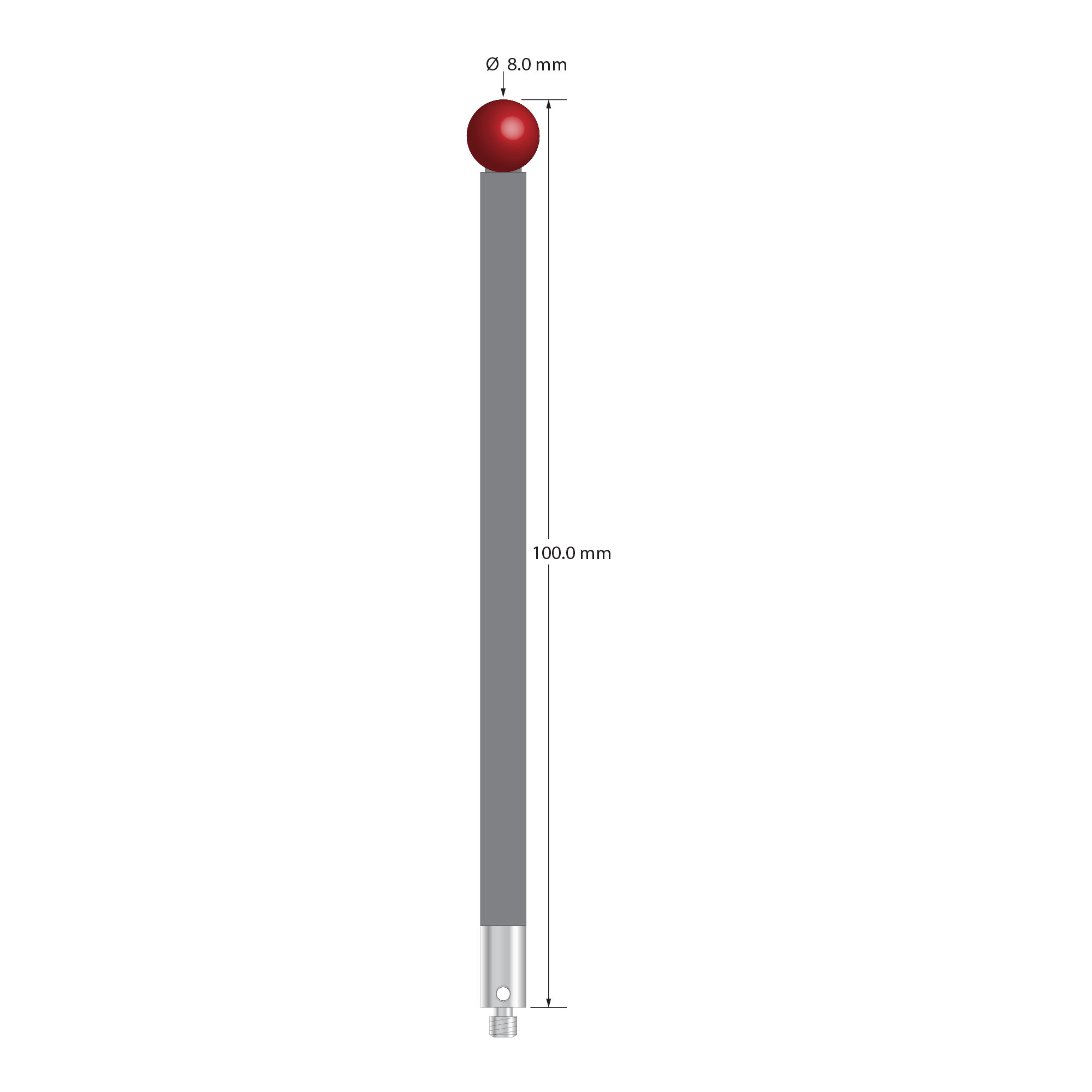

M3 stylus with 8.0 mm diameter ruby ball, 5.0 mm diameter carbon fiber stem, and 5.0 mm diameter x 9.0 mm long titanium base.  Overall stylus length is 100.0 mm.  Stylus weight is 3.84 grams.  Compare to Zeiss 626103-0800-100 and Renishaw A-5555-3869.

Dimensions

ball diameter: 8.0
base diameter: 5.0
length 1: 100.0
length 2: 91.0
stem diameter: 5.0

Materials

ball material: Ruby
base material: Titanium
stem material: Carbon Fiber
