TM3-6078-G-SN

Name: TM3-6078-G-SN
Brand: Q-Mark Manufacturing Inc.
Price: 128.0 USD
Availability: InStock

$128.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

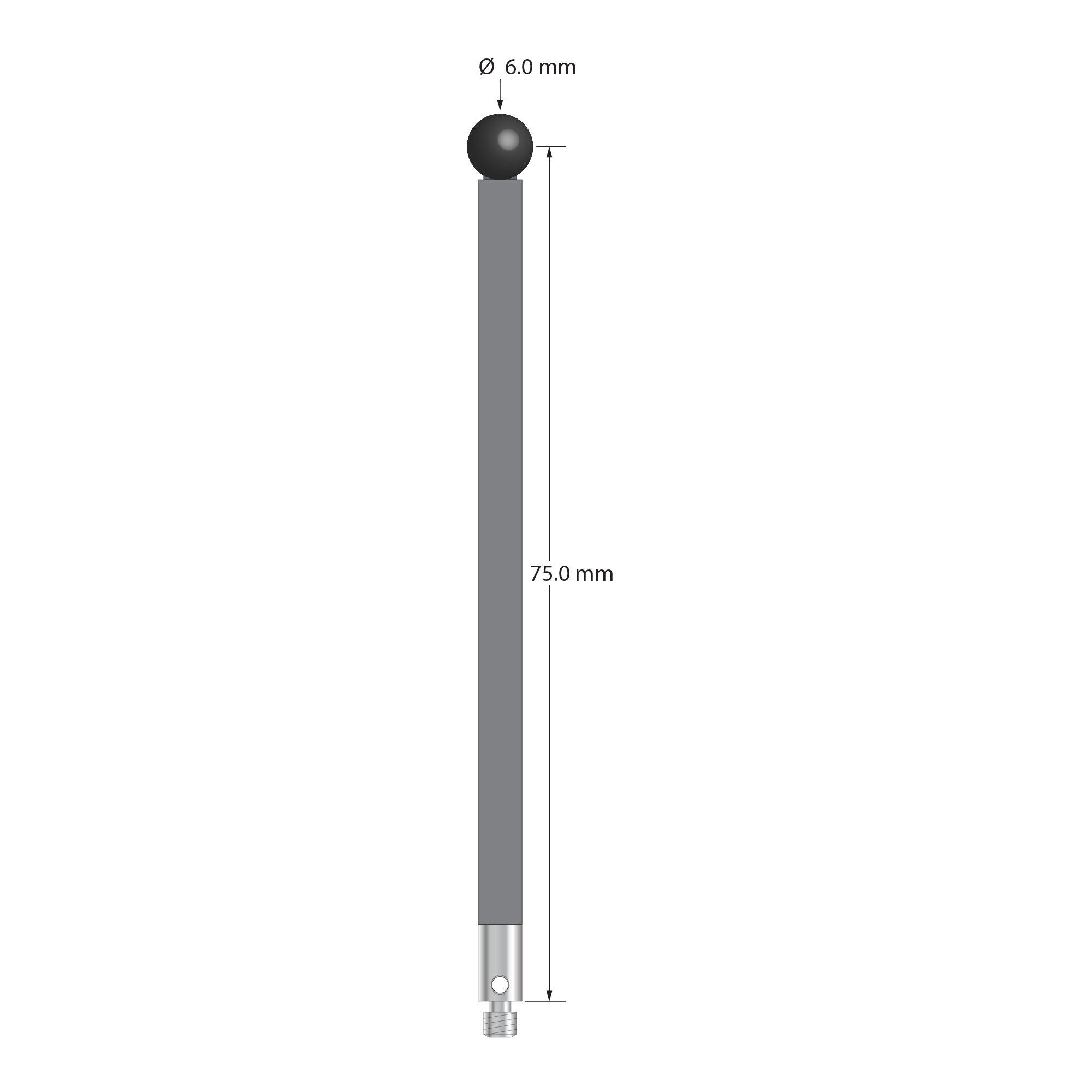

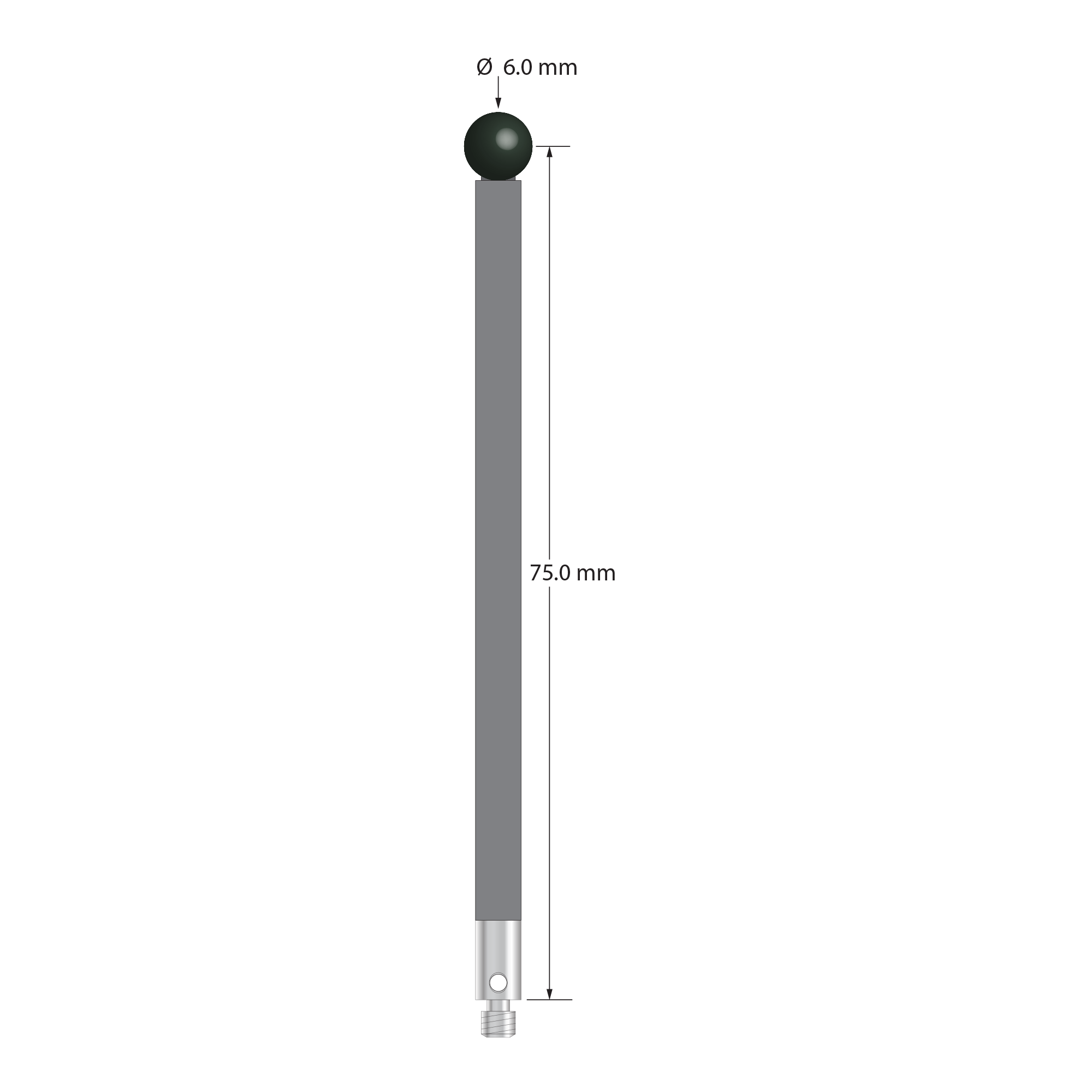

M3 stylus with 6.0 mm silicon nitride ball, 4.0 mm diameter carbon fiber stem, and 4.0 mm diameter x 10.0 mm long stainless steel base. Stylus length to ball center is 75.0 mm. Stylus weight is 2.09 grams. Compare to Renishaw A-5003-5726.

Dimensions

ball diameter: 6.0

base diameter: 4.0

length 1: 78.0

length 2: 68.0

stem diameter: 4.0

Materials

ball material: Silicon Nitride

base material: Stainless Steel

stem material: Carbon Fiber
