TM3-6010-S-Z
TM3-6010-S-Z

TM3-6010-S-Z

$75.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
 {% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

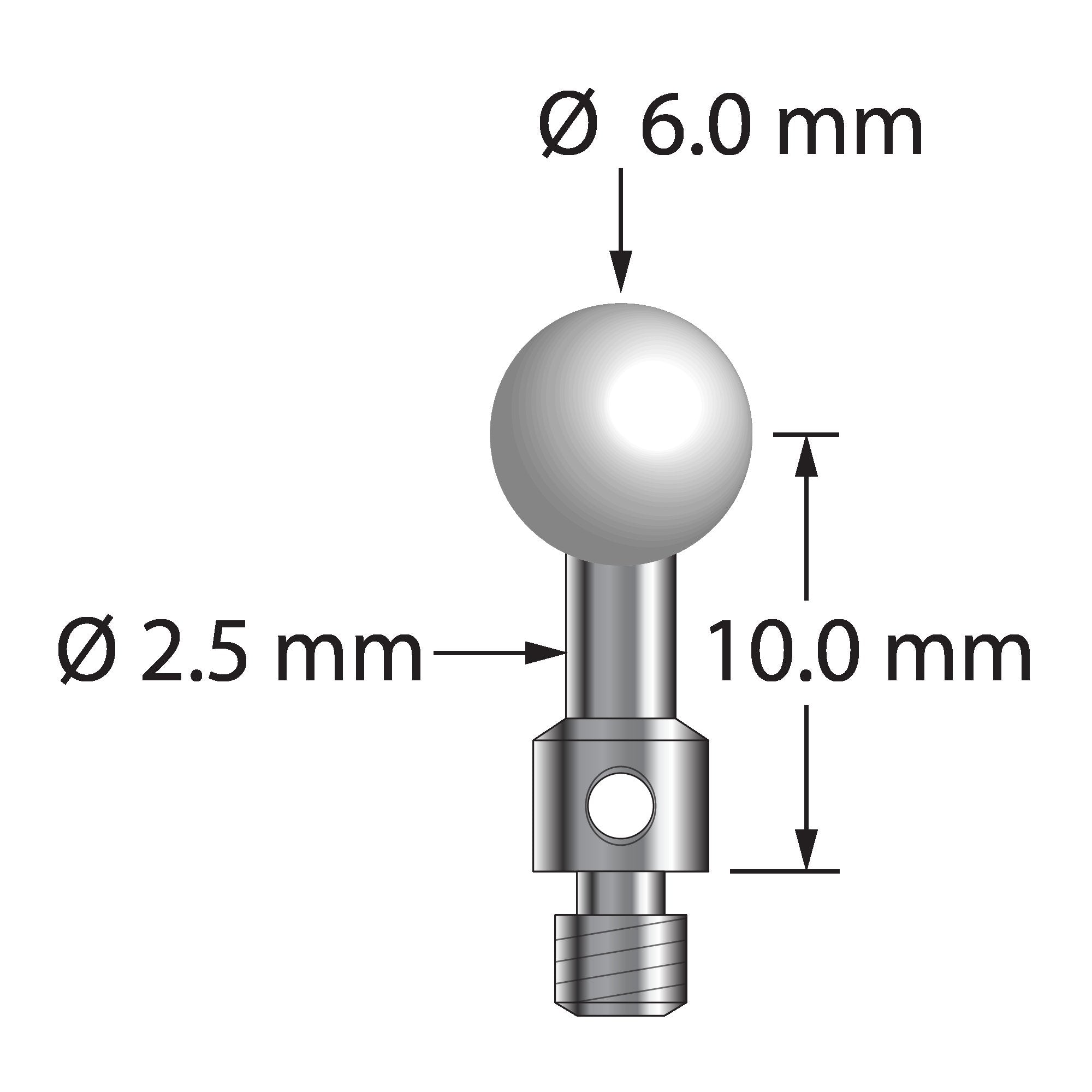

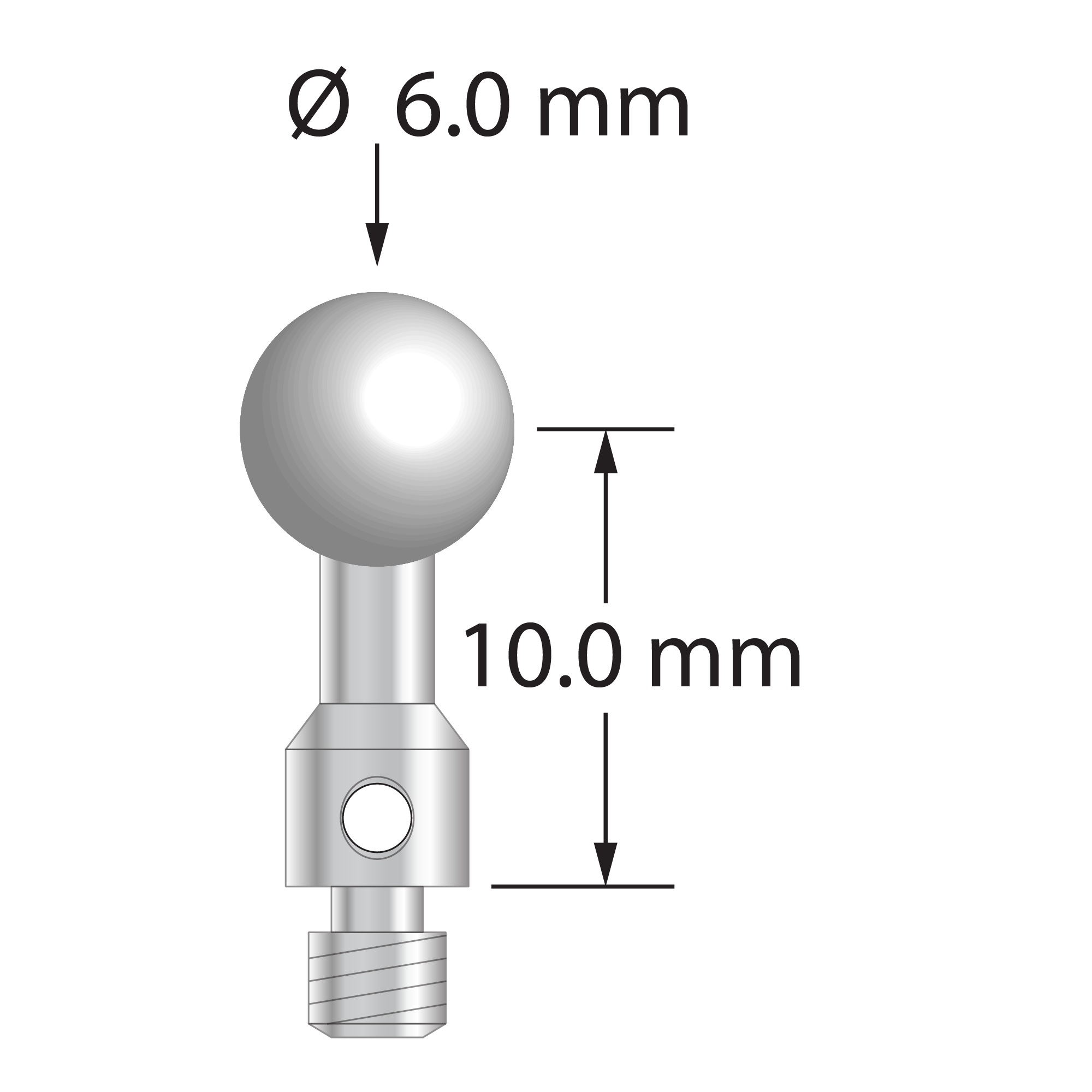

M3 stylus for ROMER arm CMM with 6.0 mm zirconia ball and stainless steel stem.   Stylus length to ball center is 10.0 mm.  Stylus weight is 1.35 grams.

Dimensions

ball diameter: 6.0
base diameter: 4.0
length 1: 13.0
length 2: 9.0
stem diameter: 2.5

Materials

ball material: Zirconia
base material: Stainless Steel
stem material: Stainless Steel
