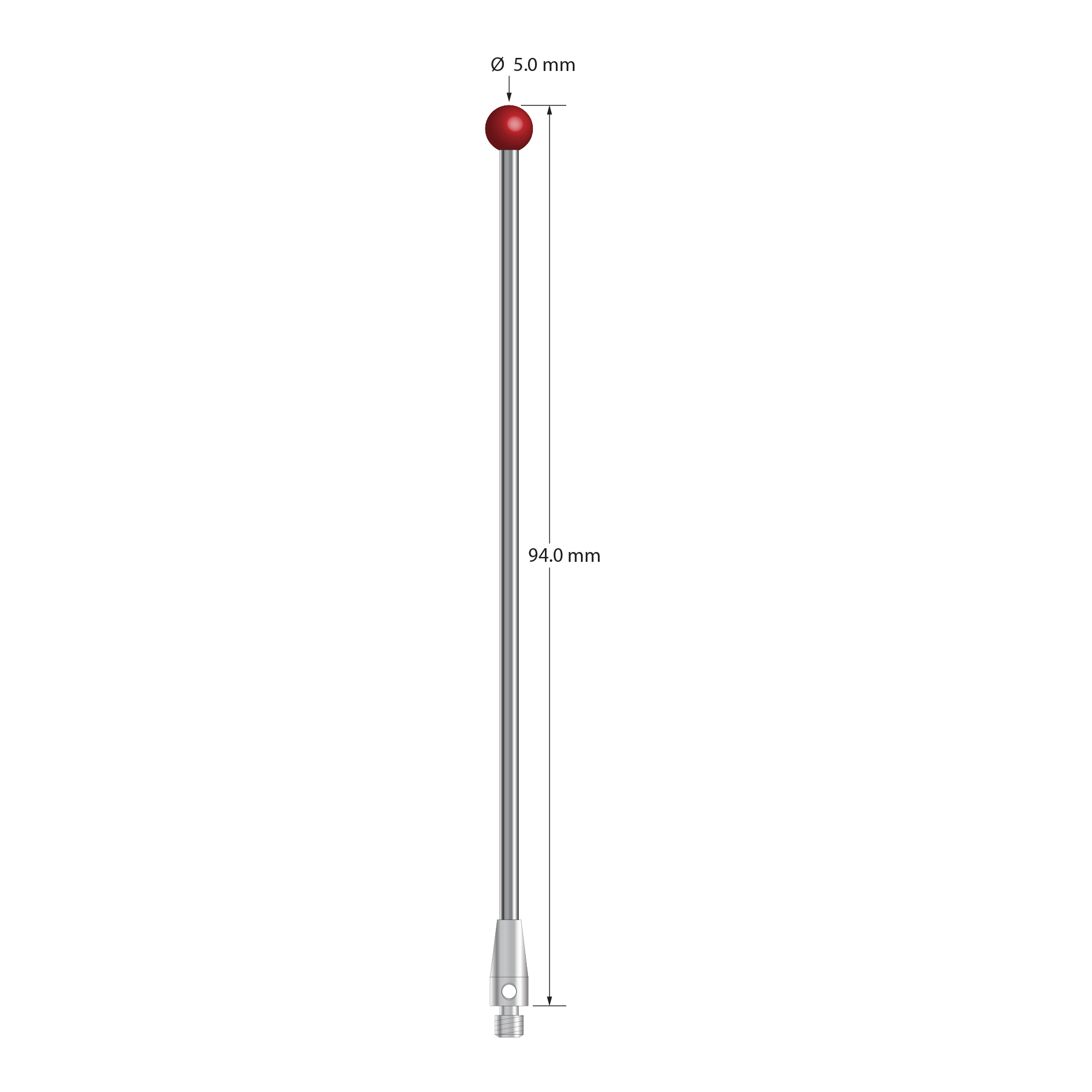

M3 XXT stylus with 5.0 mm diameter ruby ball, 2.0 mm diameter carbide stem, and 5.0 mm diameter x 9.0 mm long titanium base. Overall stylus length is 94.0 mm. Stylus weight is 4.48 grams. Compare to Zeiss 626113-0500-094.
M3 XXT stylus with 5.0 mm diameter ruby ball, 2.0 mm diameter carbide stem, and 5.0 mm diameter x 9.0 mm long titanium base. Overall stylus length is 94.0 mm. Stylus weight is 4.48 grams. Compare to Zeiss 626113-0500-094.

TM3-5094-DS2-TX

$105.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
 {% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

M3 XXT stylus with 5.0 mm diameter ruby ball, 2.0 mm diameter carbide stem, and 5.0 mm diameter x 9.0 mm long titanium base. Overall stylus length is 94.0 mm. Stylus weight is 4.48 grams. Compare to Zeiss 626113-0500-094.

Dimensions

ball diameter: 5.0
base diameter: 5.0
length 1: 94.0
length 2: 85.0
stem diameter: 2.0

Materials

ball material: Ruby
base material: Titanium
stem material: Carbide
