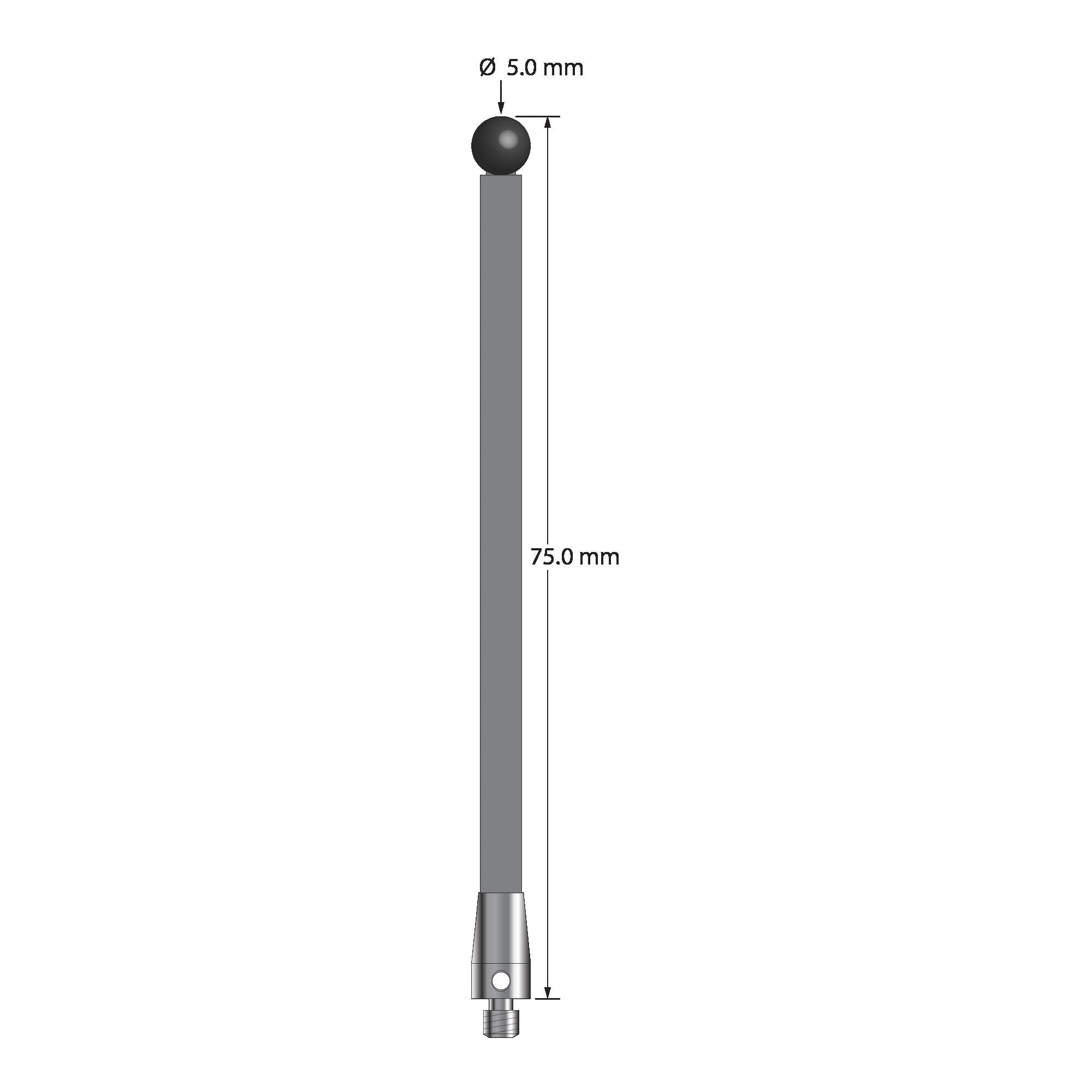

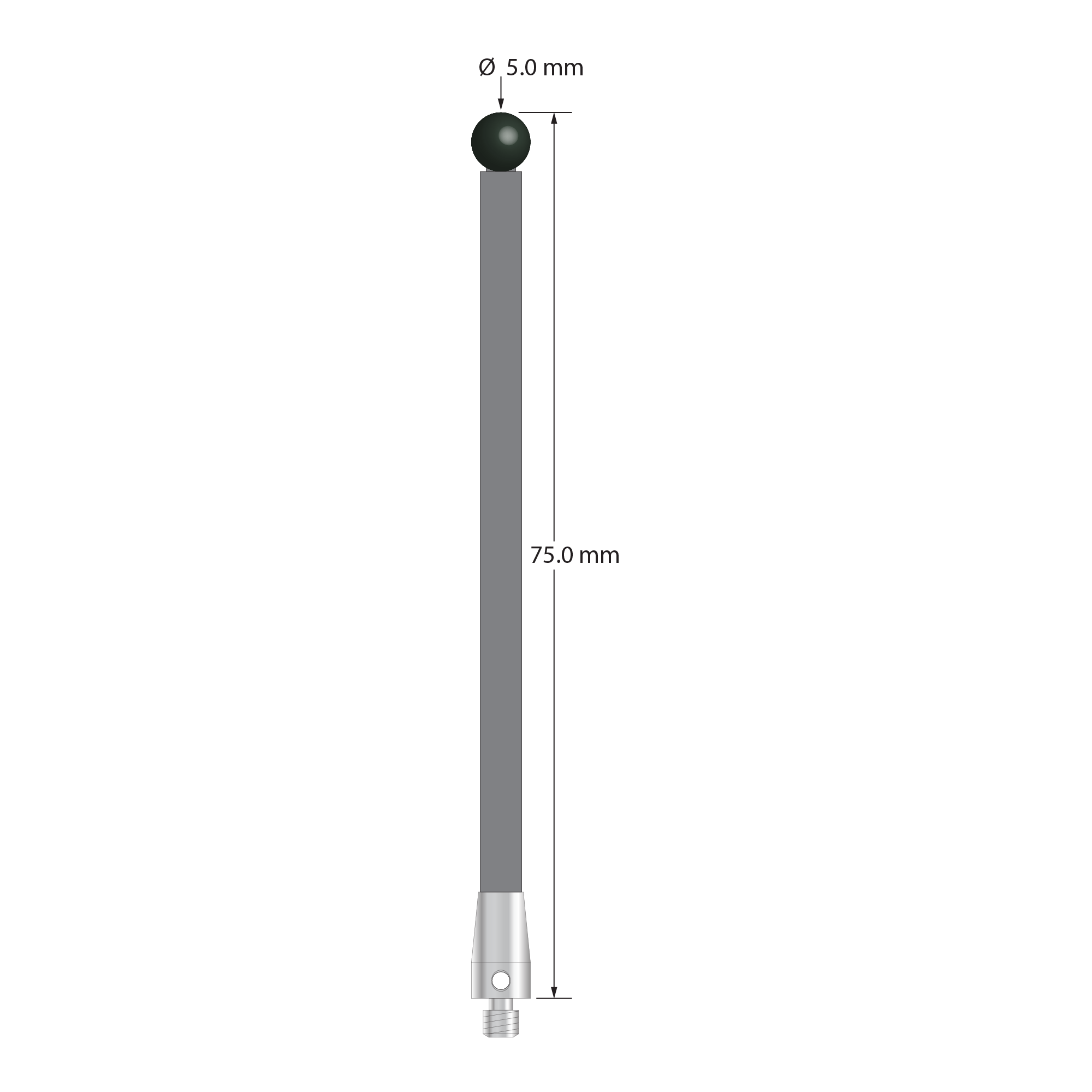

M3 stylus with 5.0 mm diameter silicon nitride ball, 3.5 mm diameter carbon fiber stem, and 5.0 mm diameter x 9.0 mm long titanium base. Overall stylus length is 75.0 mm. Stylus weight is 1.47 grams. Compare to Zeiss 626103-0500-075.

TM3-5075-TX-SN

Name: TM3-5075-TX-SN
Brand: Q-Mark Manufacturing Inc.
Price: 170.0 USD
Availability: InStock

$170.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

M3 stylus with 5.0 mm diameter silicon nitride ball, 3.5 mm diameter carbon fiber stem, and 5.0 mm diameter x 9.0 mm long titanium base. Overall stylus length is 75.0 mm. Stylus weight is 1.47 grams. Compare to Zeiss 626103-0500-075.

Dimensions

ball diameter: 5.0

base diameter: 5.0

length 1: 75.0

length 2: 66.0

stem diameter: 3.5

Materials

ball material: Silicon Nitride

base material: Titanium

stem material: Carbon Fiber
