TM3-5050-SN

Name: TM3-5050-SN
Brand: Q-Mark Manufacturing Inc.
Price: 88.0 USD
Availability: InStock

$88.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

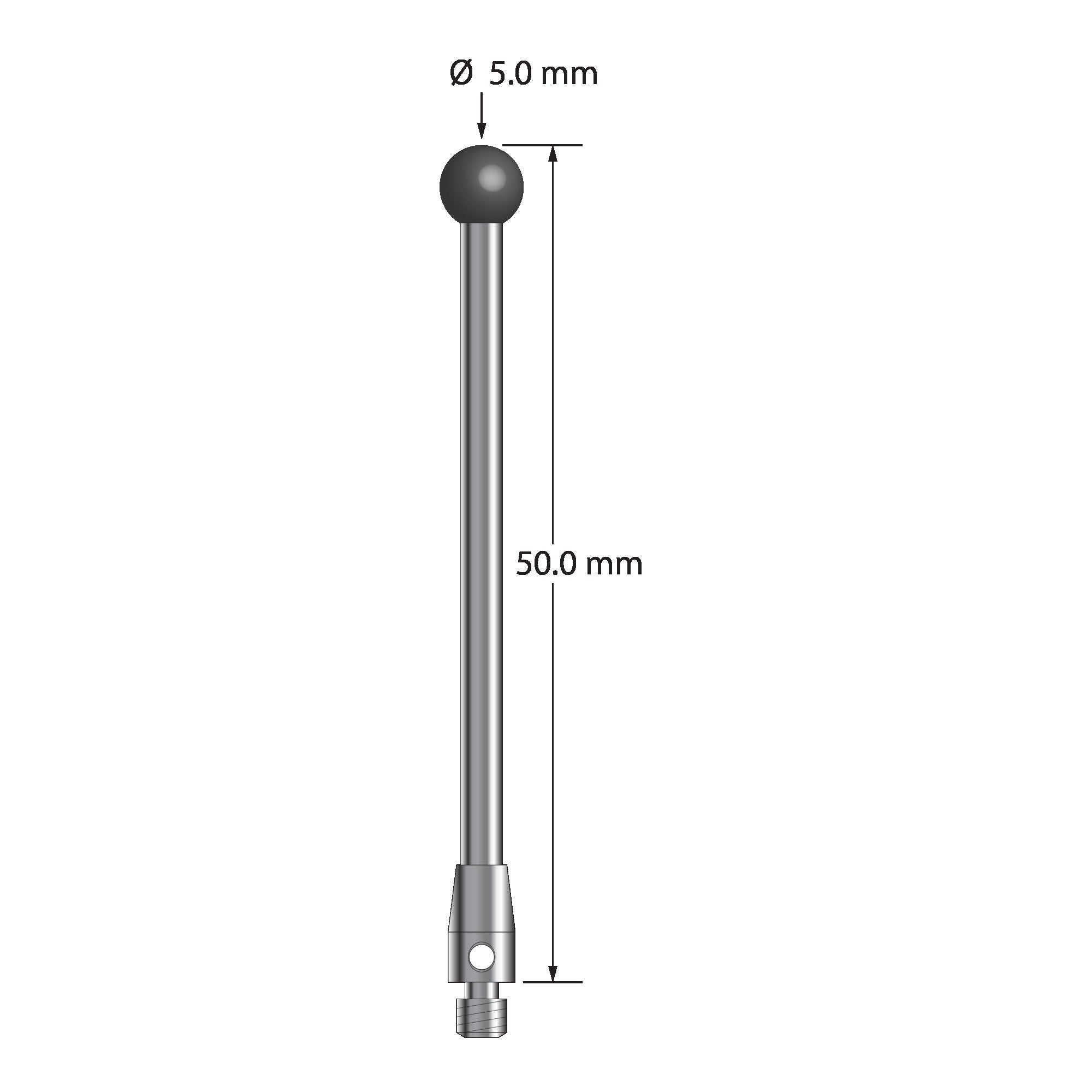

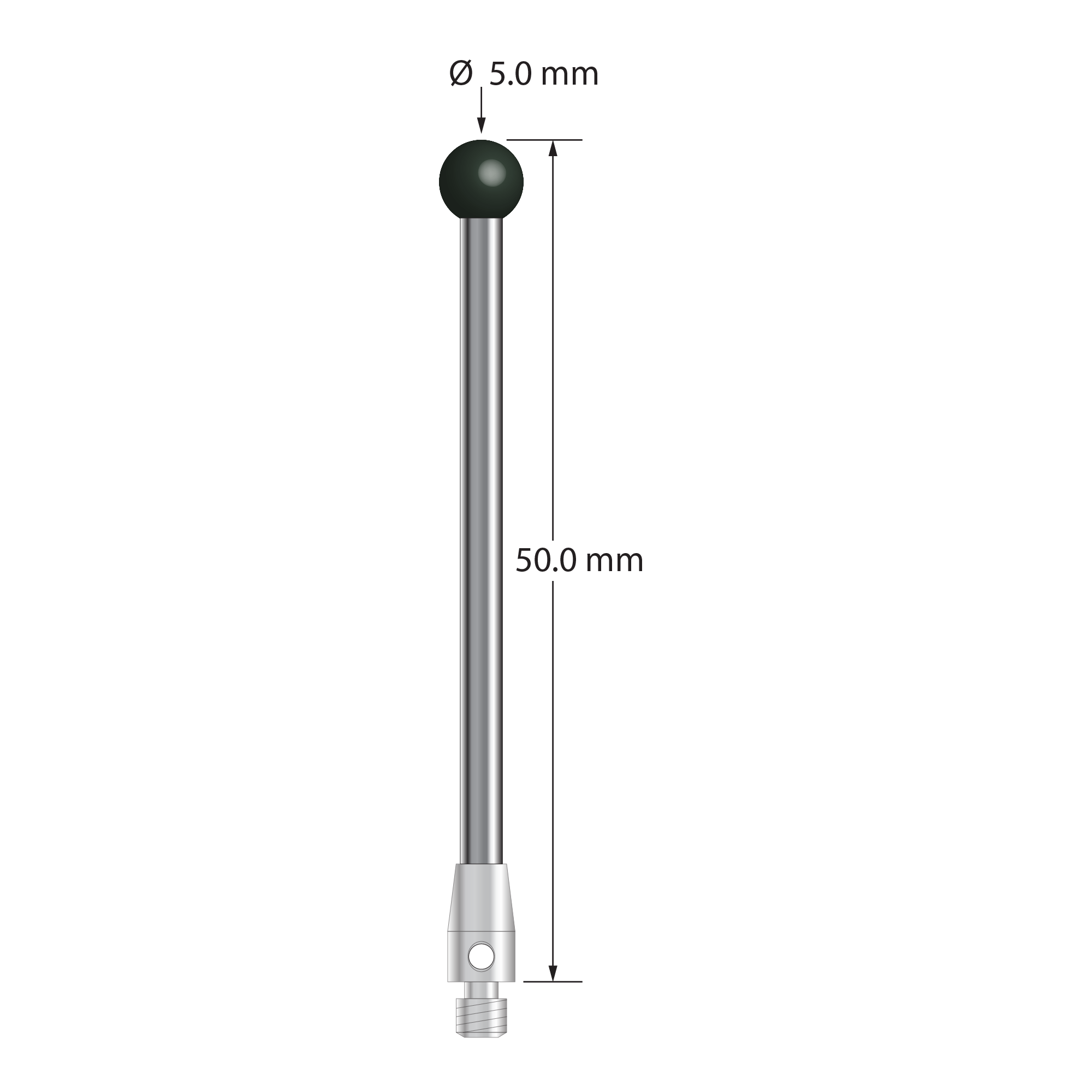

M3 stylus with 5.0 mm diameter silicon nitride ball, 2.5 mm diameter carbide stem, and 4.0 mm diameter x 7.0 mm long stainless steel base. Overall stylus length is 50.0 mm. Stylus weight is 3.40 grams.

Dimensions

ball diameter: 5.0

base diameter: 4.0

length 1: 50.0

length 2: 43.0

stem diameter: 2.5

Materials

ball material: Ruby

base material: Stainless Steel

stem material: Carbide
