TM3-5042.5-Z

$95.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
{% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

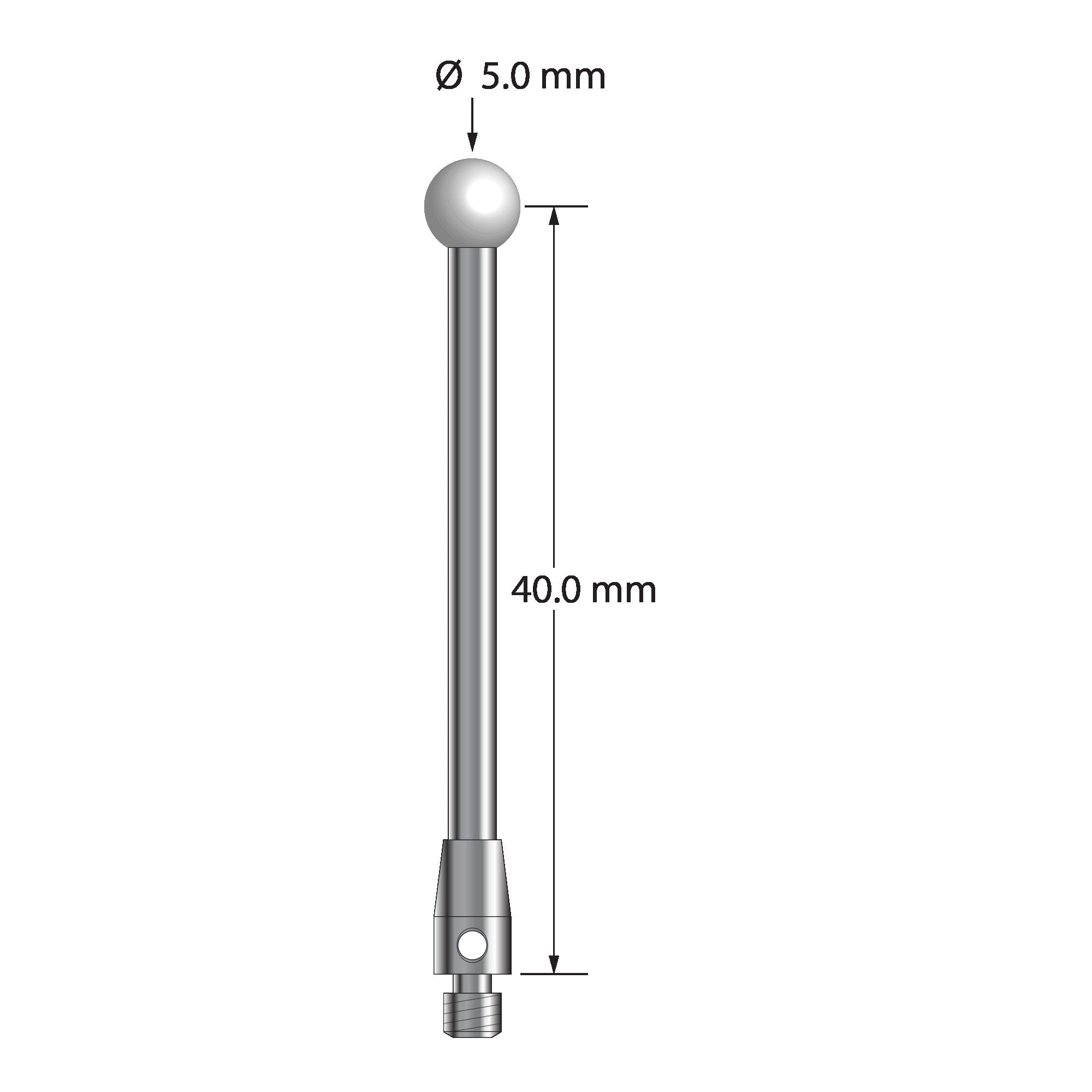

M3 stylus with 5.0 mm diameter zirconia ball, 2.5 mm diameter carbide stem, and 4.0 mm diameter x 7.0 mm long stainless steel base.  Stylus length to ball center is 40.0 mm.  Stylus weight is 2.86 grams.  Compare to Renishaw A-5004-2926.

Dimensions

ball diameter: 5.0
base diameter: 4.0
length 1: 42.5
length 2: 35.5
stem diameter: 2.5

Materials

ball material: Zirconia
base material: Stainless Steel
stem material: Carbide
