Q-Mark Probe Styli: Orders Placed by Noon PT Ship Out Same-Day* | Ultra-Fast Service | Always Guaranteed | Proudly USA Made

TM3-5042.5-SN

Name: TM3-5042.5-SN
Brand: Q-Mark Manufacturing Inc.
Price: 95.0 USD
Availability: InStock

$95.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

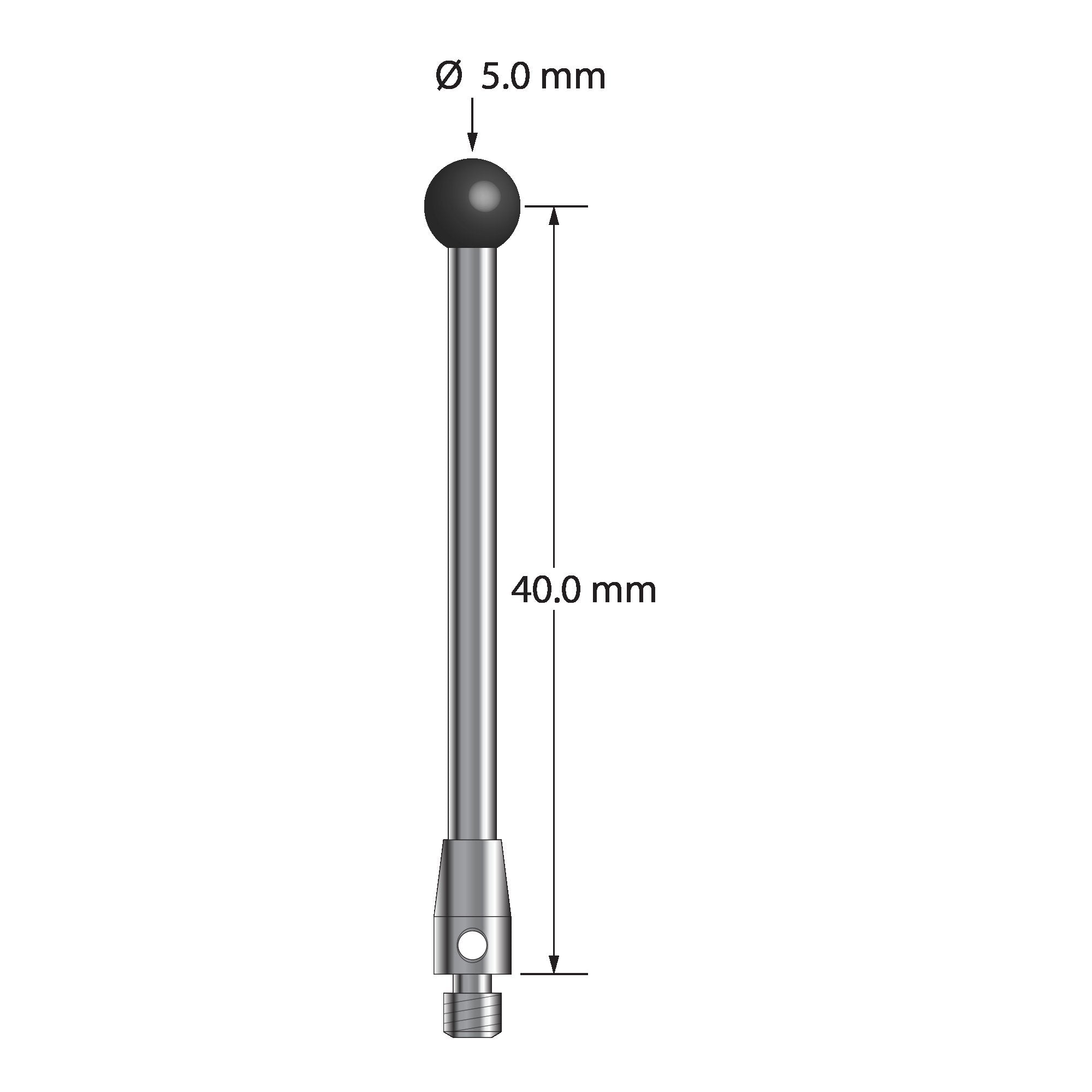

M3 stylus with 5.0 mm diameter silicon nitride ball, 2.5 mm diameter carbide stem, and 4.0 mm diameter x 7.0 mm long stainless steel base. Stylus length to ball center is 40.0 mm. Stylus weight is 2.86 grams.

Dimensions

ball diameter: 5.0

base diameter: 4.0

length 1: 42.5

length 2: 35.5

Materials

ball material: Silicon Nitride

base material: Stainless Steel

stem material: Carbide
