TM3-5033.5-S
TM3-5033.5-S

TM3-5033.5-S

$31.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
 {% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

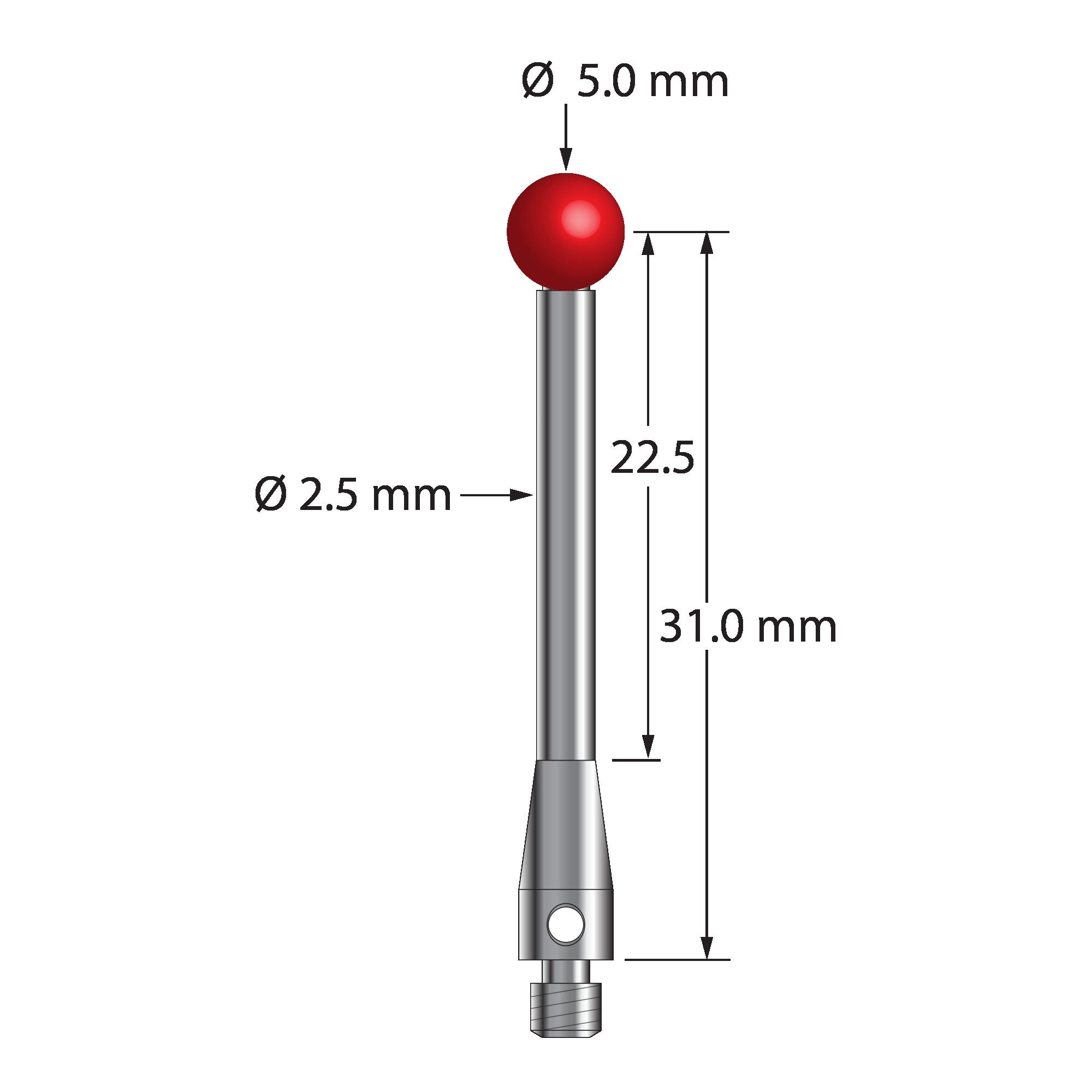

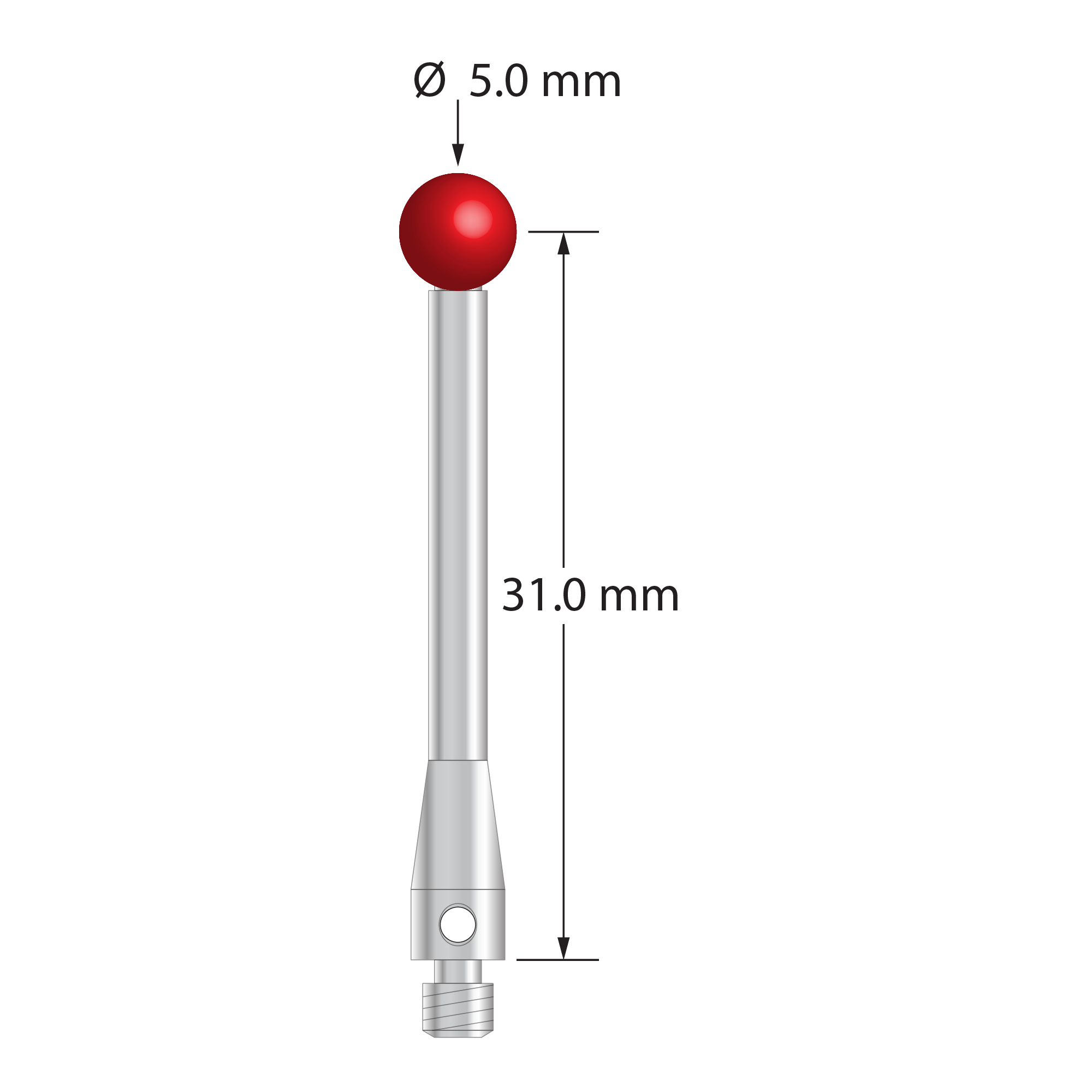

M3 stylus with 5.0 mm diameter ruby ball and stainless steel body. Stylus length to ball center is 31.0 mm.  Weight is 2.18 grams.  Compare to Renishaw A-5000-7648.

Dimensions

ball diameter: 5.0
base diameter: 4.0
length 1: 33.5
length 2: 26.0
stem diameter: 2.5

Materials

ball material: Ruby
base material: Stainless Steel
stem material: Stainless Steel
